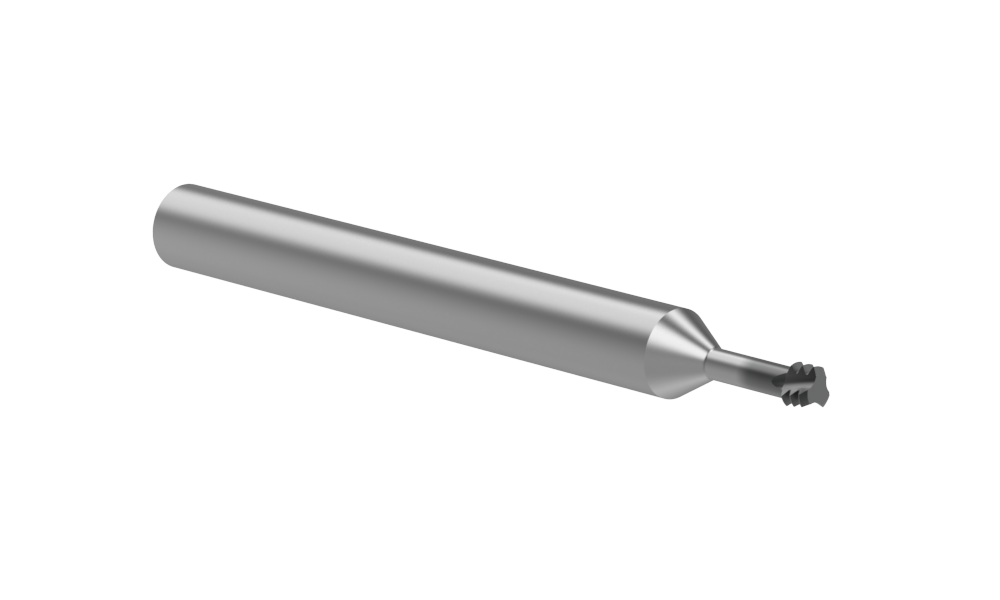

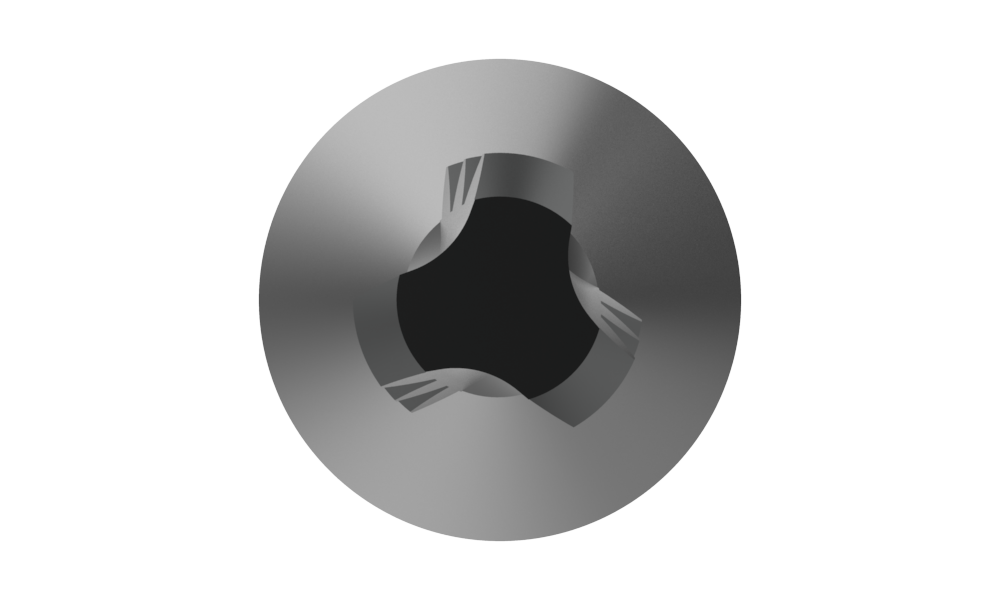

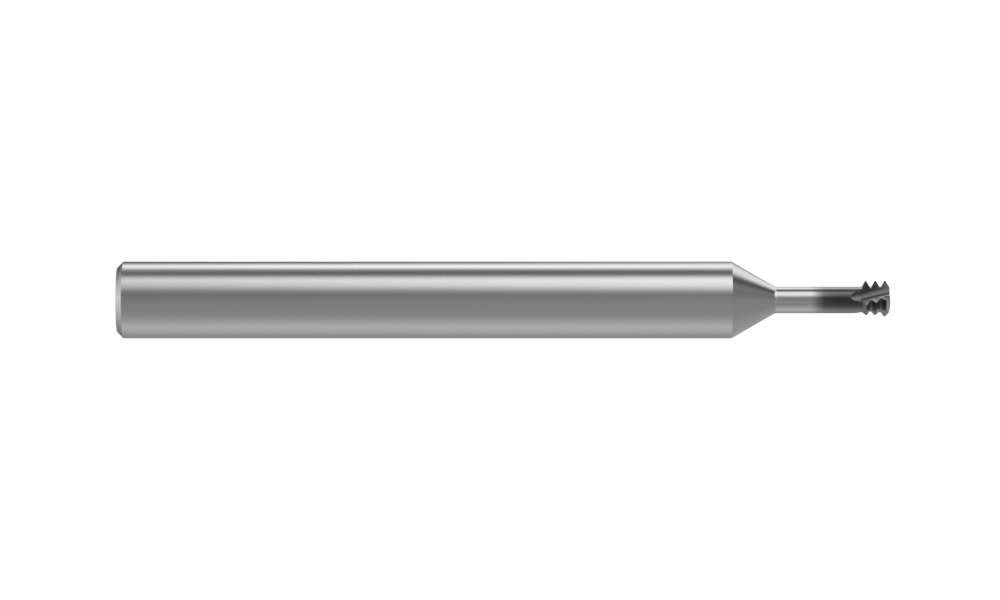

TM16432-3T2X
3T UN 32 2XD 1/4 SHK
AccuThread® T3






Product Specifications
Thread StyleInternal/External
Depth to Diameter2X
Weldon FlatNo
MaterialCarbide
Shank diameter inch0.25
Pitch32
Overall length inch2.5
Number of Flutes3
CoatingAM210®
Shank typeCylindrical
Type of ProductSolid Carbide Threadmill
Minimum Thread Size#8
Length of cut inch0.37
Flute TypeHelical
Cutting directionLeft Hand (M04)
Thread StandardUN
Cutter Diameter inch0.126
Coolant ThroughNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.06
CategoryStocked
