TM16432M-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 32, #8, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

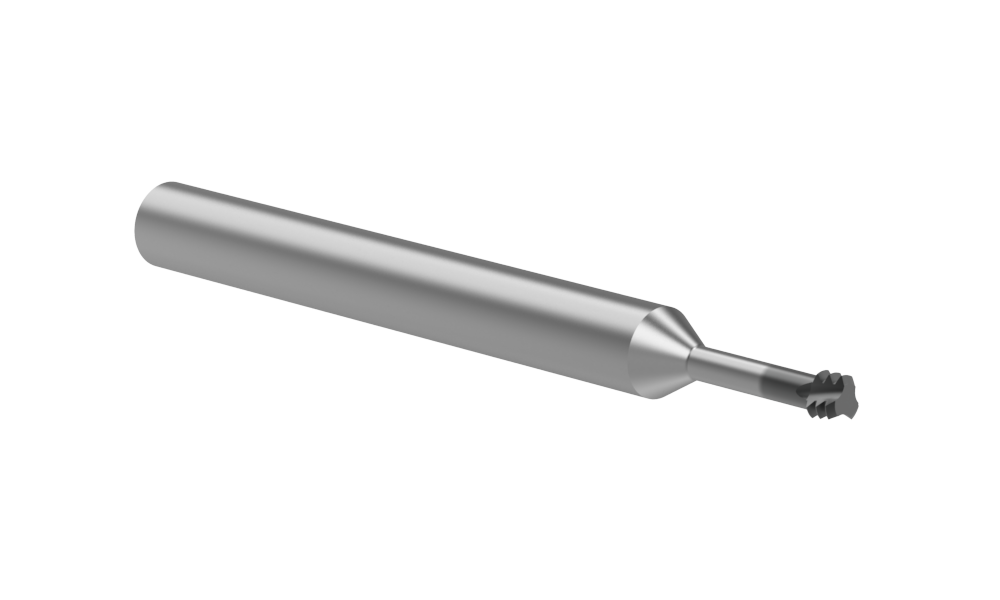

Angle

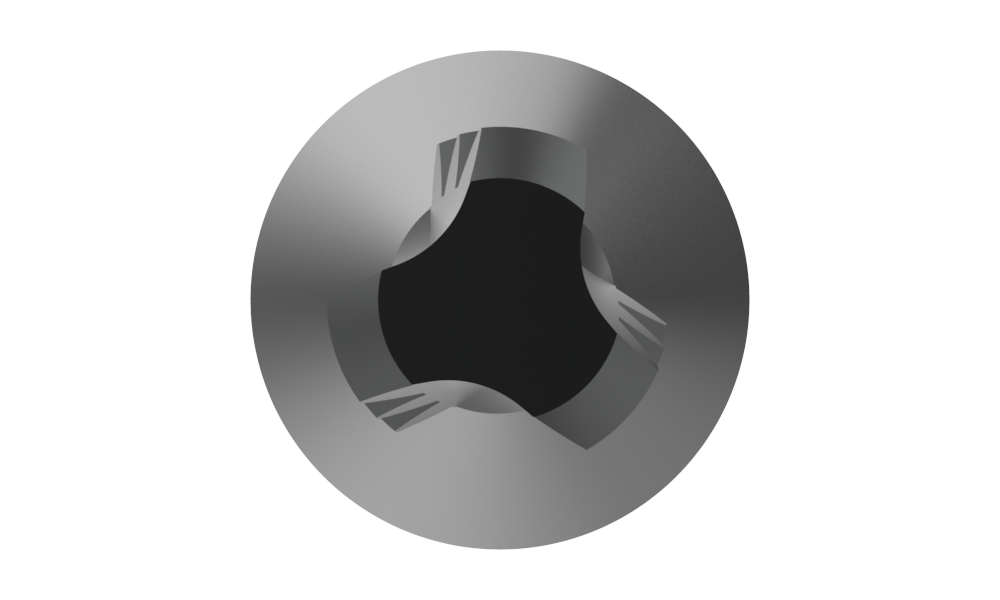

Front

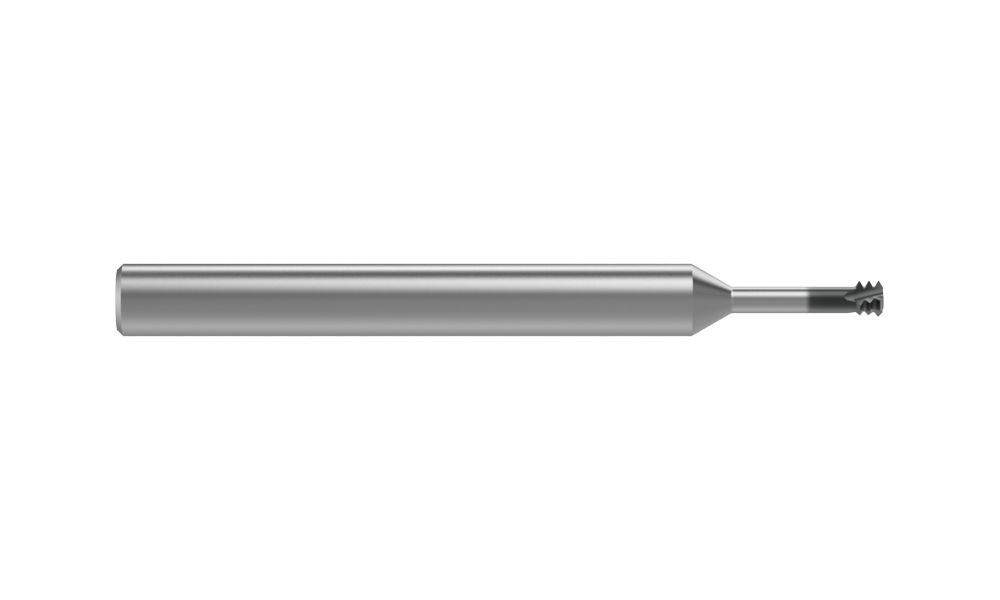

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat No
Material Carbide
Overall length mm 63
Pitch 32
Number of Flutes 3
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size #8
Cutter Diameter mm 3.2
Length of cut mm 12.45
Shank diameter mm 6
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard UN
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
