TM18035M-3T2X
AccuThread® T3 Solid Carbide Threadmill: ISO 0.35, M1.8, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

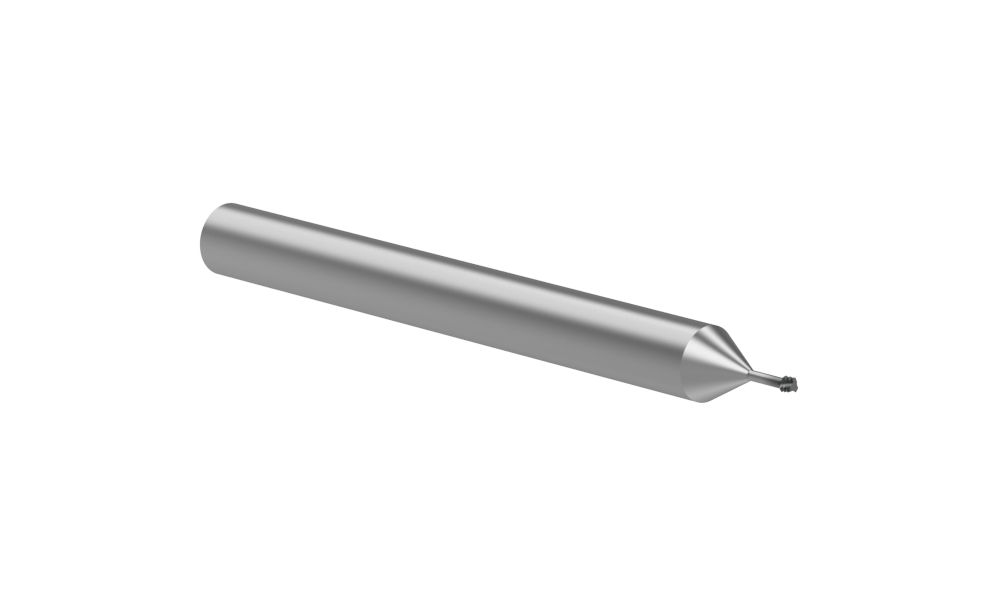

Angle

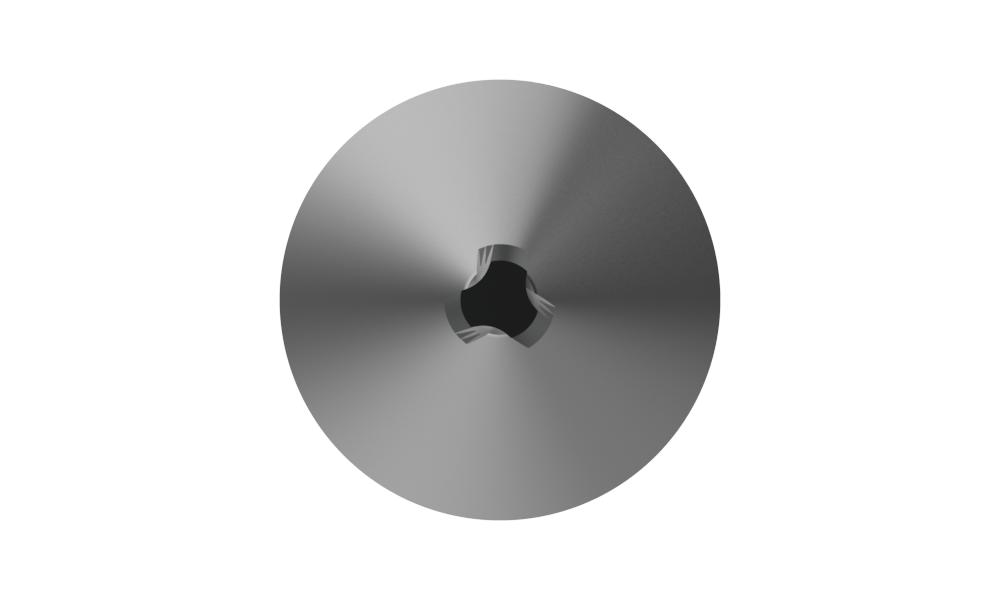

Front

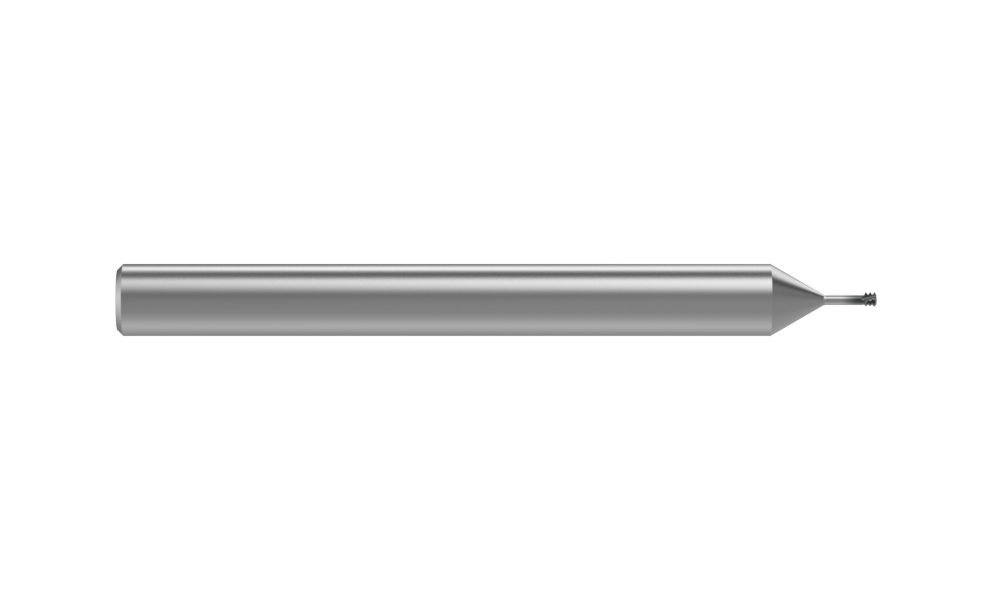

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 2X
Weldon Flat No
Material Carbide
Overall length mm 63.00
Pitch 0.35
Number of Flutes 3
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M1.8
Cutter Diameter mm 1.35
Length of cut mm 4.32
Shank diameter mm 6
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard ISO
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
