TM20250M-3T2X
AccuThread® T3 Solid Carbide Threadmill: ISO 2.5, M20, Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

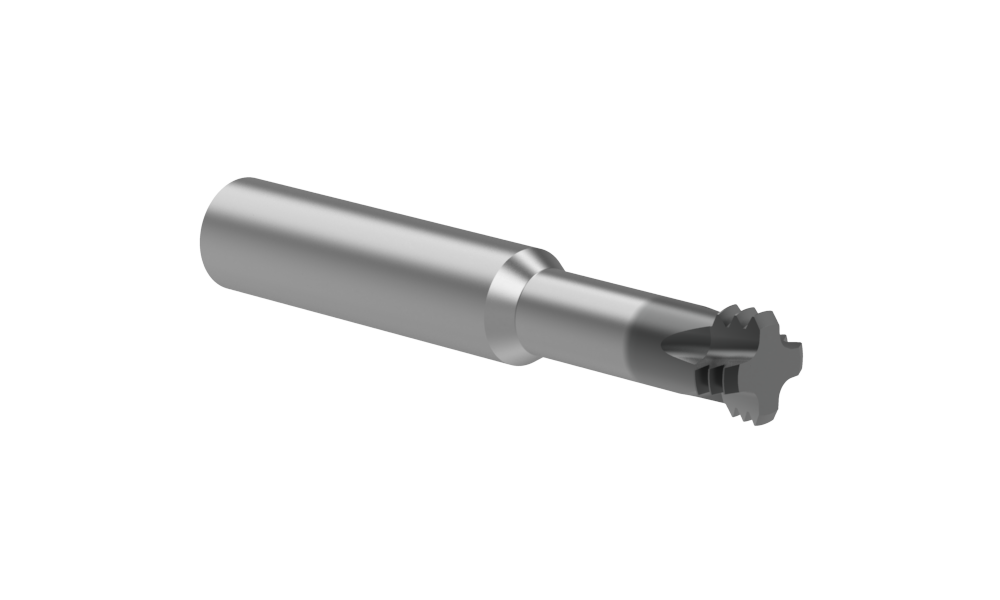

Angle

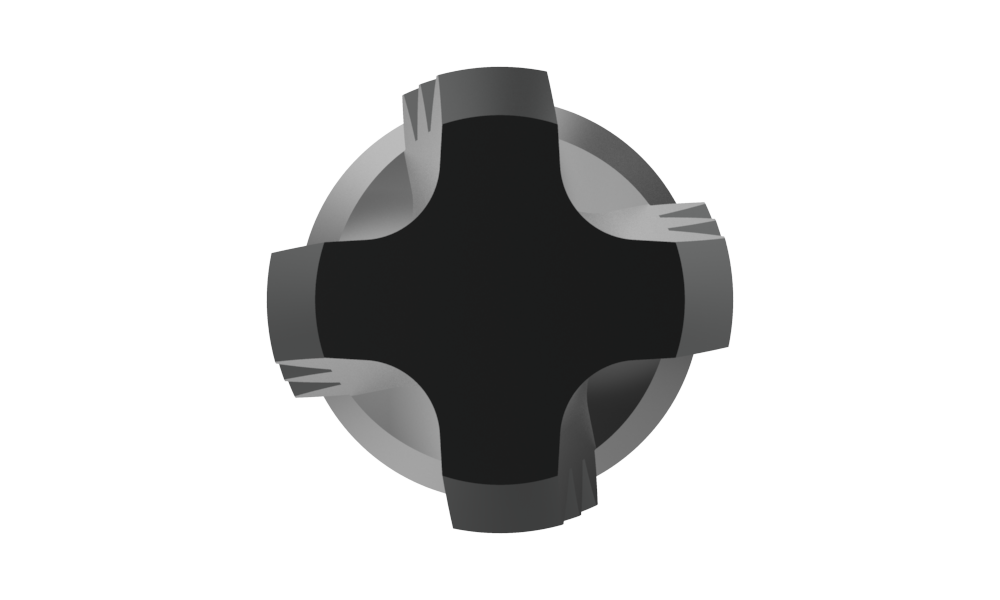

Front

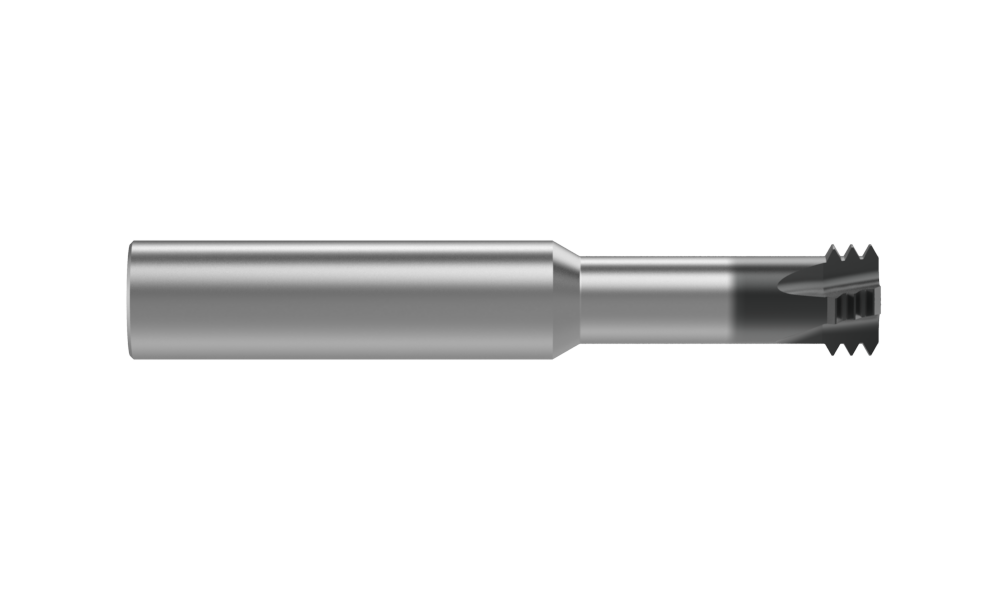

Side
Product Specifications
Shank Diameter (mm) 16
Pitch 2.5
Cutter Diameter (mm) 14.99
Flute Type Helical
Material Carbide
Coating AM210®
Coolant Through No
Overall Length (mm) 100
Length of Cut (mm) 39.88
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.53
Weight in kg (each) 0.24
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.015 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.031 lbs
Recycleable? Yes
Contains PFAS? No
