TM27NPTFCHM
ThreadMills USA® Solid Carbide Threadmill: NPTF 27, 1/16" and 1/8", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

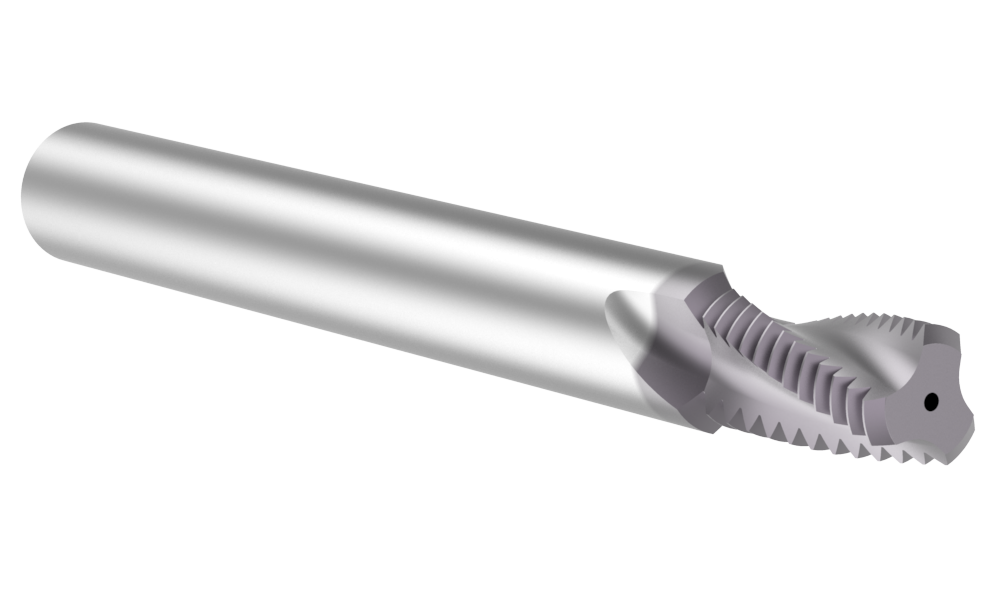

Angle

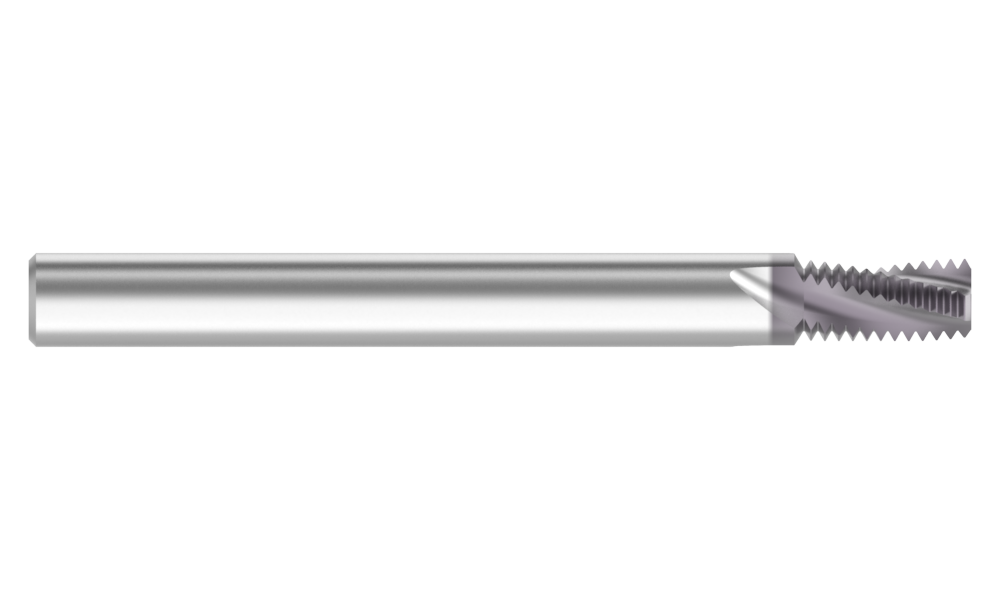

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length mm 58
Shank diameter mm 6
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 1/16" and 1/8"
Pitch 27
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter mm 5.95
Length of cut mm 11.3
Coolant Through Yes
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
