TM40070
ThreadMills USA® Solid Carbide Threadmill: ISO 0.7, M4, Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

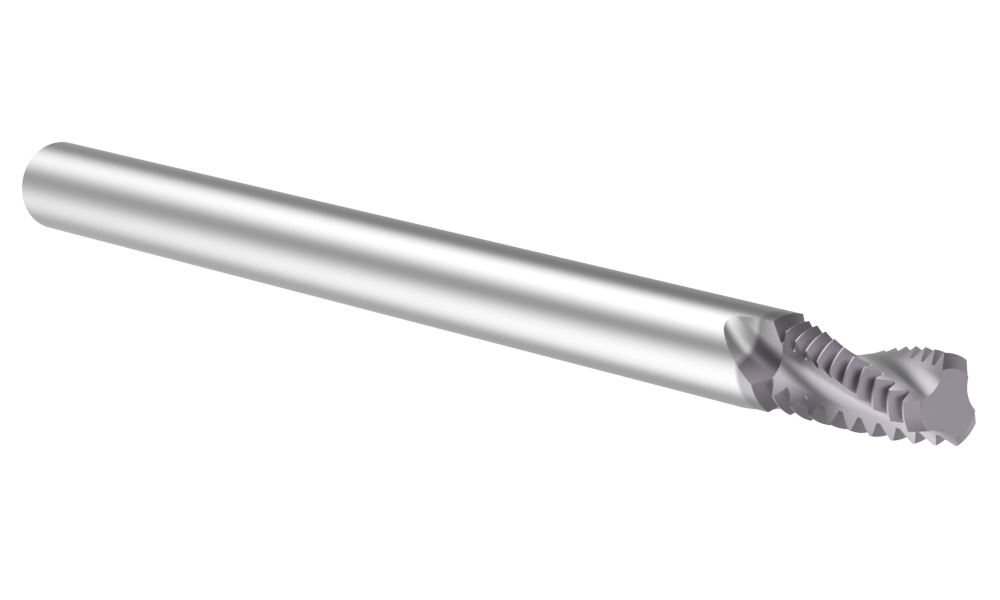

Angle

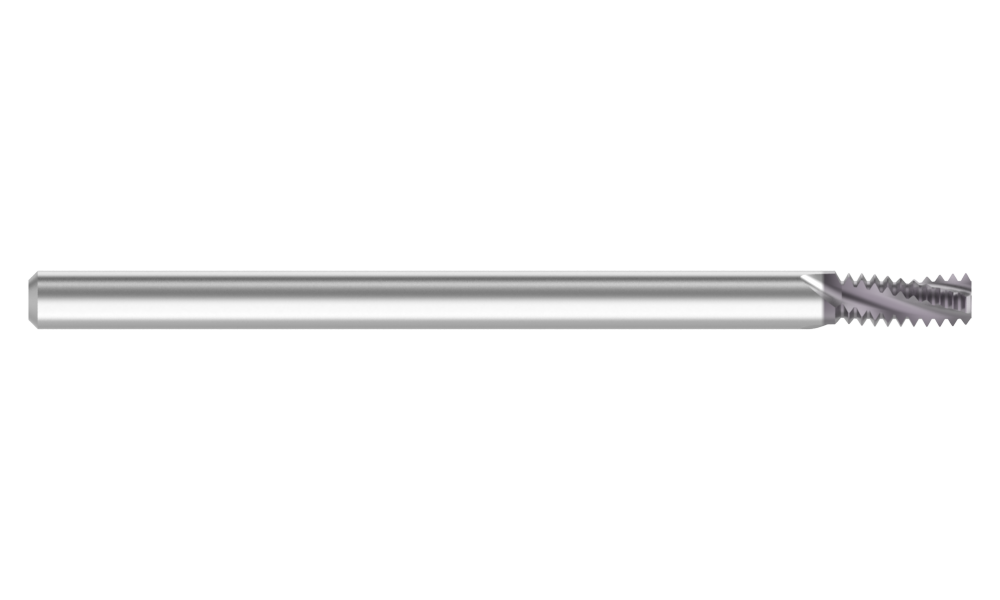

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 2
Shank diameter inch 0.125
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M4
Pitch 0.7
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter inch 0.115
Length of cut inch 0.276
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.01
Weight in kg (each) 0
Category Stocked
