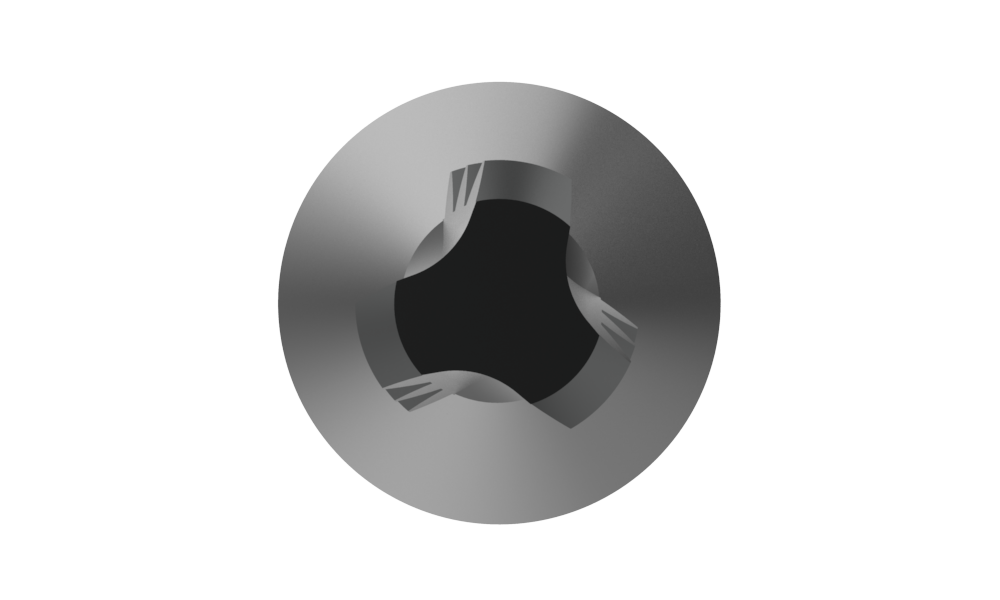

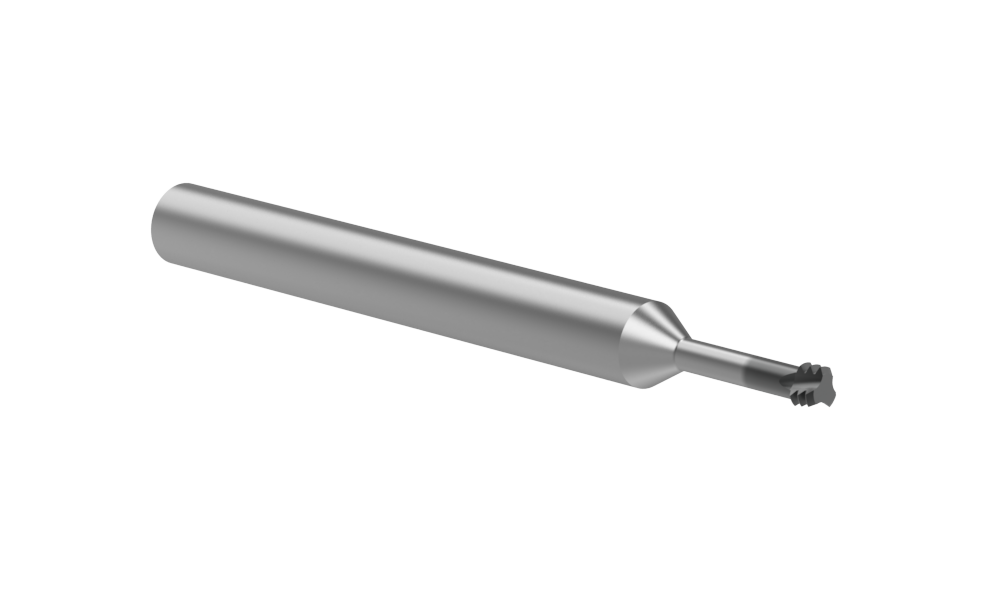

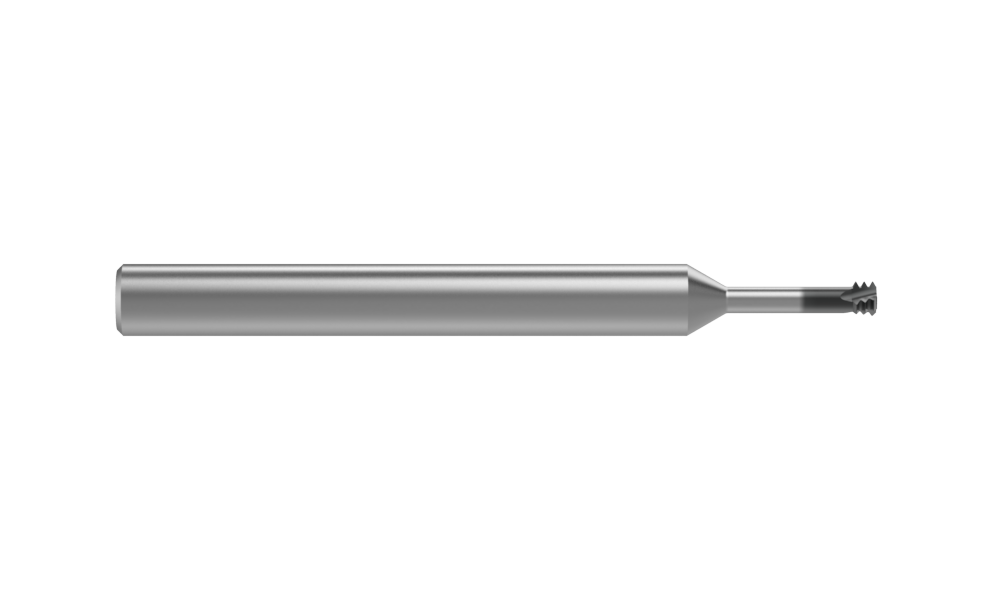

TM40070M-3T3X
3T ISO 0.70 3XD 6MM SHK
AccuThread® T3






Product Specifications
Thread StyleInternal/External
Depth to Diameter3X
Weldon FlatNo
MaterialCarbide
Overall length mm63.00
Pitch0.70
Number of Flutes3
CoatingAM210®
Shank typeCylindrical
Type of ProductSolid Carbide Threadmill
Minimum Thread SizeM4
Cutter Diameter mm3.10
Length of cut mm12.40
Shank diameter mm6.00
Flute TypeHelical
Cutting directionLeft Hand (M04)
Thread StandardISO
Coolant ThroughNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.05
CategoryStocked
