TM45075M-3T2X
AccuThread® T3 Solid Carbide Threadmill: ISO 0.75, M4.5, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

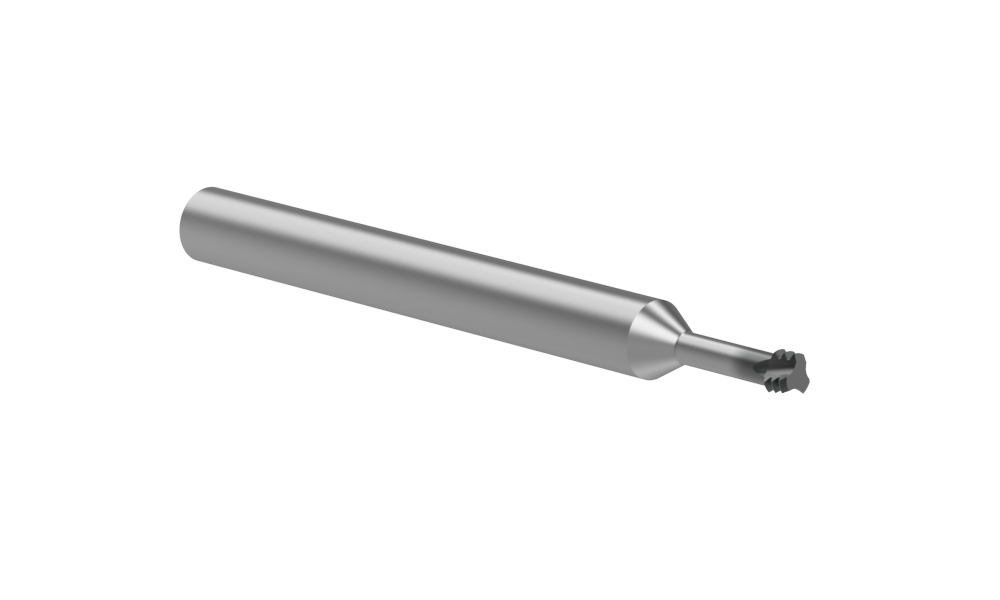

Angle

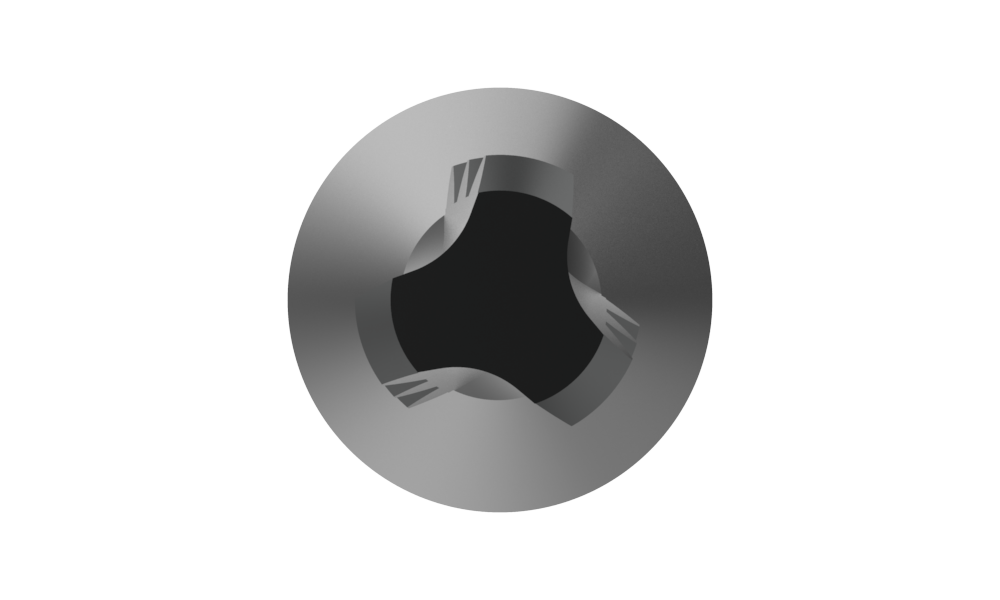

Front

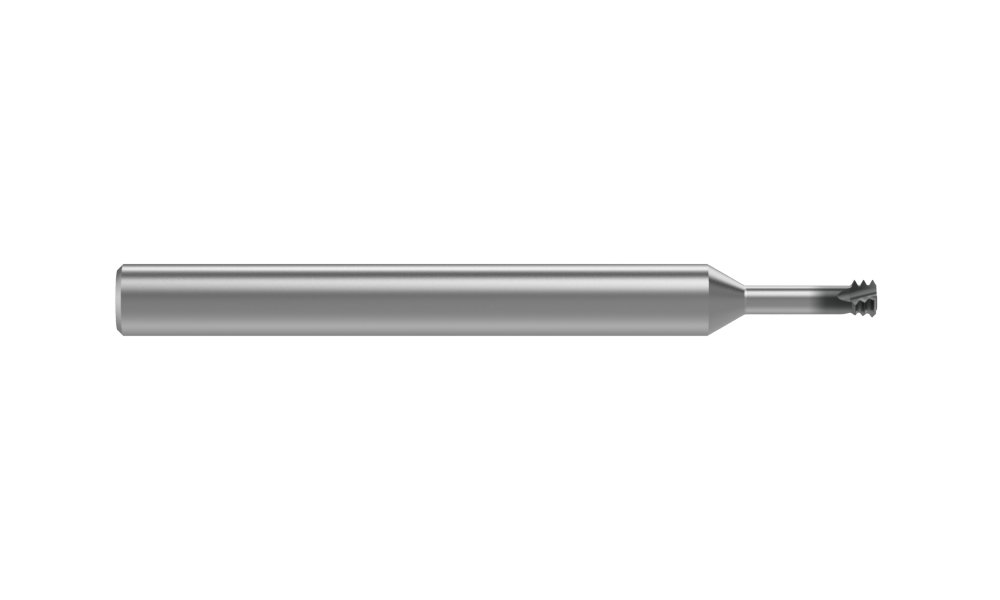

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 2X
Weldon Flat (Yes/No) No
Material Carbide
Overall Length (mm) 63
Pitch 0.75
Number of Flutes 3
Coating AM210®
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M4.5
Cutter Diameter (mm) 3.38
Length of Cut (mm) 10.92
Shank Diameter (mm) 6
Flute Type Helical
Cutting Direction Left Hand (M04)
Thread Standard ISO
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
