TM60100

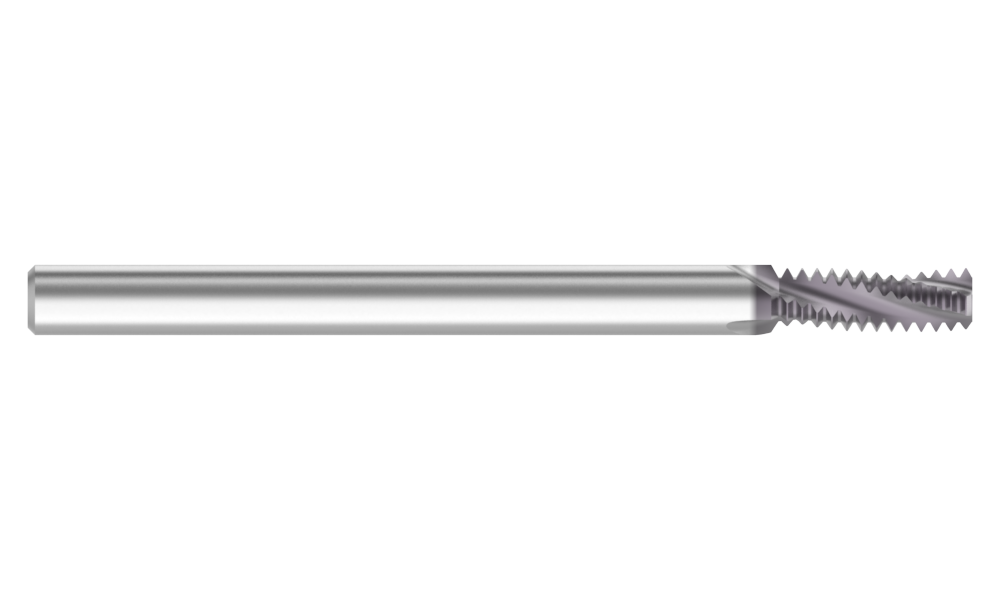

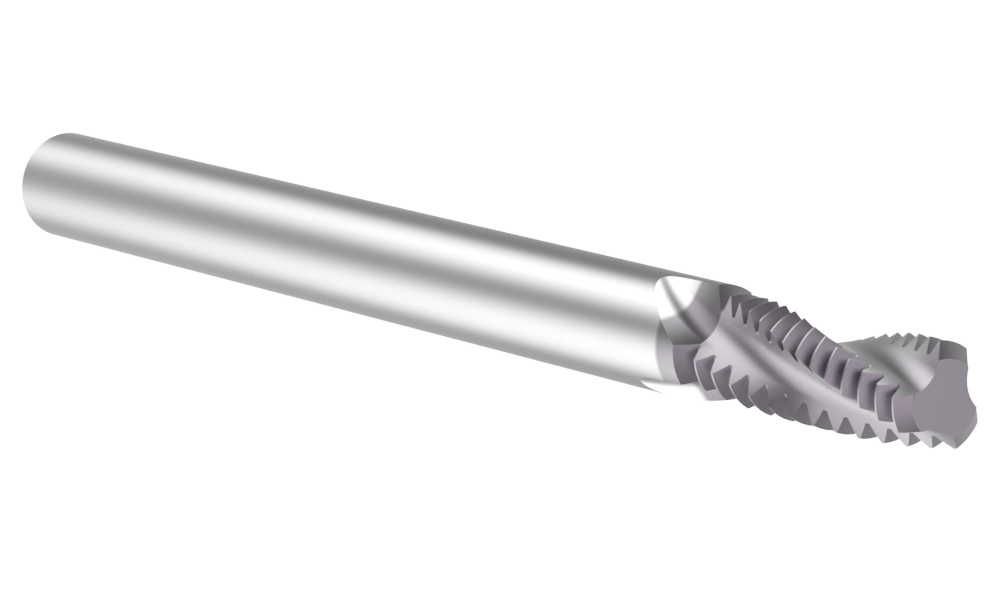

ThreadMills USA® Solid Carbide Threadmill: ISO 1, M6, Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 2.5
Shank diameter inch 0.187
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M6
Pitch 1
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter inch 0.17
Length of cut inch 0.5
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.03
Weight in kg (each) 0.01
Category Stocked
