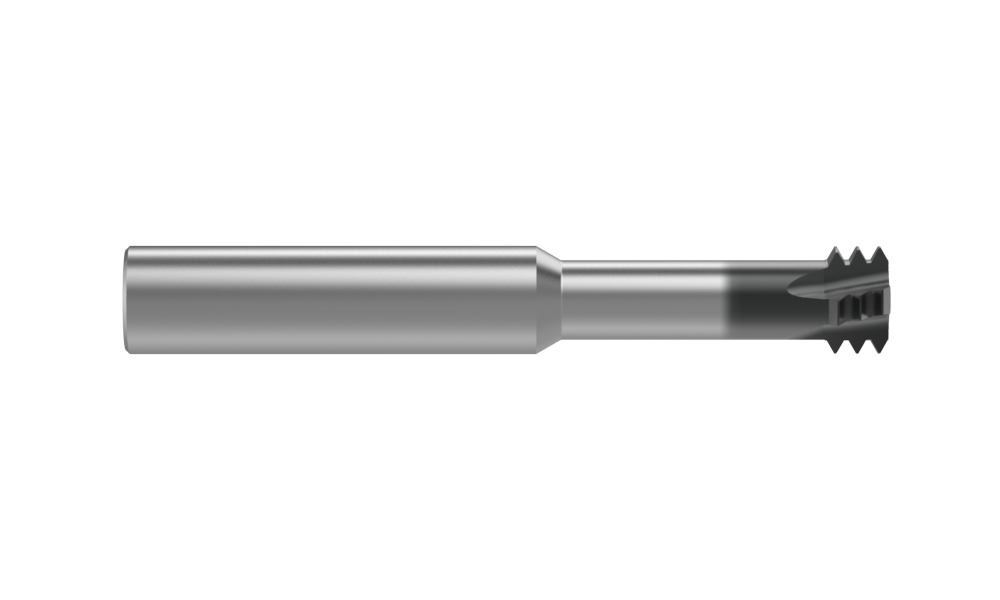

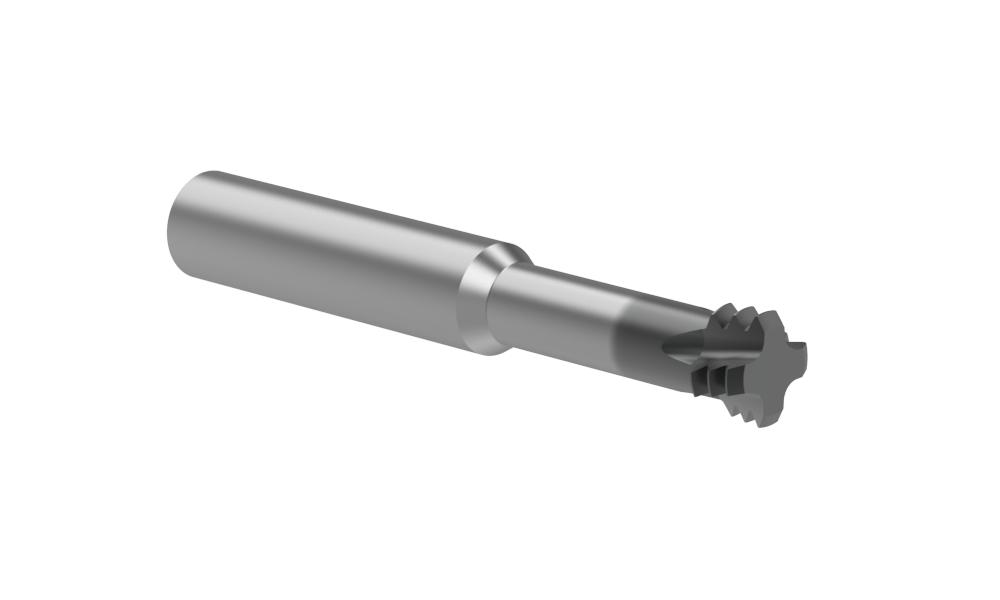

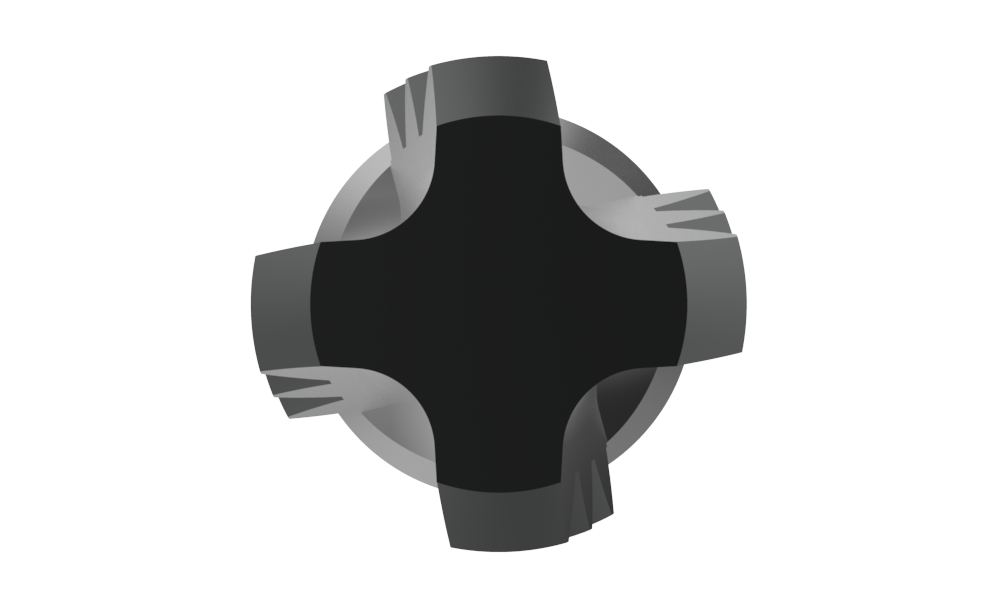

TM75010-3T2X
3T UN 10 2XD 1/2 SHK
AccuThread® T3






Product Specifications
Thread StyleInternal/External
Depth to Diameter2X
Weldon FlatNo
MaterialCarbide
Shank diameter inch0.5
Pitch10
Overall length inch3.5
Number of Flutes4
CoatingAM210®
Shank typeCylindrical
Type of ProductSolid Carbide Threadmill
Minimum Thread Size3/4"
Length of cut inch1.5
Flute TypeHelical
Cutting directionLeft Hand (M04)
Thread StandardUN
Cutter Diameter inch0.495
Coolant ThroughNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.29
CategoryStocked
