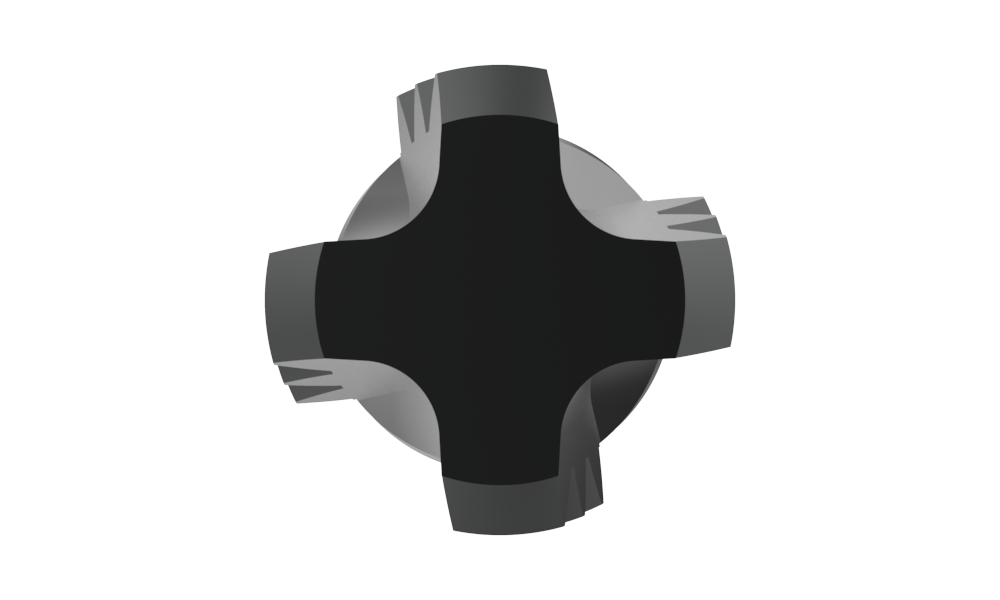

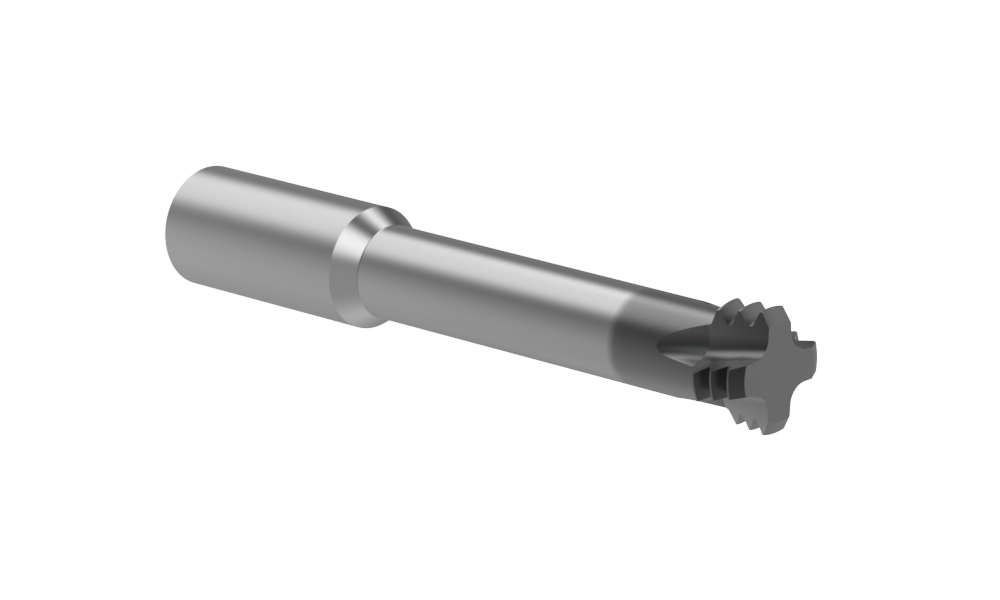

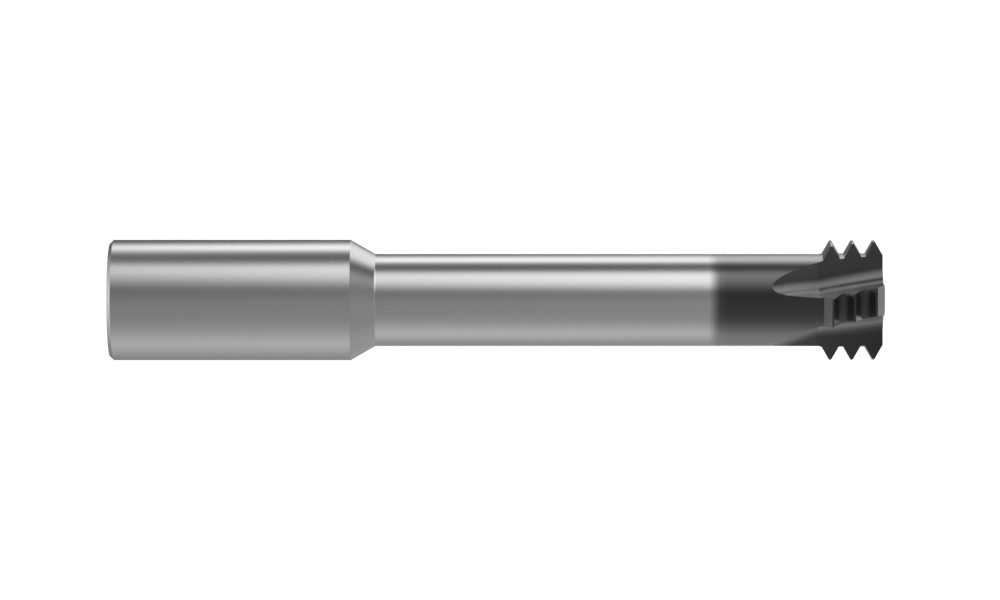

TM87509-3T3X
3T UN 9 3XD 5/8 SHK
AccuThread® T3






Product Specifications
Thread StyleInternal/External
Depth to Diameter3X
Weldon FlatNo
MaterialCarbide
Shank diameter inch0.625
Pitch9
Overall length inch4.5
Number of Flutes4
CoatingAM210®
Shank typeCylindrical
Type of ProductSolid Carbide Threadmill
Minimum Thread Size7/8"
Length of cut inch2.625
Flute TypeHelical
Cutting directionLeft Hand (M04)
Thread StandardUN
Cutter Diameter inch0.62
Coolant ThroughNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.47
CategoryStocked
