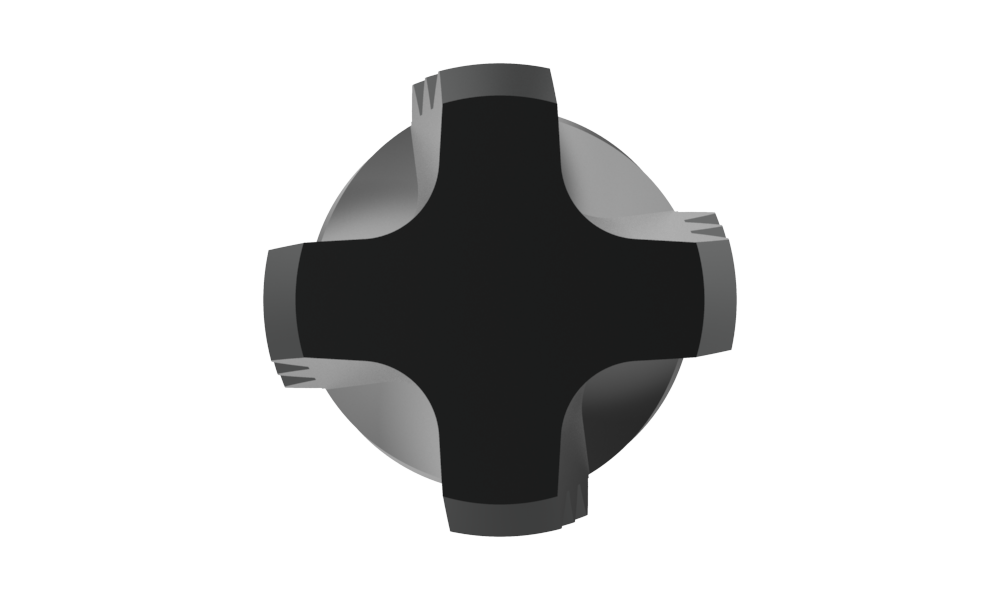

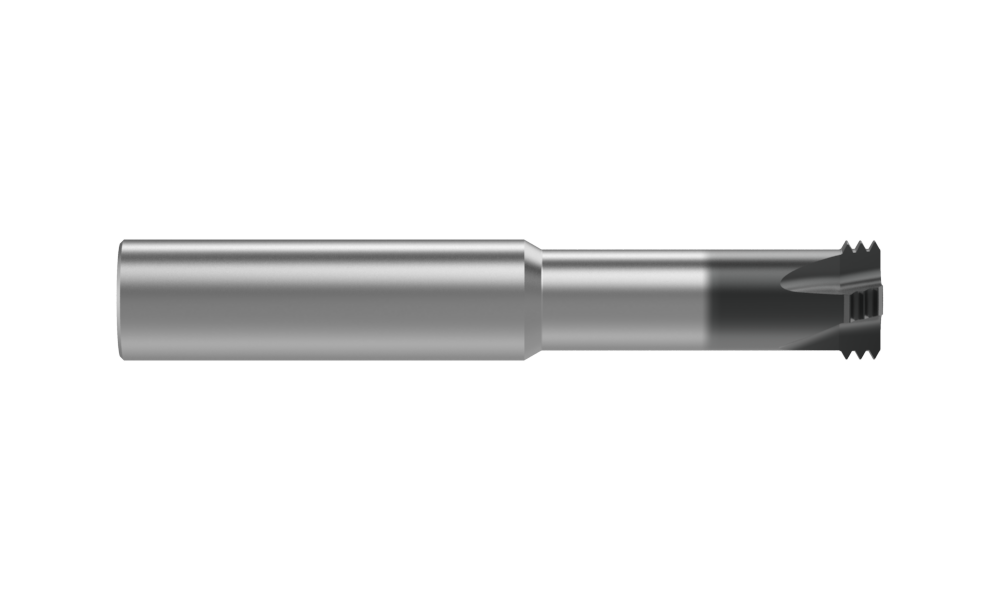

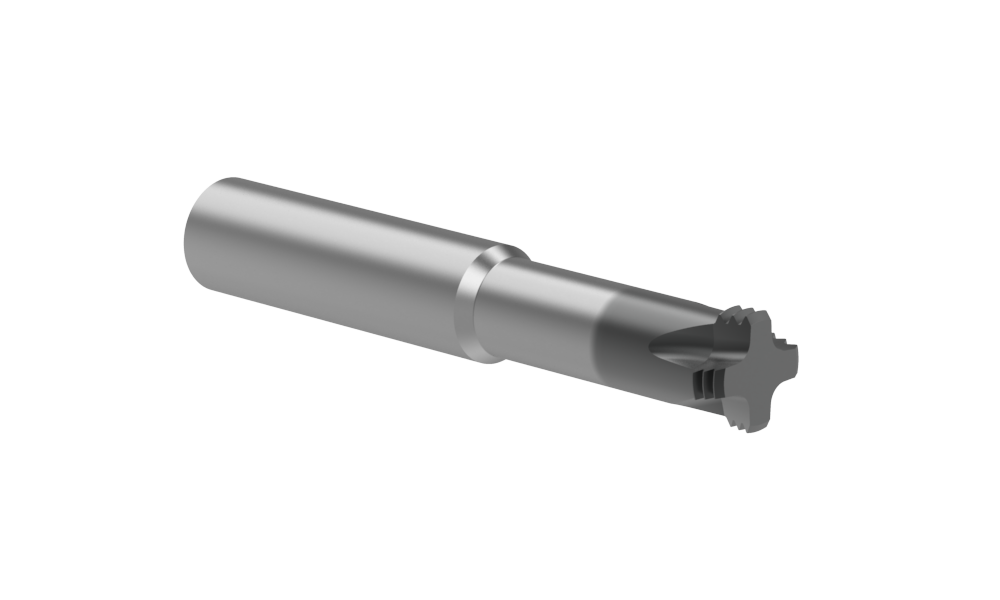

TM87514M-3T2X
3T UN 14 2XD 16MM SHK
AccuThread® T3






Product Specifications
Thread StyleInternal/External
Depth to Diameter2X
Weldon FlatNo
MaterialCarbide
Overall length mm100
Pitch14
Number of Flutes4
CoatingAM210®
Shank typeCylindrical
Type of ProductSolid Carbide Threadmill
Minimum Thread Size7/8"
Cutter Diameter mm15.748
Length of cut mm44.45
Shank diameter mm16
Flute TypeHelical
Cutting directionLeft Hand (M04)
Thread StandardUN
Coolant ThroughNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.56
CategoryStocked
