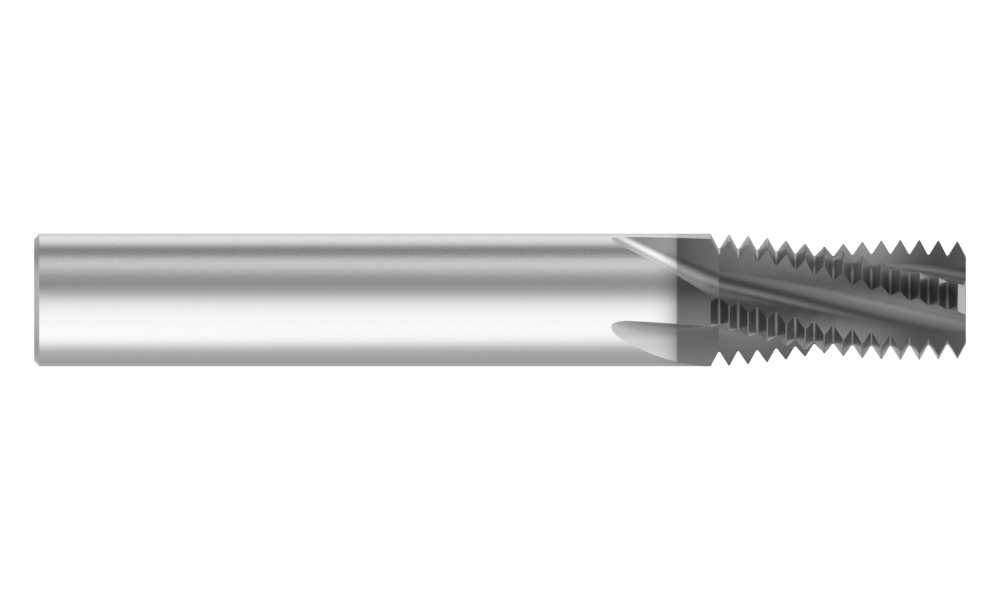

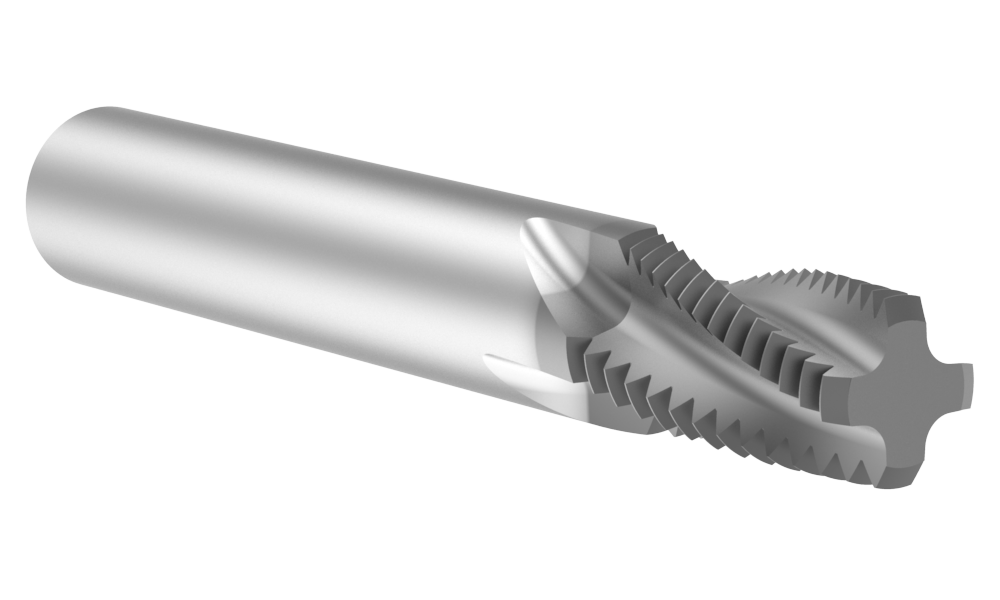

TMNK0500-NPTM
NPT 4F 11.9MM 23.7MM AM210 M/S
AccuThread® 856 Solid






Product Specifications
Type of ProductSolid Carbide Threadmill
Overall length mm84
Shank diameter mm12
Shank typeCylindrical
CoatingAM210®
MaterialCarbide
Flute TypeHelical
Thread StandardNPT
Minimum Thread Size1/2" and 3/4"
Pitch14
Number of Flutes4
Thread StyleInternal/External
Cutter Diameter mm11.95
Length of cut mm23.7
Weldon FlatNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.25
CategoryStocked
