X1926-060-075F
#0 ACCUPORT -06 EXT PILOT

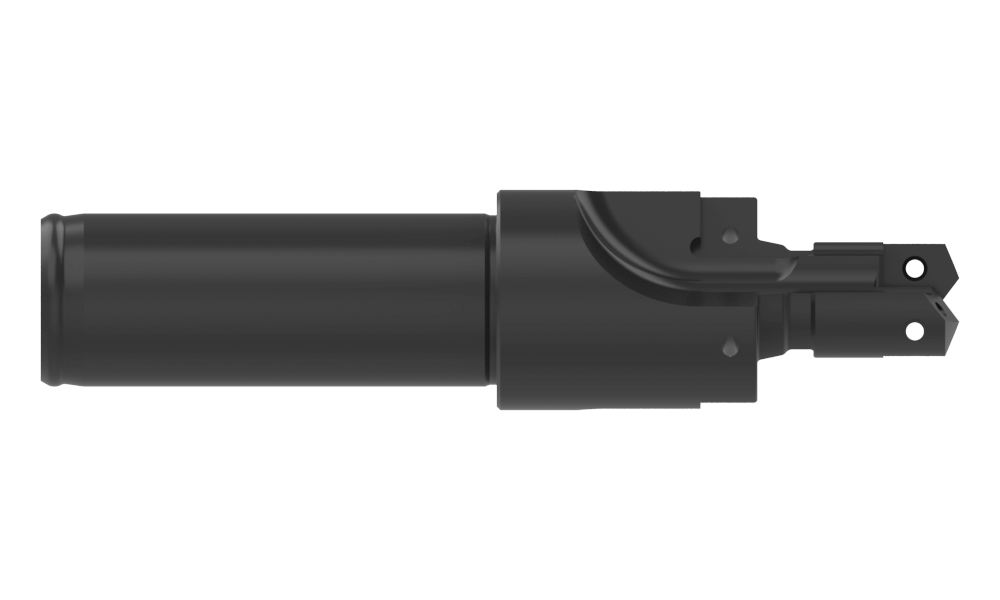

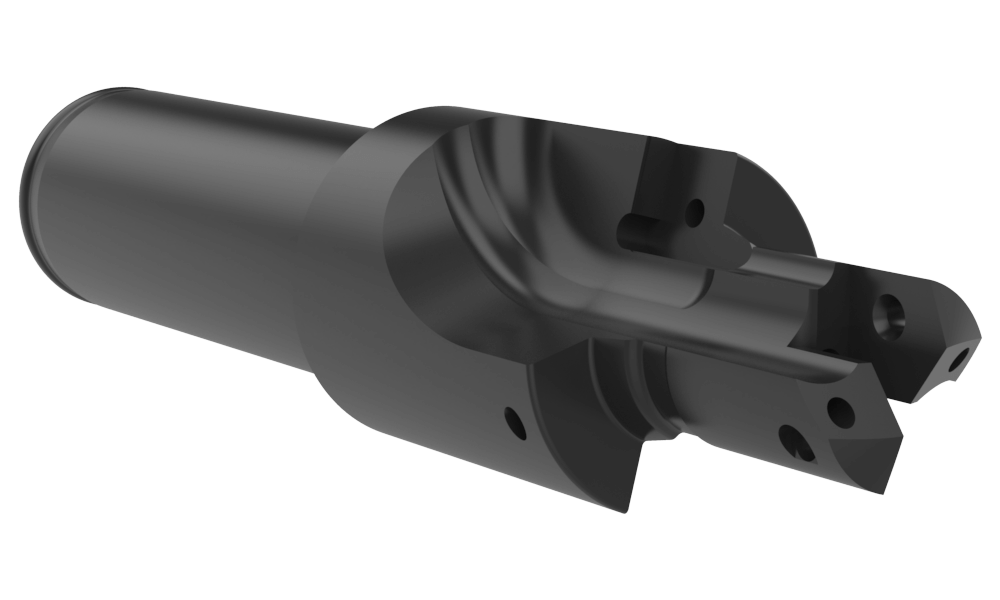

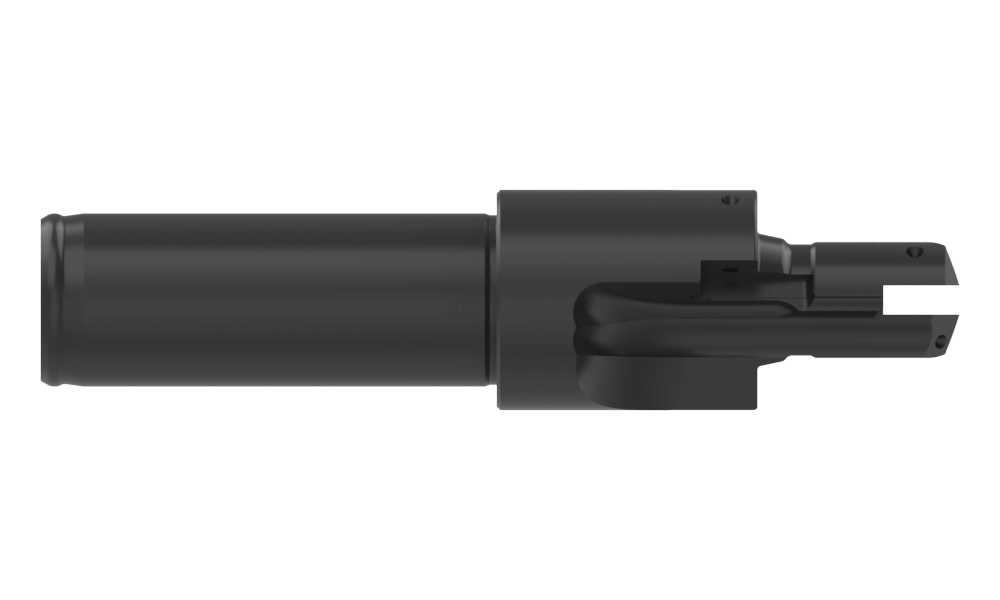

AccuPort 432® Holder






Product Specifications
Type of ProductReplaceable Port Form Body
Series0
Overall length inch4.07
Overall length mm103.5
Pipe tap rear inch1/8
Shank diameter mm19.1
Shank diameter inch0.75
Shank length mm50
Shank length inch1.969
Shank typeCylindrical
Pilot Diameter mm13
Pilot Diameter inch0.512
Pilot length mm21.8
Pilot length inch0.86
Tool Reference Length mm53.5
Tool Reference Length inch2.107
Port StandardSAE J-1926
Tube Size-6
Port thread size9/16-18 UNF-2B
Spotface diameter mm25.1
Spotface diameter inch0.989
Seal angle12°
Seal angle diameter mm15.7
Seal angle diameter inch0.618
Seal angle length mm2.7
Seal angle length inch0.106
Spotface to shoulder length inch1.144
Spotface to shoulder length mm29
Minor Diameter Insert Carbide4C10H-13
Minor Diameter Insert Super Cobalt450H-13
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.42
CategoryStocked
