4TEX™ Drill - COMING SOON

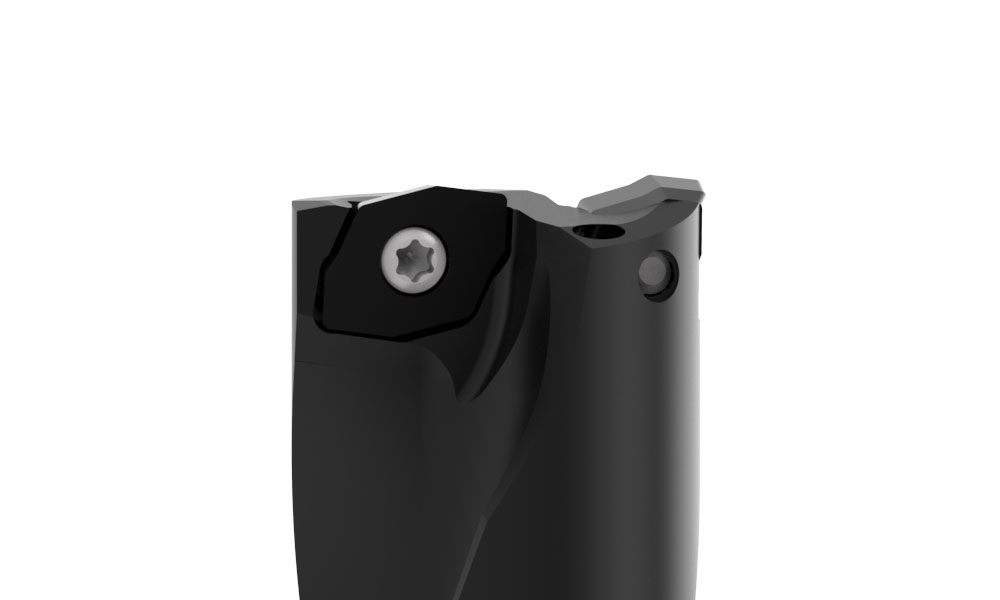

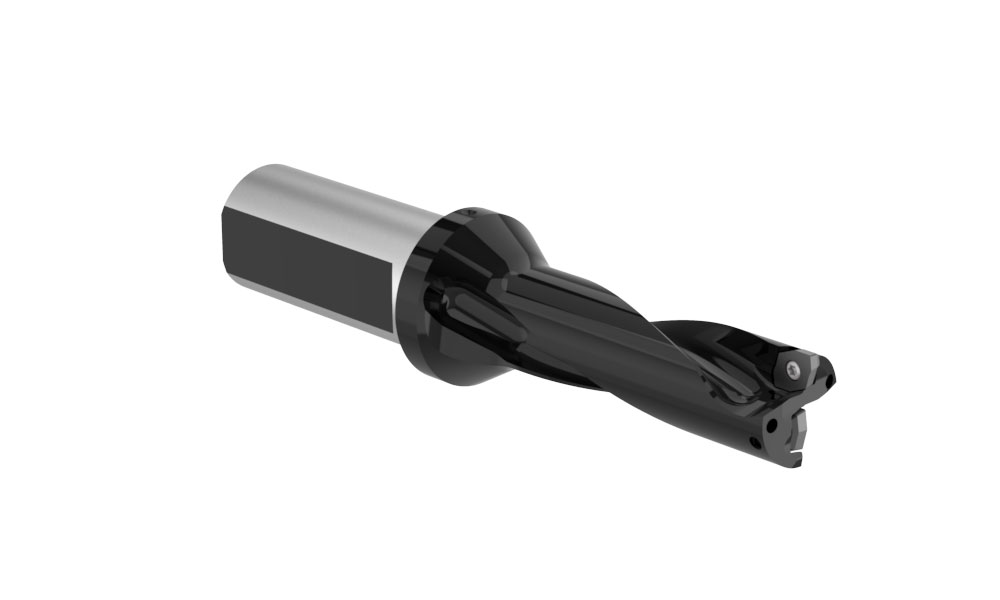

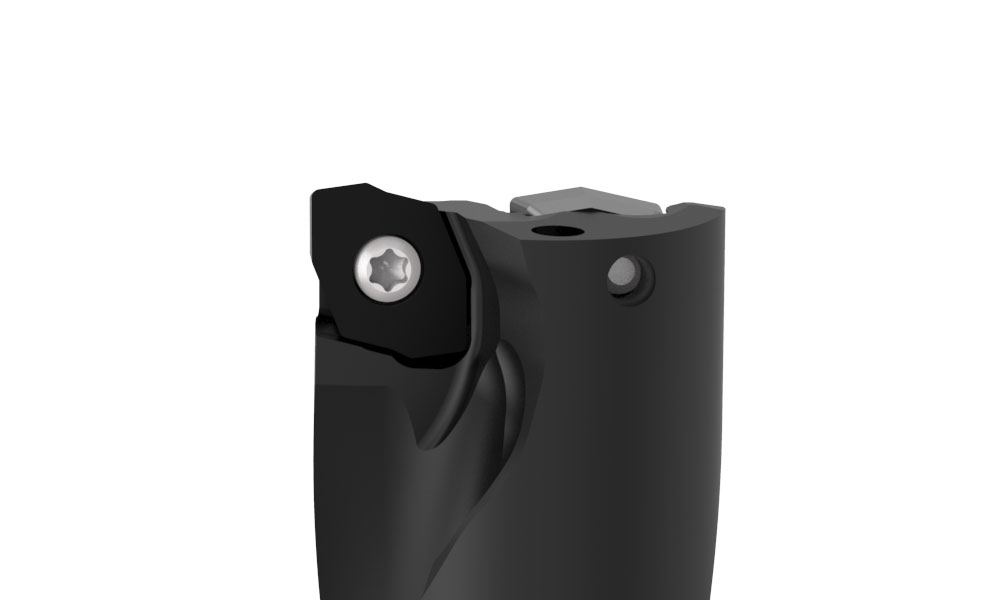

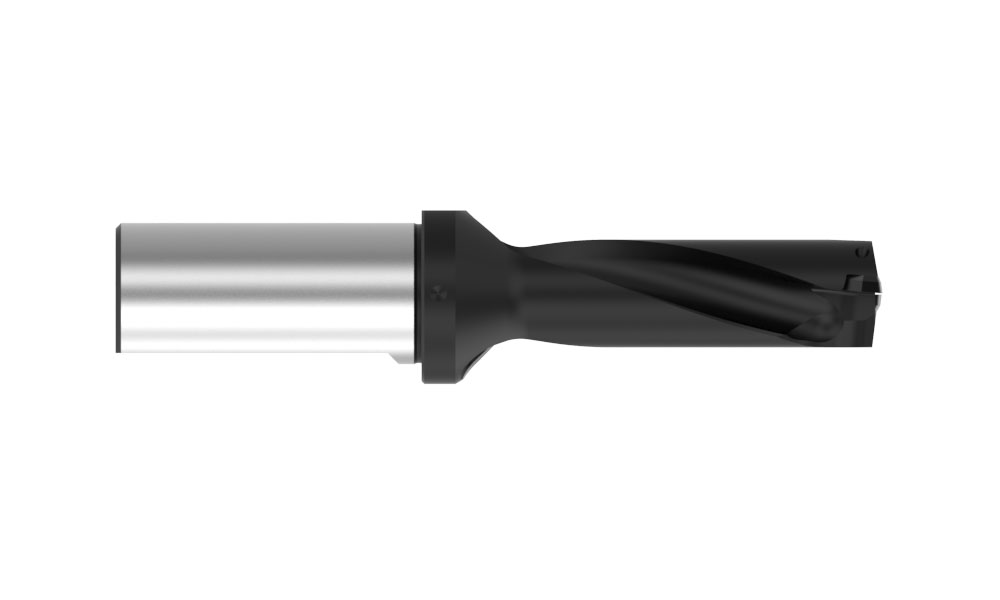

The 4TEX indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The 4-sided 4TEX inserts are designed to use 2 sides in the center pocket and 2 sides in the periphery pocket for an improves cost-per-hole. With insert geometries available for all ISO material classes and a robust body design, the 4TEX is suited for your difficult applications.
Advantages
  • Improved tool holder rigidity and increased reliability
  • Superior chip evacuation
  • Improved hole size
  • Longer tool life
  • Simplified tooling selection
  • Increased penetration rates
  • Lower torque requirements
Features
  • Stronger core

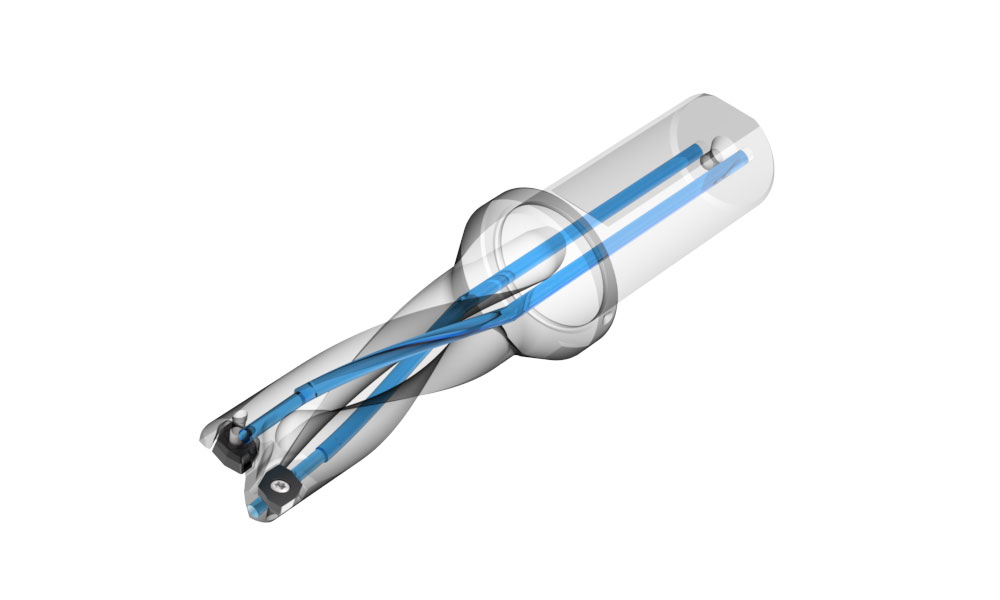

  • 2 twisted coolant holes
  • Increased coolant volume

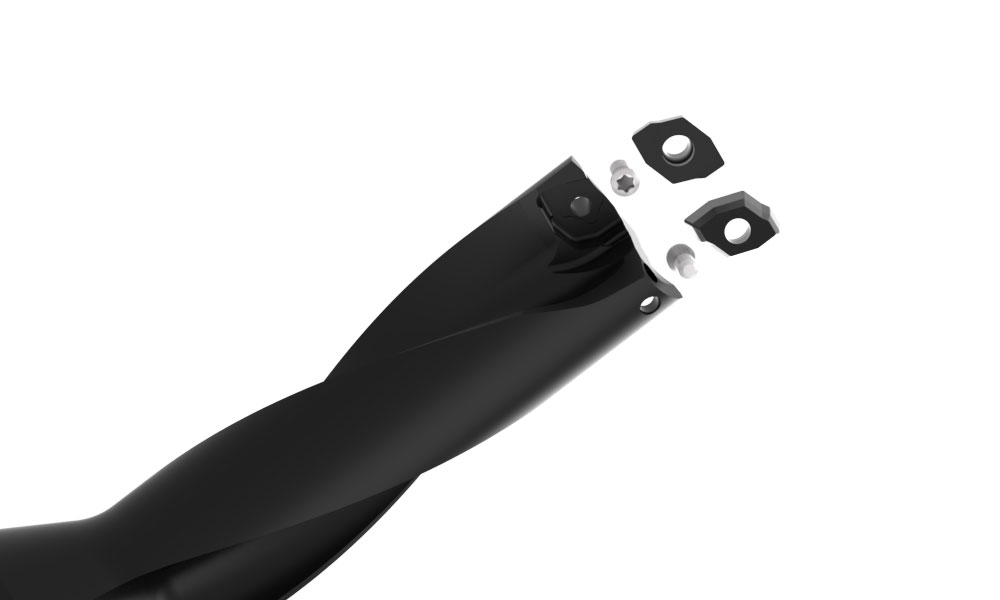

  • 4-sided insert design
  • Insert geometries specific for ISO materials
  • Single effective cutting
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference

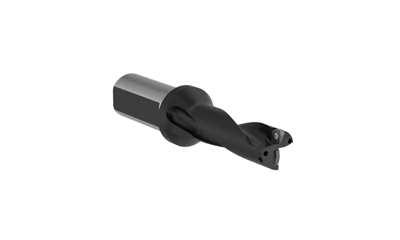

4TEX Rotate
4TEX Rotate
4TEX Drill Angle
4TEX Coolant
4TEX Insert
4TEX Profile Center
4TEX Profile Periphery
Technical Information

Product Specifications
Product Type
Indexable carbide insert drill
Diameter Range
0.472" - 1.850" (12.00mm - 47.00mm)
Depth of Cut
2xD, 3xD, 4xD
Coolant
2 twisted coolant holes
Shank Options
Flanged

Product Nomenclature
4TEX Drill
Length to Diameter Ratio
x
D2 = 2xD
D3 = 3xD
D4 = 4xD
D4
Series
x
03 = 03 Series
04 = 04 Series
05 = 05 Series
06 = 06 Series
07 = 07 Series
09 = 09 Series
11 = 11 Series
14 = 14 Series
03
Diameter
x
0750 = .075"
1200 = 12mm
1200
Diameter Style
x
I = Imperial
M = Metric
M
-
Shank Diameter
x
Imperial
075 = 0.075"
100 = 1.000"
125 = 1.250"
150 = 1.500"
Metric
20 = 20mm
25 = 25mm
32 = 32mm
40 = 40mm
075
Shank Style
x
F = Imperial flanged shank
FM = Metric flanged shank
F
4TEX™ Drill - COMING SOON
Indexable Carbide Drilling System

Available Online Only

Recommended Cutting Data
