0550BHM

0.550" BAR, 0.500" HM SHANK,CC

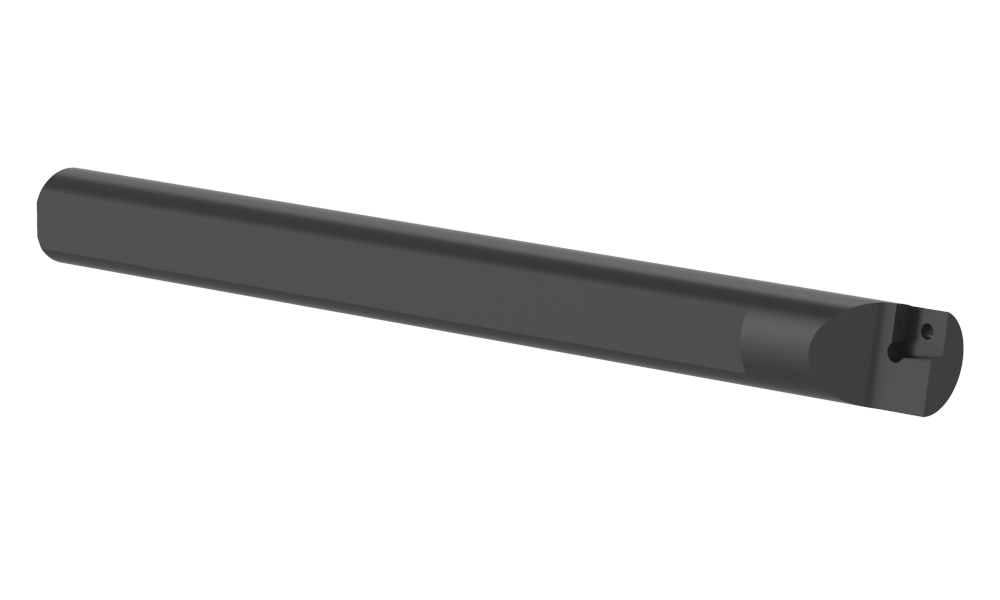

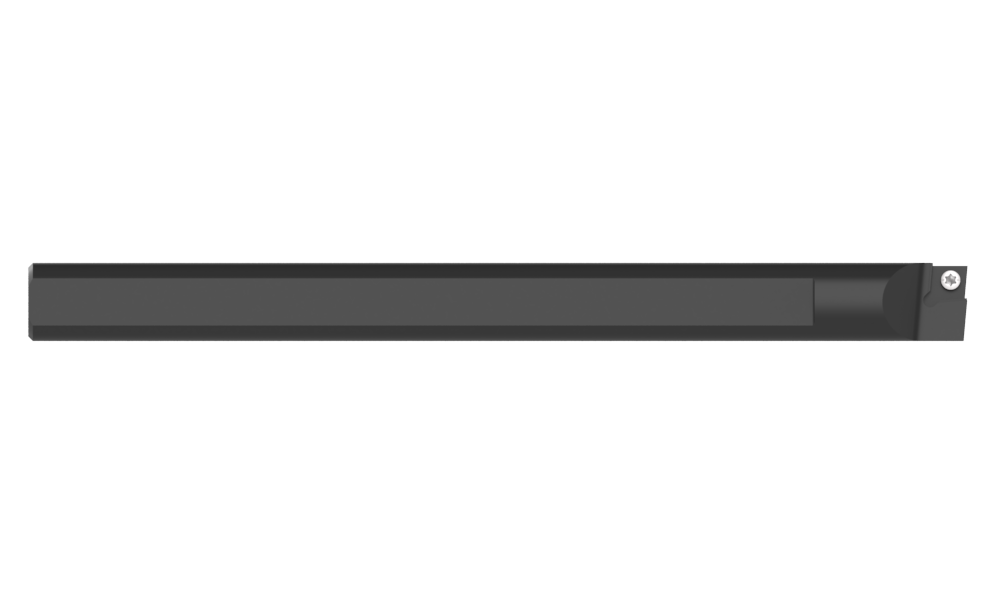

Criterion® Boring Bar

Product Specifications

Type of Product	Boring Bar
Style	Steel / Heavy Metal
IC Size inch	.250
Insert thickness inch	.094
Material	Heavy Metal
Max bore depth inch	3.250
Minimum diameter inch	.550
Number of Flats	1
Overall length inch	6.00
Shank diameter inch	.500
Shape	CC
Width across flats inch	.455

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.03
Category	Stocked
