0688CHM

0.688" BAR, 0.625" HM SHANK,CC

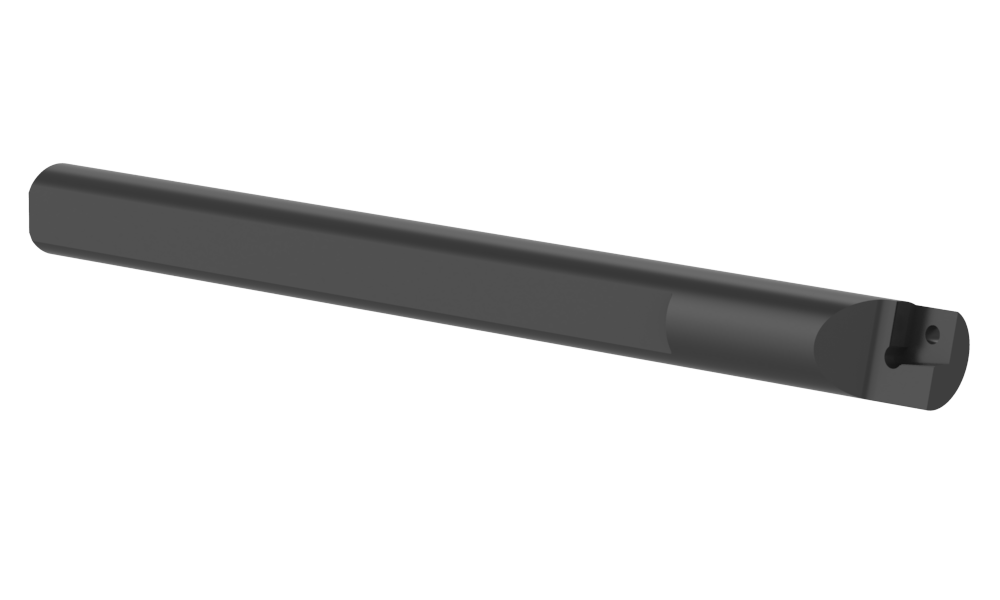

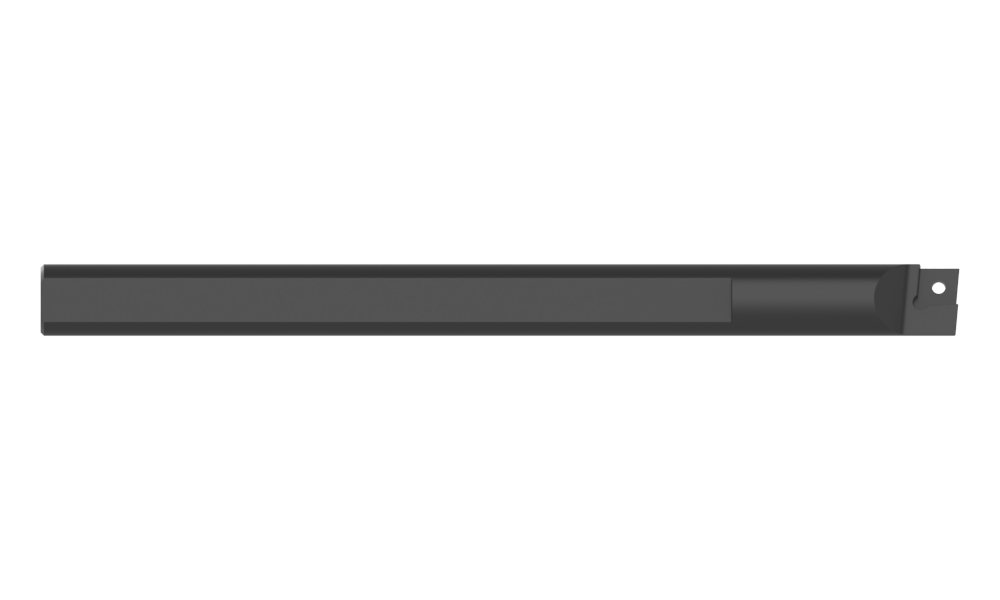

Criterion® Boring Bar

Product Specifications

Type of Product	Boring Bar
Style	Steel / Heavy Metal
IC Size inch	.375
Insert thickness inch	.156
Material	Heavy Metal
Max bore depth inch	4.250
Minimum diameter inch	.688
Number of Flats	1
Overall length inch	8.00
Shank diameter inch	.625
Shape	CC
Width across flats inch	.565

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.531
Category	Stocked
