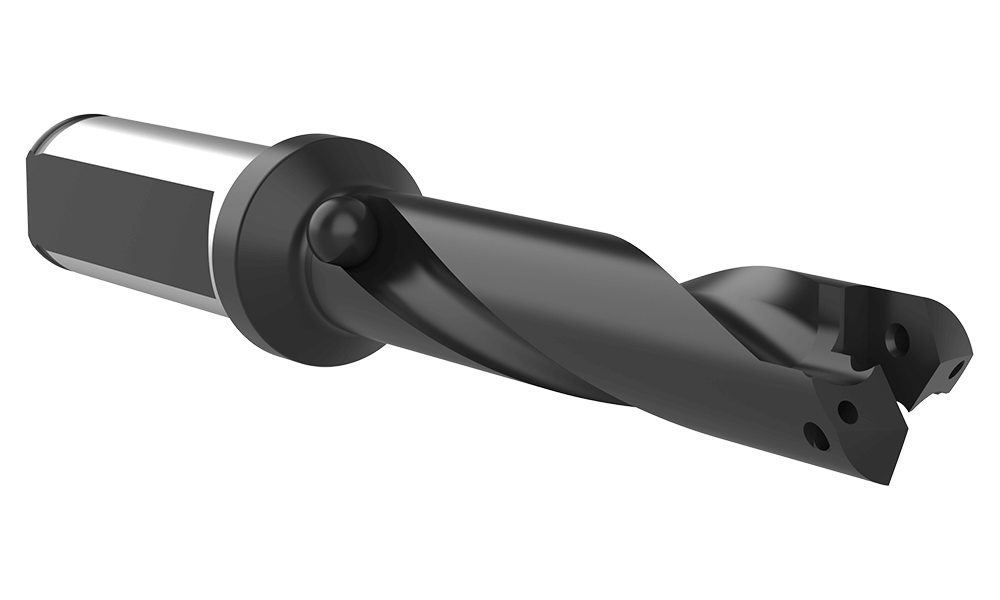

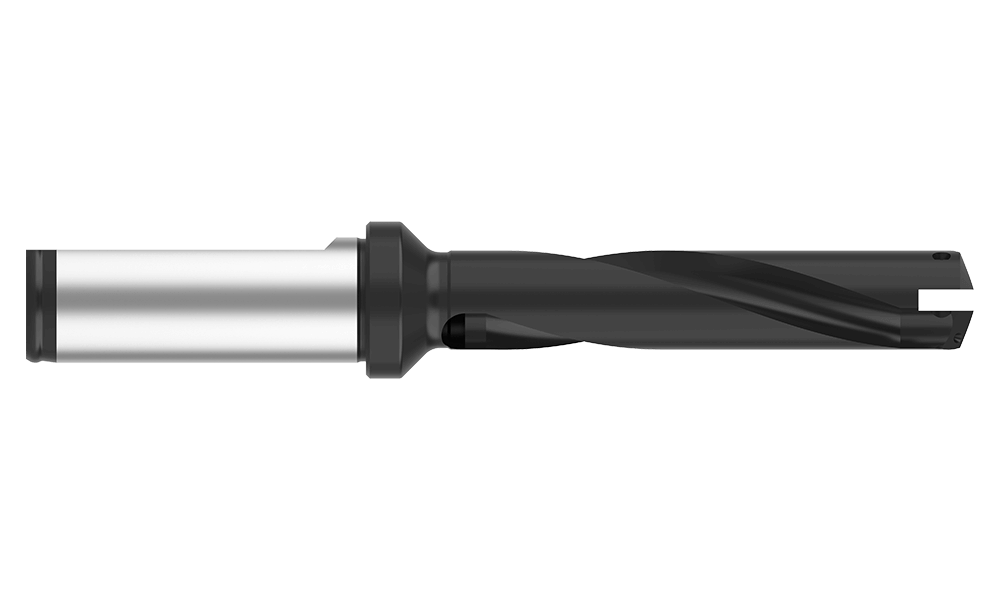

24005H-20FM
#0.5 TA STD HLDR METR ST SHK
T-A® Holder






Product Specifications
Series0
Sub-Series.5
Minimum diameter mm15.48
Maximum diameter mm17.67
Length TypeStandard
Flute TypeHelical
Overall length mm142.1
Tool Reference Length mm94.8
Body length mm92.1
Drill depth mm77.1
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72567-IP8-1     (Qty: 0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.49
CategoryStocked
