Series | 2 |
Minimum diameter inch | 0.9610 |
Maximum diameter inch | 1.3809 |
Length Type | Standard |
Flute Type | Straight |
Overall length inch | 13.781 |
Tool Reference Length inch | 10.233 |
Body length inch | 8.500 |
Drill depth inch | 7.229 |
Shank type | Morse Taper |
Shank diameter inch | #3 MT |
Pipe tap side inch | 1/8 NPT |
Deep Hole Guidelines | No |

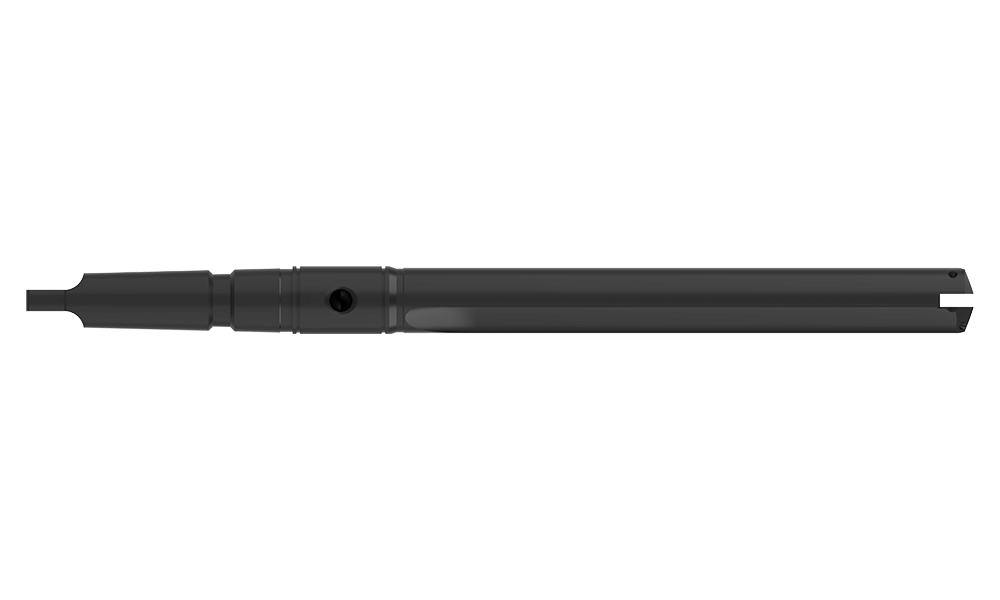

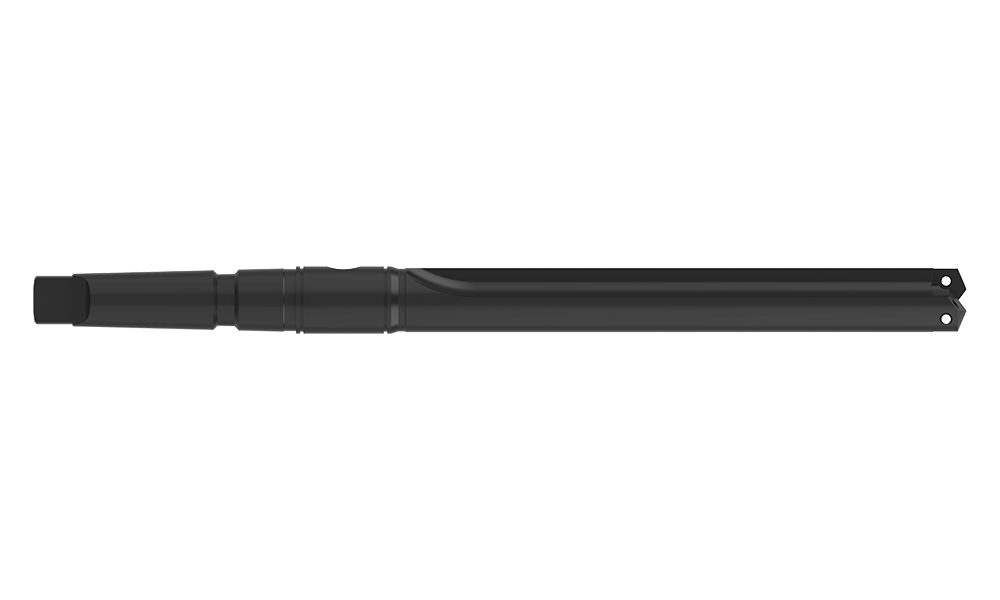

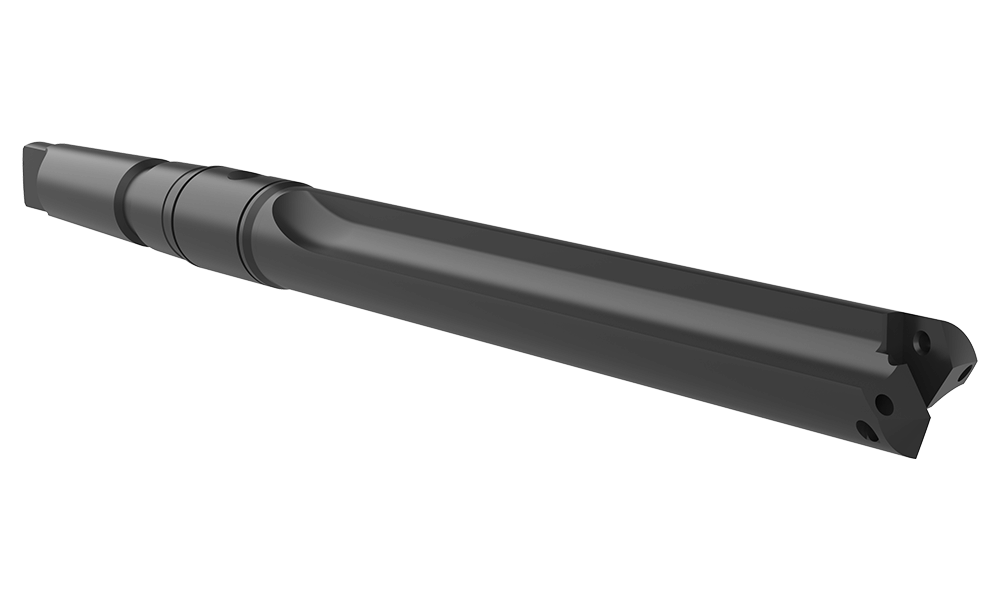

Type of Product | Replaceable Drill Body |
Product Application | General Purpose |
