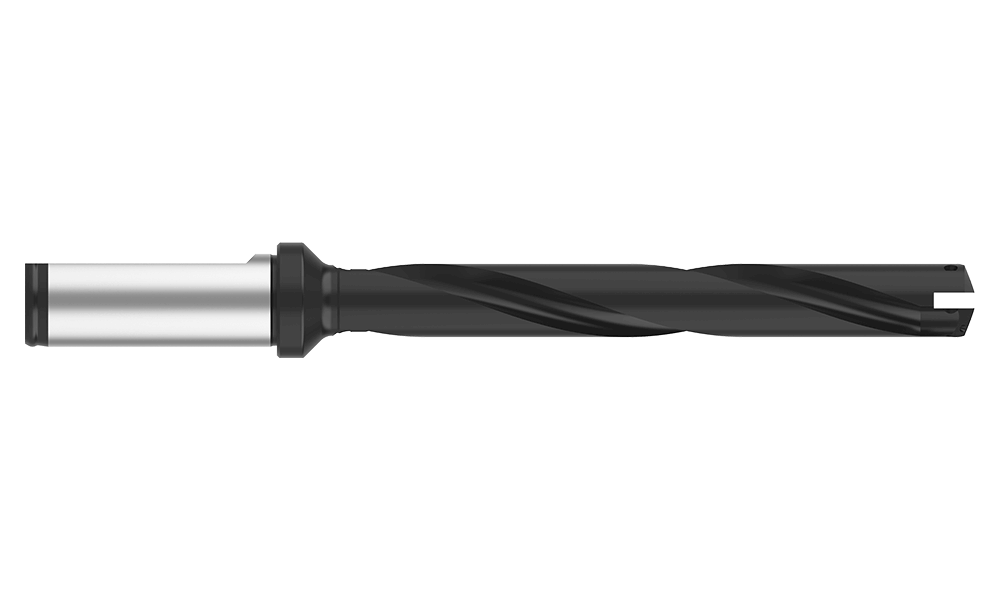

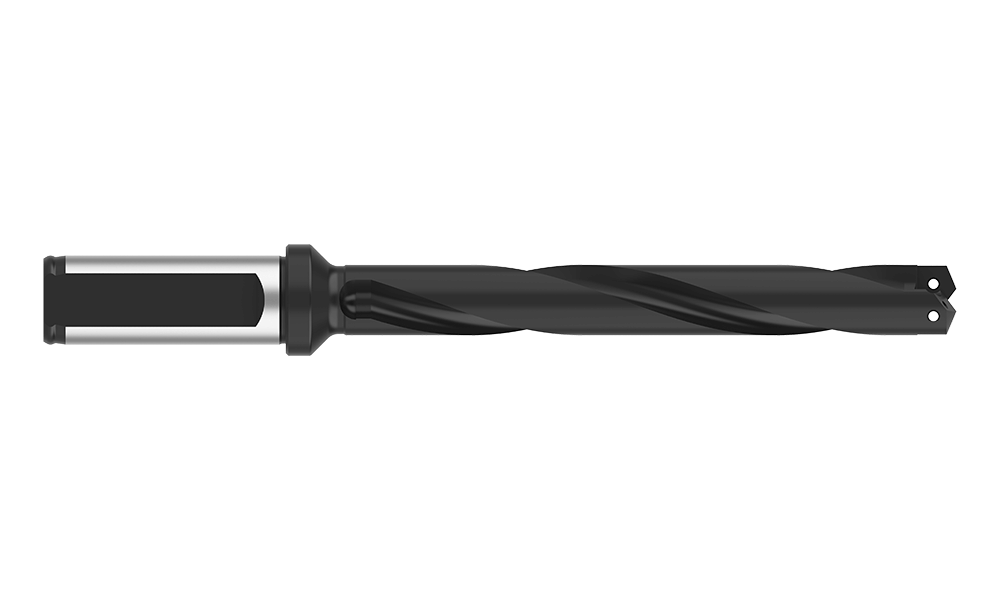

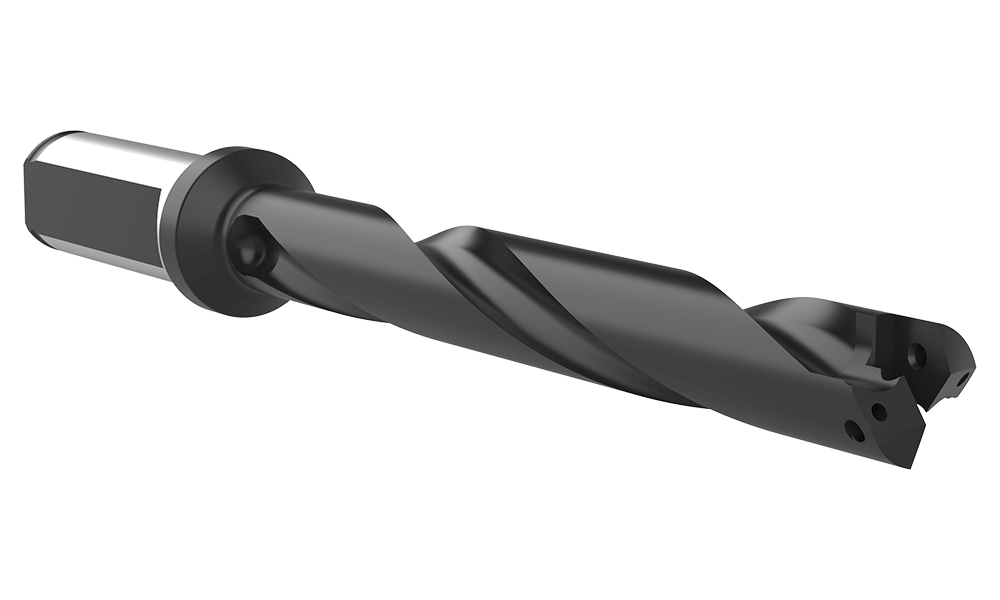

25005H-20FM
#0.5 TA EXT HLDR METR ST SHK
T-A® Holder






Especificaciones del producto
Series0
Sub-Series.5
Minimum diameter mm15.48
Maximum diameter mm17.67
Length TypeExtended
Flute TypeHelical
Overall length mm192.9
Tool Reference Length mm145.6
Body length mm142.9
Drill depth mm127.9
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72567-IP8-1     (Cant.: 0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
8IP-8     (Cant.: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Solicitar información
Cantidad del paquete1
Cantidad mínima a ordenar1
Peso en Libras (cada uno)0.6
CategoríaEn existencias
