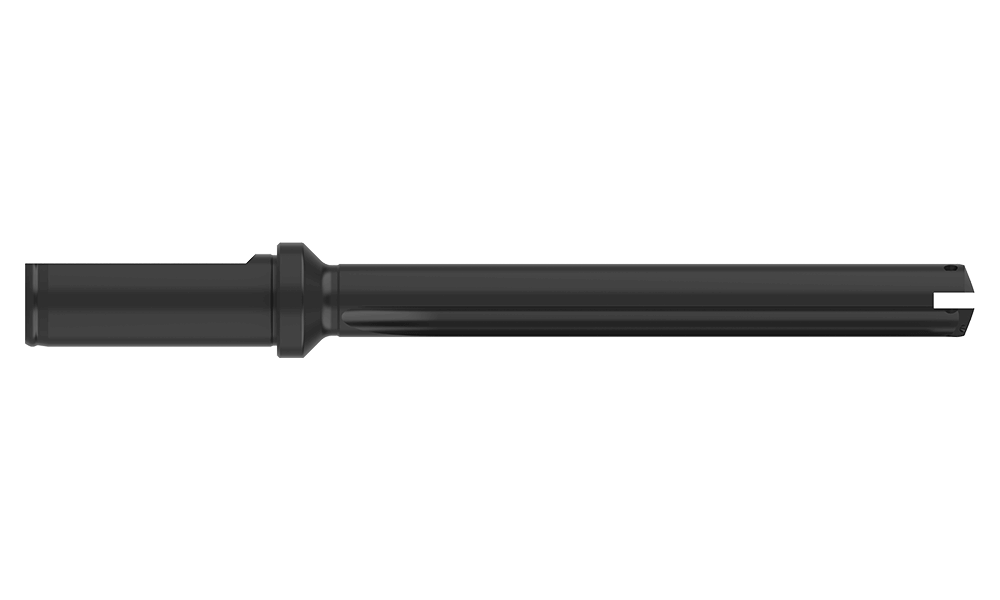

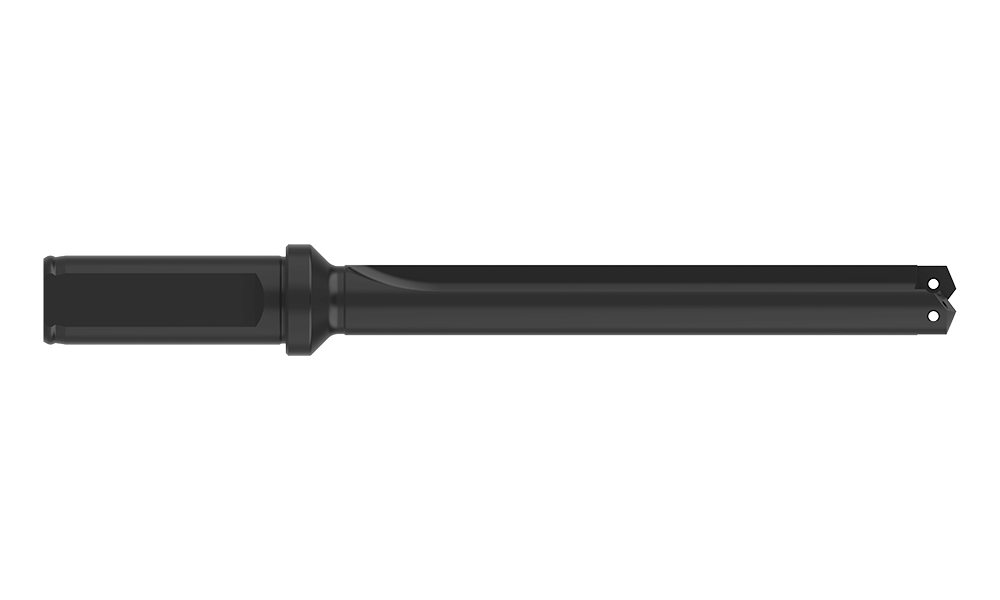

25005S-075F
#0.5 TA EXT HLDR FLANGED SHK
T-A® Holder






Product Specifications
Type of ProductReplaceable Drill Body
Series0.5
Minimum diameter inch39/64
Maximum diameter inch11/16
Drill depth inch4-1/2
Body length inch5-5/8
Overall length inch7-21/32
Shank diameter inch3/4
Shank length inch2-1/32
Pipe tap rear inch1/8
Shank typeFlanged
Tool Reference Length inch5-47/64
Flute TypeStraight
Length TypeExtended
Deep HoleYes
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.59
CategoryStocked
