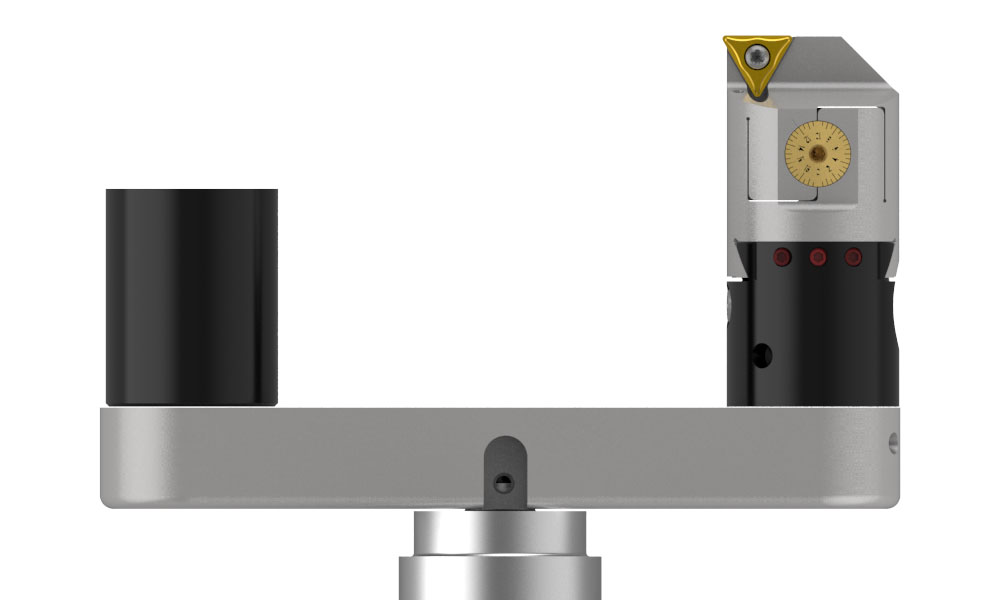

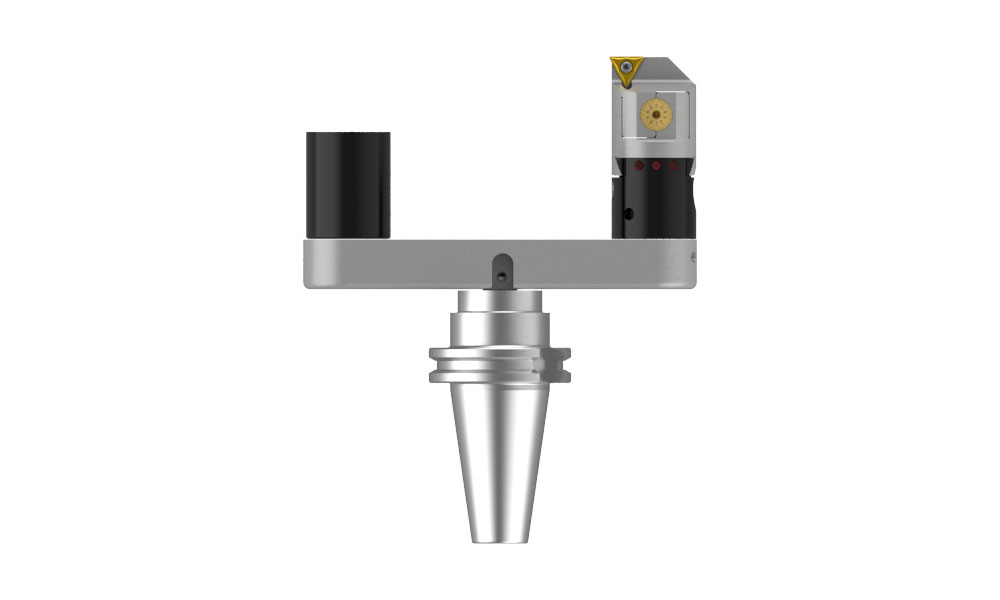

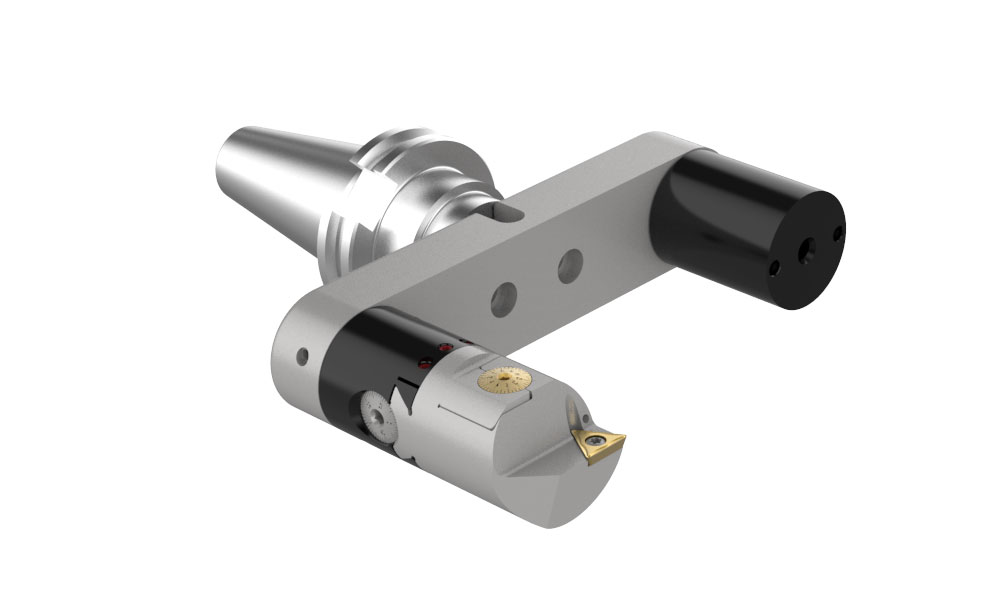

Large Cri-Bore System
Utilizing an extender bar and adapting standard Cri-Bore boring heads will extend the diameter range for internal and external boring.
Advantages
  • Uses micro adjusting 1.500" Cri-Bore boring heads

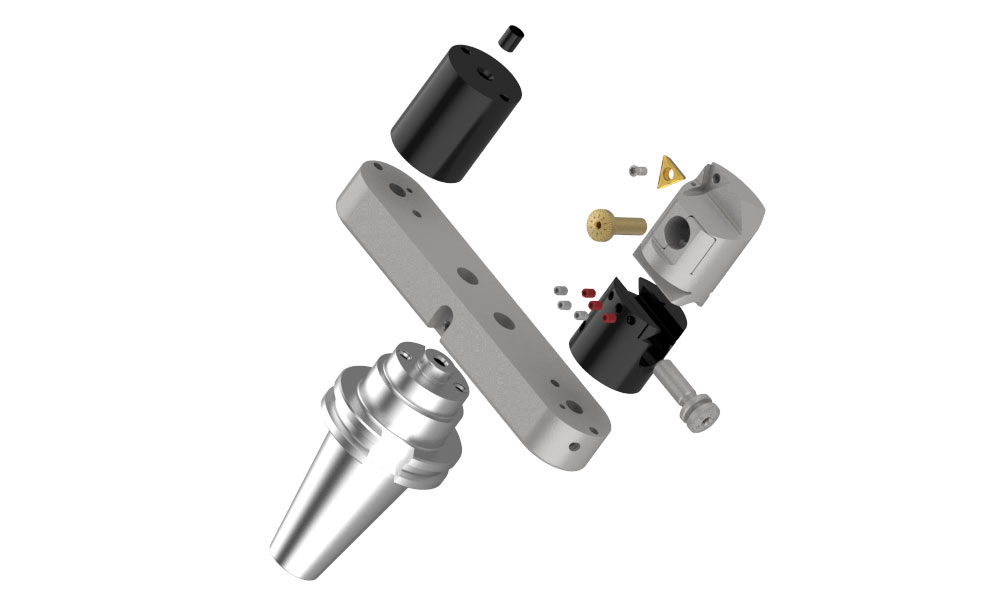

  • Modular system that allows you to use CAT, BT, or HSK shanks
  • Increased RPMs due to low center of gravity to the machine spindle

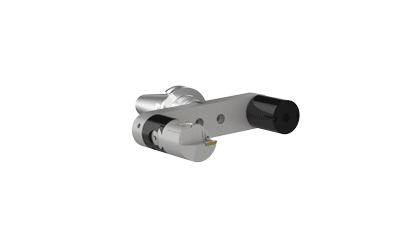

  • Can rotate boring heads 180 degrees for external turning
Features
  • Available in micro adjustment for .00005” or .001mm increments
  • Extender bars provide 1.125" adjustment on diameter
  • Seven extender bars provide a diameter range from 5.000" - 12.125" (127.00mm - 307.90mm) for internal bores
  • OD turning diameter range of .710" - 7.830" (18.10mm - 198.80mm)
  • Max cutting speed ID boring: 1,000 SFM (305M/min) at 0 radial offset and used with counter weight or additional boring head
  • Max cutting speed OD boring: Contact our Application Engineering department
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference



Technical Information

Product Specifications
Product Type
Modular Boring System
Outer Diameter Range
0.710" - 7.830" (19.00mm - 198.00mm)
Inner Diameter Range
5.00" - 12.125" (127.00mm - 307.00mm)
Criterion US
Boring Systems

Literature Order Number: AMPC-B2
