119054
Wohlhaupter® Intermediate Module: Reducer, MVS 50 - 28 | MVS 25 - 14
Wohlhaupter® Intermediate Module

Add to cart image Add to list image







Default Image

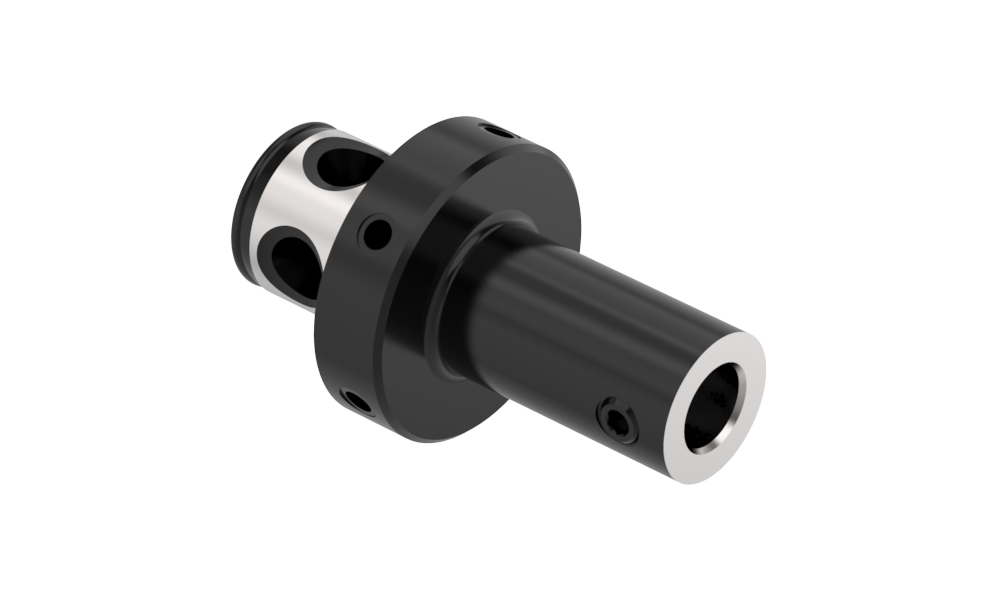

Angle

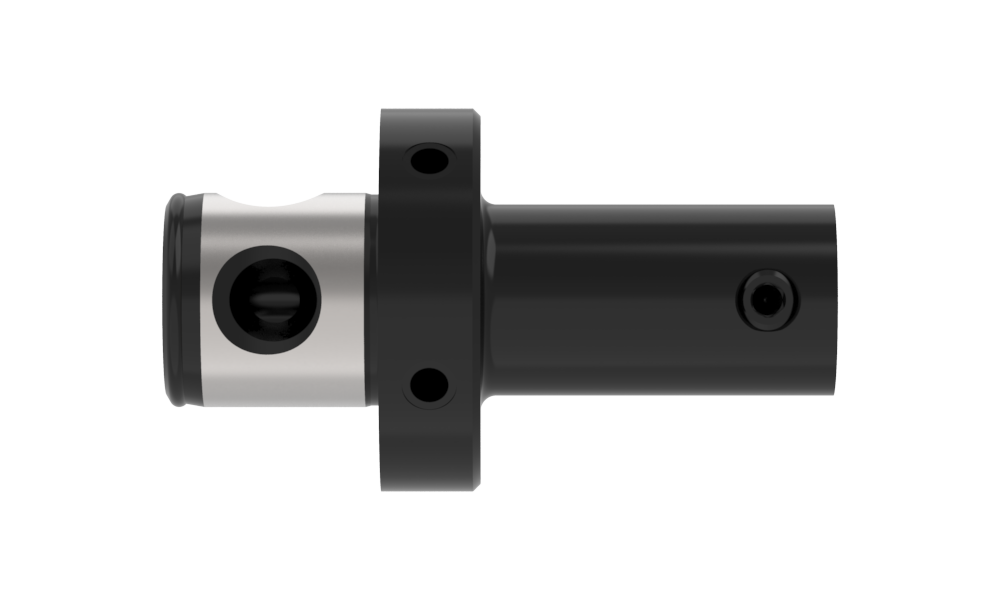

Side
Product Specifications
Overall length inch 2.323
Overall length mm 59
Material Steel
Body Diameter mm 25
Body Diameter inch 0.984
Male major 50
Male minor 28
Female major 25
Female minor 14
Working length mm 46
Working length inch 1.811
Type of Product Wohlhaupter
Style Reducer
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.97
Weight in kg (each) 0.44
Category Stocked
