| Series | Z |
| Minimum diameter inch | 0.4370 |
| Maximum diameter inch | 0.5109 |
| Length Type | Stub |
| Flute Type | Straight |
| Overall length inch | 3.672 |
| Tool Reference Length inch | 1.887 |
| Body length inch | 1.797 |
| Drill depth inch | 0.805 |
| Shank type | Flanged |
| Shank diameter inch | 5/8 |
| Shank length inch | 1.875 |
| Pipe tap rear inch | 1/16 NPT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

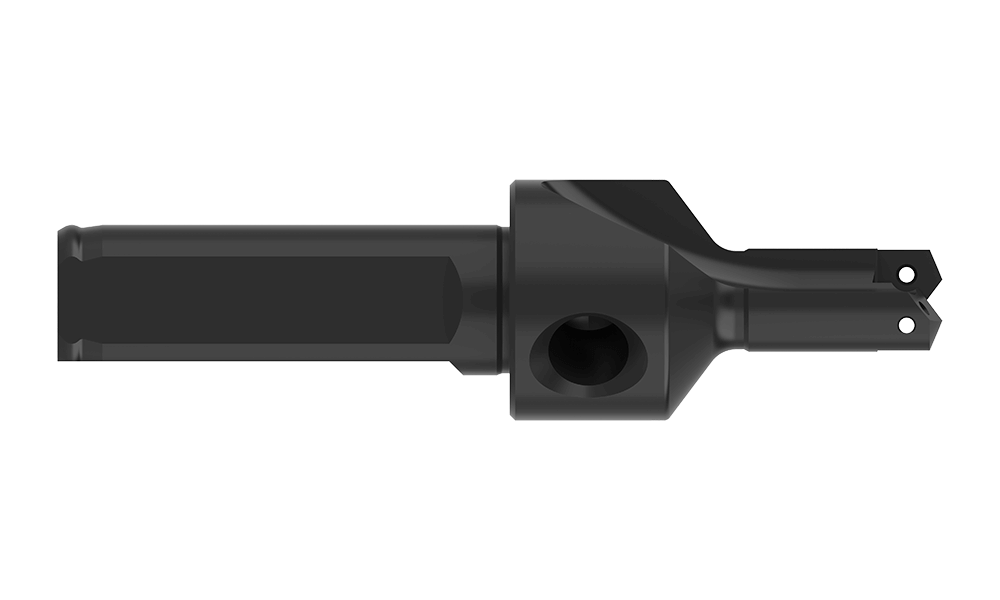

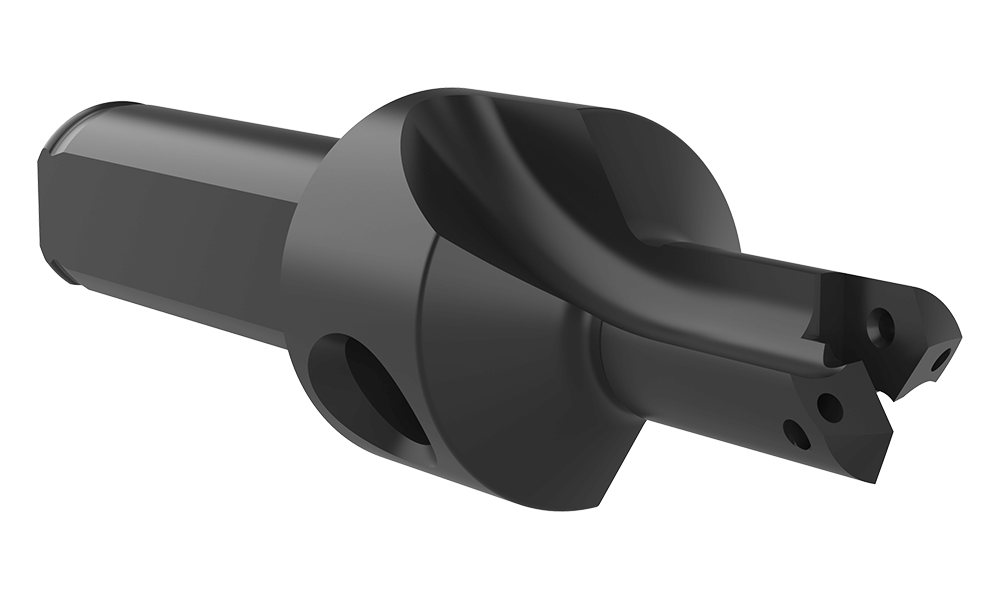

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
