| Series | 0 |
| Sub-Series | .5 |
| Minimum diameter inch | 0.6875 |
| Maximum diameter inch | 0.6959 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 6.156 |
| Tool Reference Length inch | 2.358 |
| Body length inch | 2.281 |
| Drill depth inch | 1.204 |
| Shank type | Morse Taper (SS) |
| Shank diameter inch | #3 MT |
| Coolant Inlet Style Rear | Through Tang Coolant |
| Coolant Inlet Style Side | Through Shank Coolant |
| Deep Hole Guidelines | No |

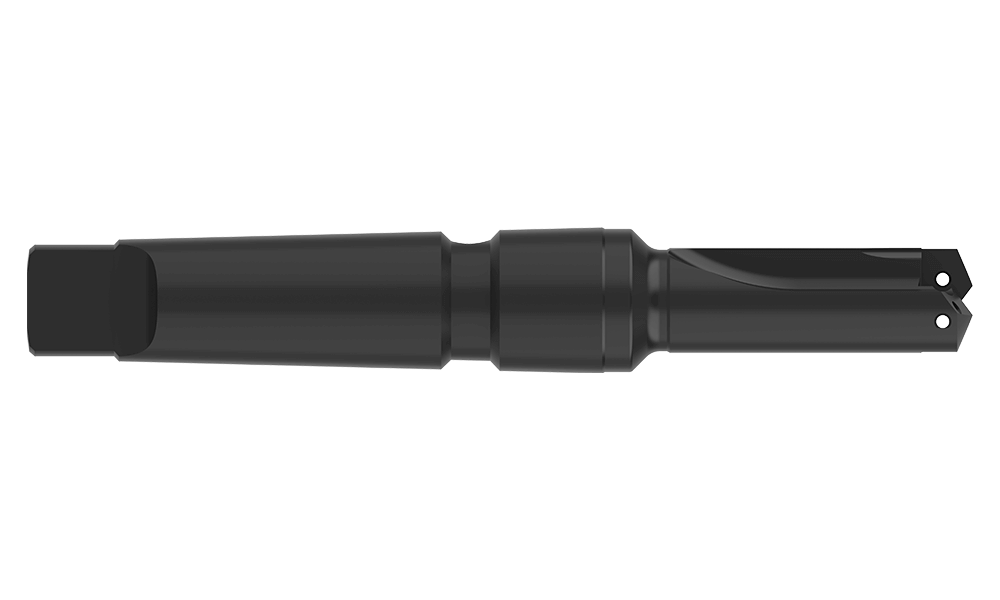

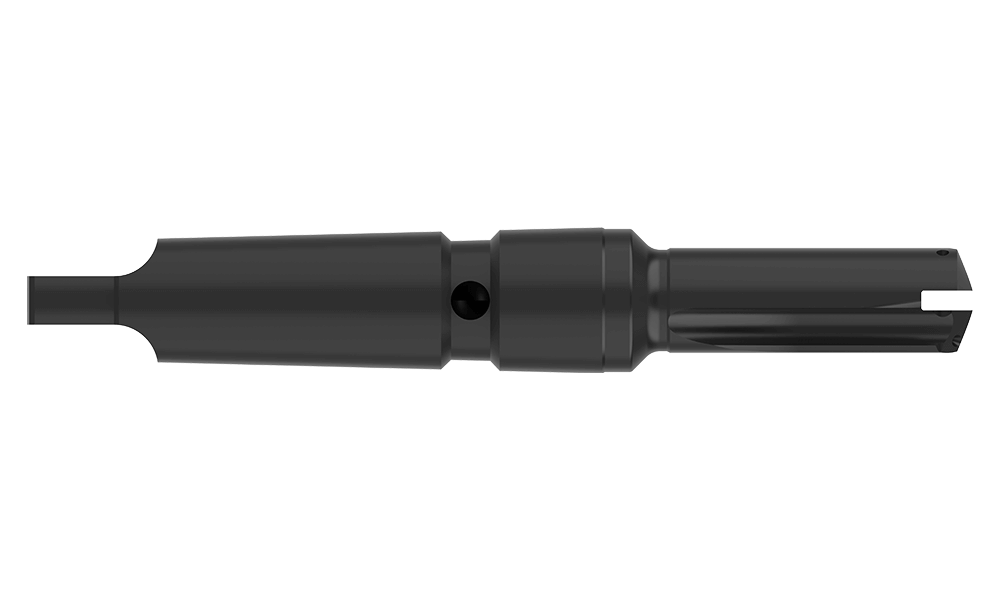

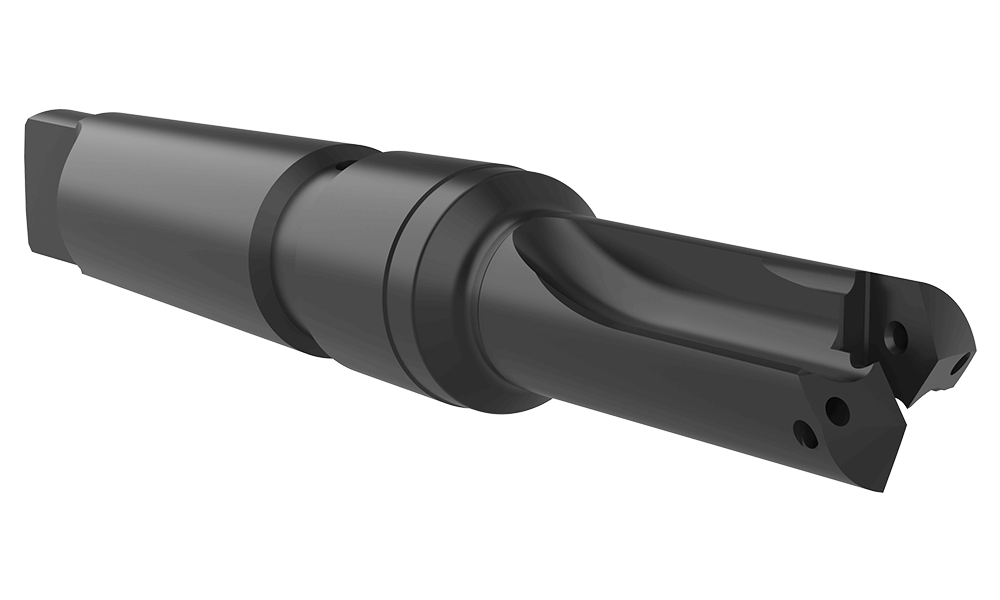

| Type of Product | Replaceable Drill Body |
| Product Application | Structural Steel |
