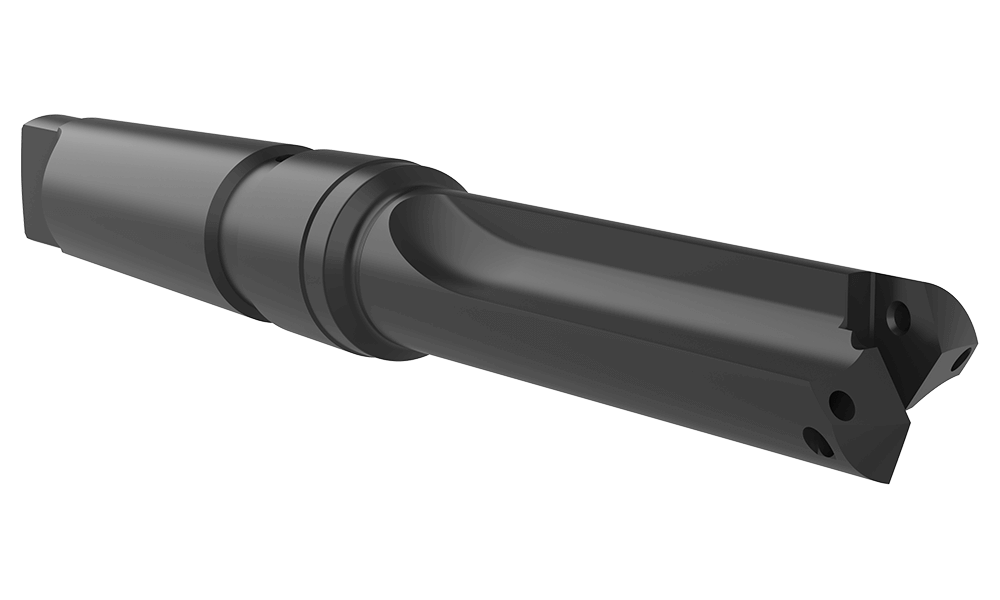

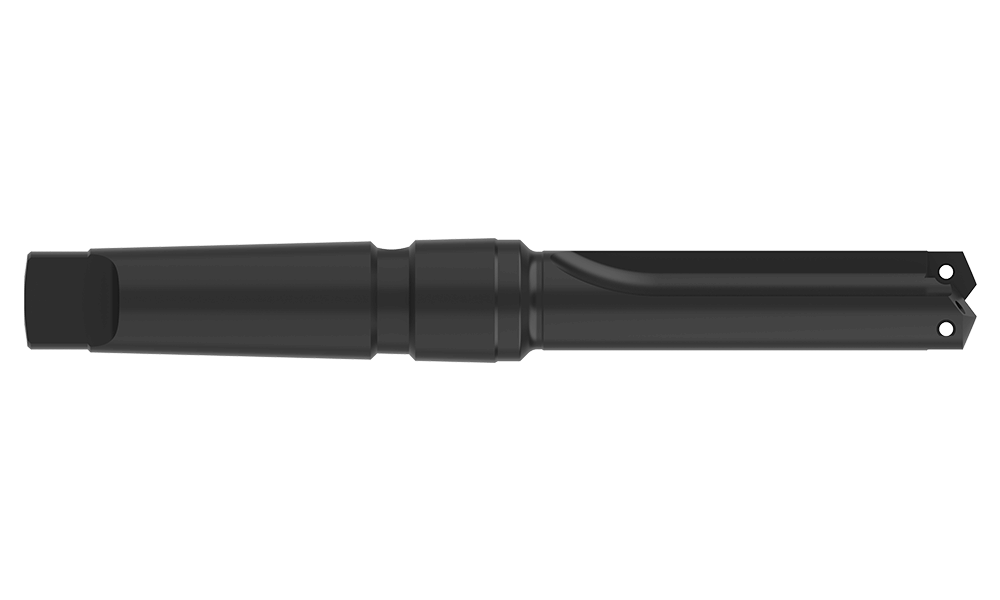

22020S-004IS100
#2 TA SHT STRUC ST HLDR 4MT
T-A® SS Holder






Product Specifications
Series2
Minimum diameter inch1.0000
Maximum diameter inch1.3809
Length TypeShort
Flute TypeStraight
Overall length inch9.449
Tool Reference Length inch4.725
Body length inch4.574
Drill depth inch3.211
Shank typeMorse Taper (SS)
Shank diameter inch#4 MT
Coolant Inlet Style RearThrough Tang Coolant
Coolant Inlet Style SideThrough Shank Coolant
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationStructural Steel


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.91
CategoryStocked
