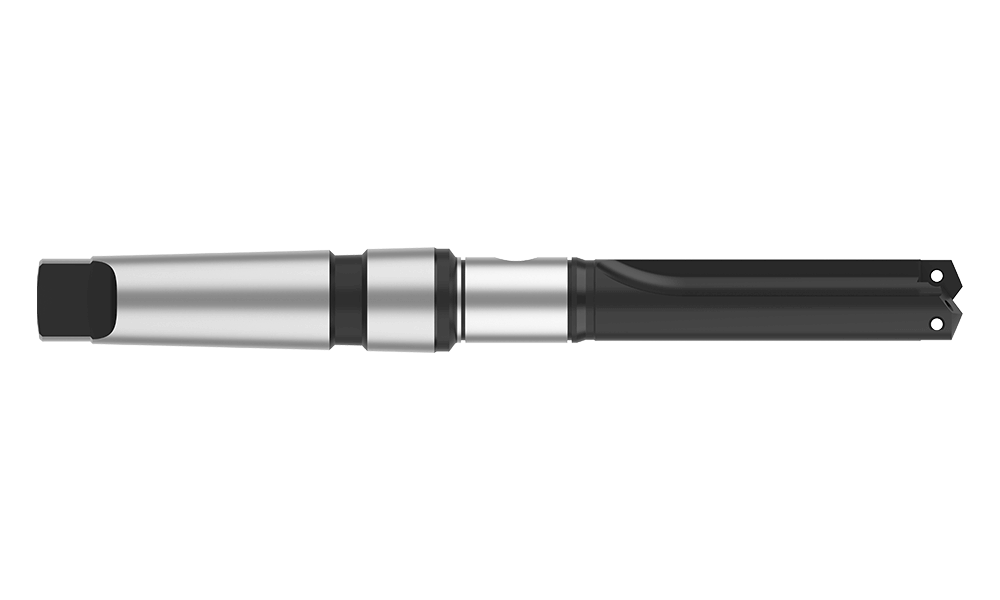

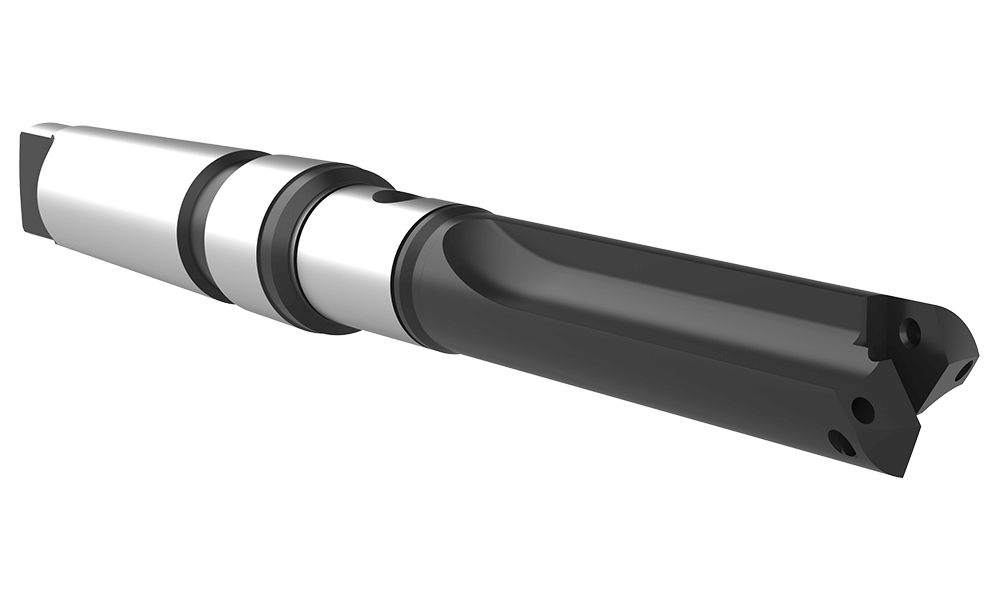

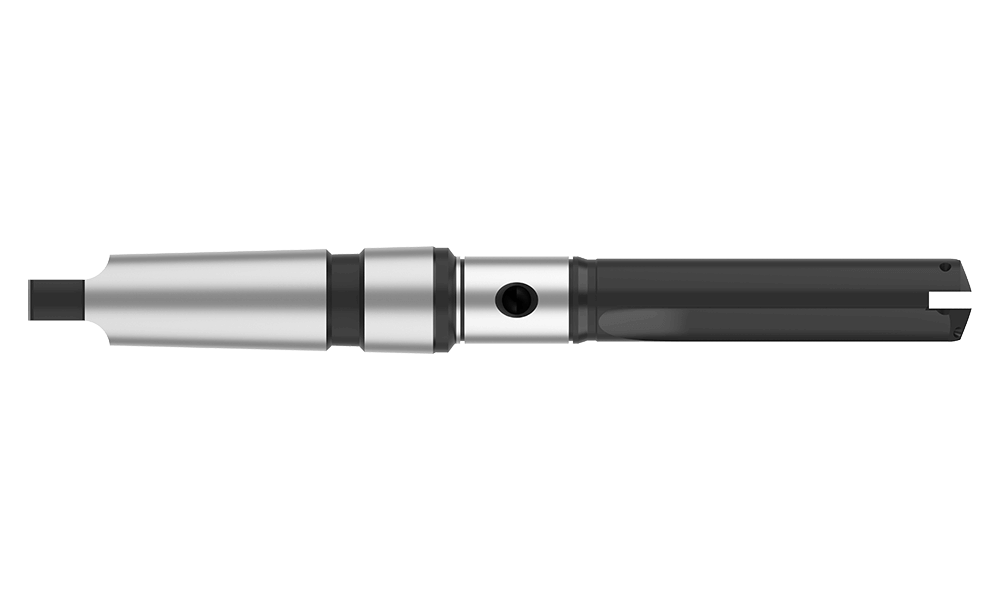

22020S-004M
#2 TA SHT HLDR METR TAP SH
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Minimum diameter mm24.41
Maximum diameter mm35.06
Length TypeShort
Flute TypeStraight
Overall length mm273.8
Tool Reference Length mm159.9
Body length mm114.3
Drill depth mm82.0
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.17
CategoryStocked
