22020S-125L
T-A® Replaceable Drill Body: 0.9610" - 1.3809", Short, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

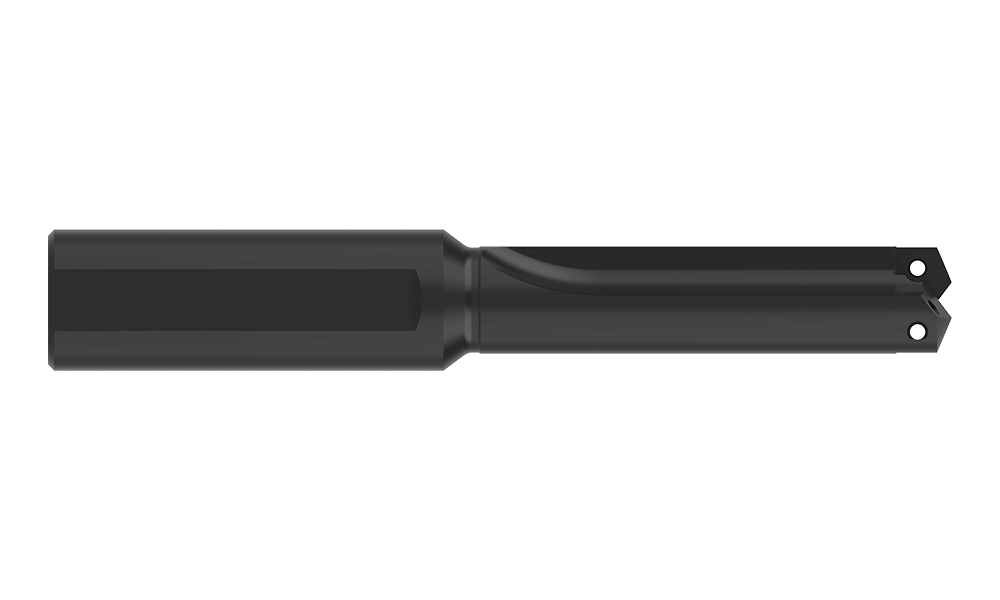

Front

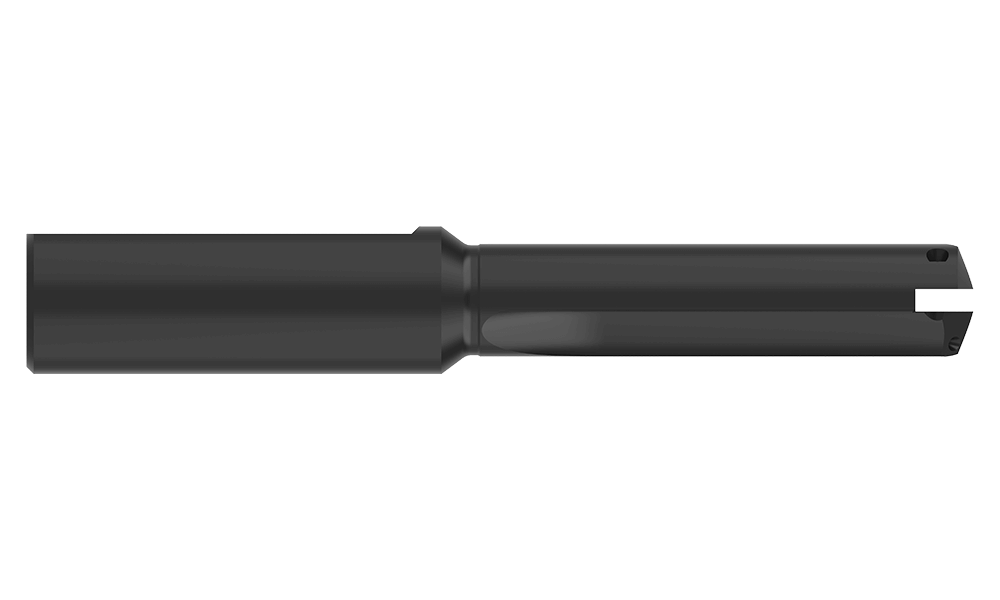

Side
Product Specifications
Series 2
Minimum diameter inch 0.9610
Maximum diameter inch 1.3809
Length Type Short
Flute Type Straight
Overall length inch 8.000
Tool Reference Length inch 4.640
Body length inch 4.500
Drill depth inch 3.119
Shank type Lathe
Shank diameter inch 1-1/4
Shank length inch 3.5000
Pipe tap rear inch 1/8 NPT
Pipe tap side inch 1/8 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.82
Weight in kg (each) 0.83
Category Stocked
