22020S-32FM
T-A® Replaceable Drill Body: 24.41 mm - 35.06 mm, Short, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

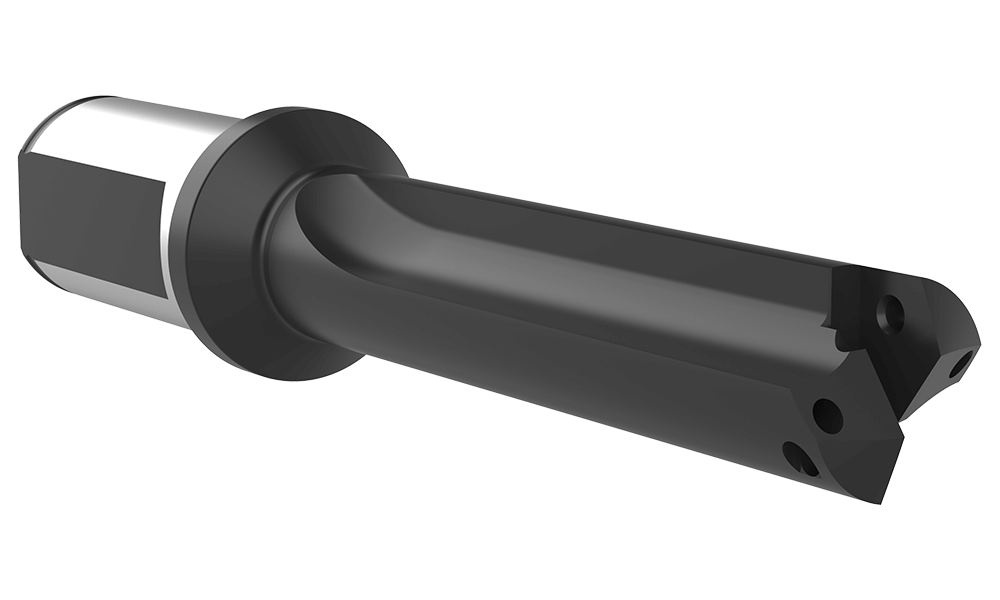

Angle

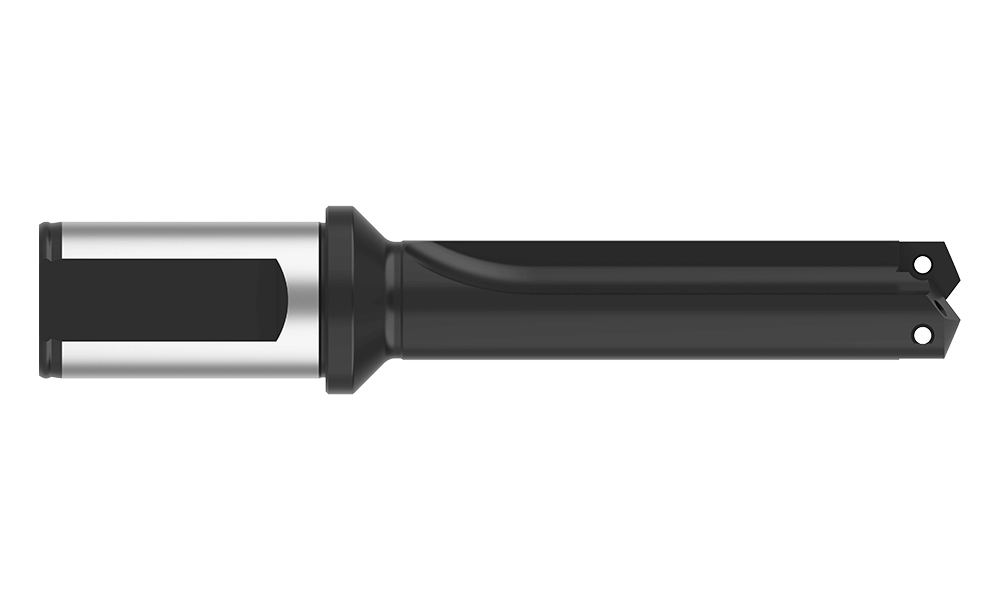

Front

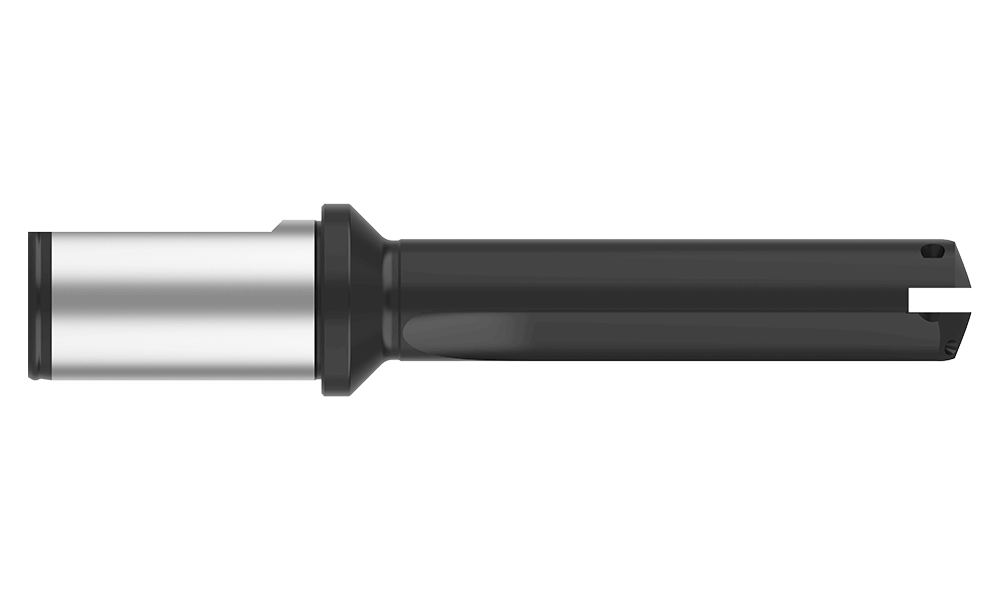

Side
Product Specifications
Series 2
Minimum diameter mm 24.41
Maximum diameter mm 35.06
Length Type Short
Flute Type Straight
Overall length mm 188.6
Tool Reference Length mm 132.2
Body length mm 128.6
Drill depth mm 86.1
Shank type Flanged
Shank diameter mm 32
Shank length mm 60.0
Pipe tap rear inch 1/4
Pipe tap rear mm 1/4 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.62
Weight in kg (each) 0.74
Category Stocked
