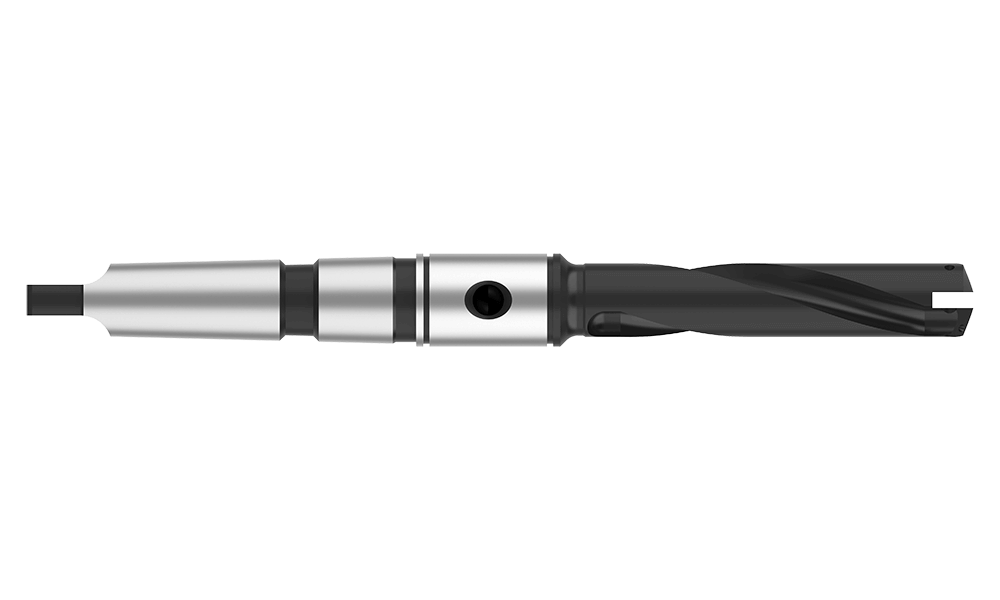

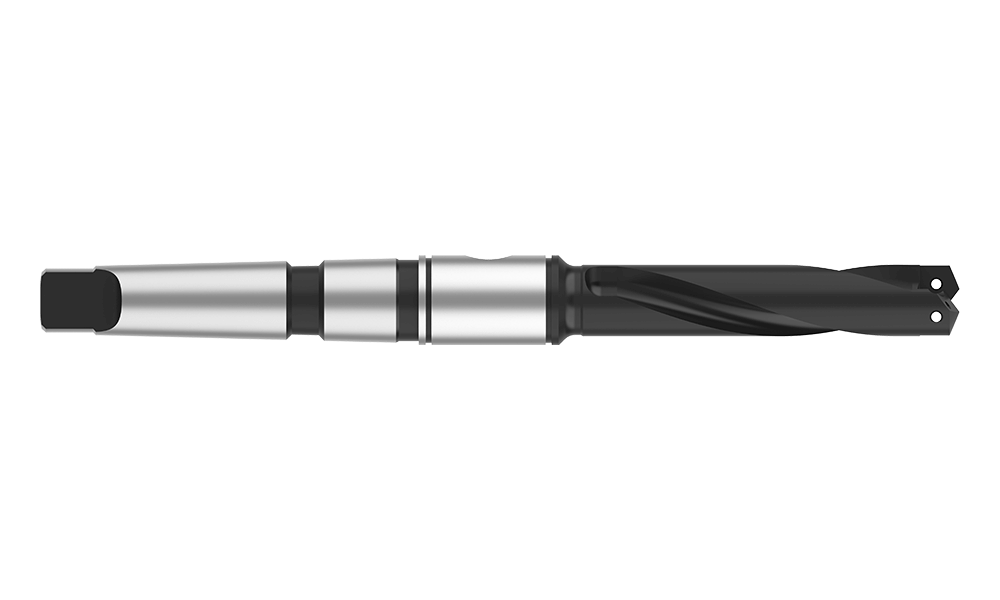

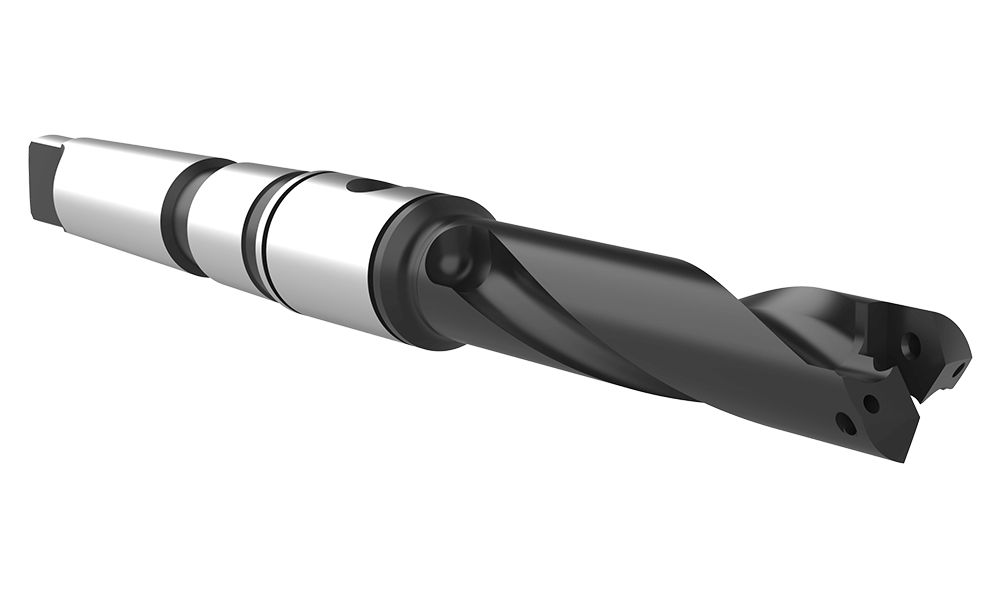

24005H-002M
#0.5 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series0
Sub-Series.5
Minimum diameter mm15.48
Maximum diameter mm17.67
Length TypeStandard
Flute TypeHelical
Overall length mm192.9
Tool Reference Length mm121.0
Body length mm84.2
Drill depth mm75.1
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72567-IP8-1     (Qty: 0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.56
CategoryStocked
