| Series | 2 |
| Sub-Series | .5 |
| Minimum diameter inch | 1.1875 |
| Maximum diameter inch | 1.3809 |
| Length Type | Standard |
| Flute Type | Straight |
| Overall length inch | 12.000 |
| Tool Reference Length inch | 8.640 |
| Body length inch | 8.500 |
| Drill depth inch | 7.395 |
| Shank type | Lathe |
| Shank diameter inch | 1 |
| Shank length inch | 3.5000 |
| Pipe tap rear inch | 1/8 NPT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

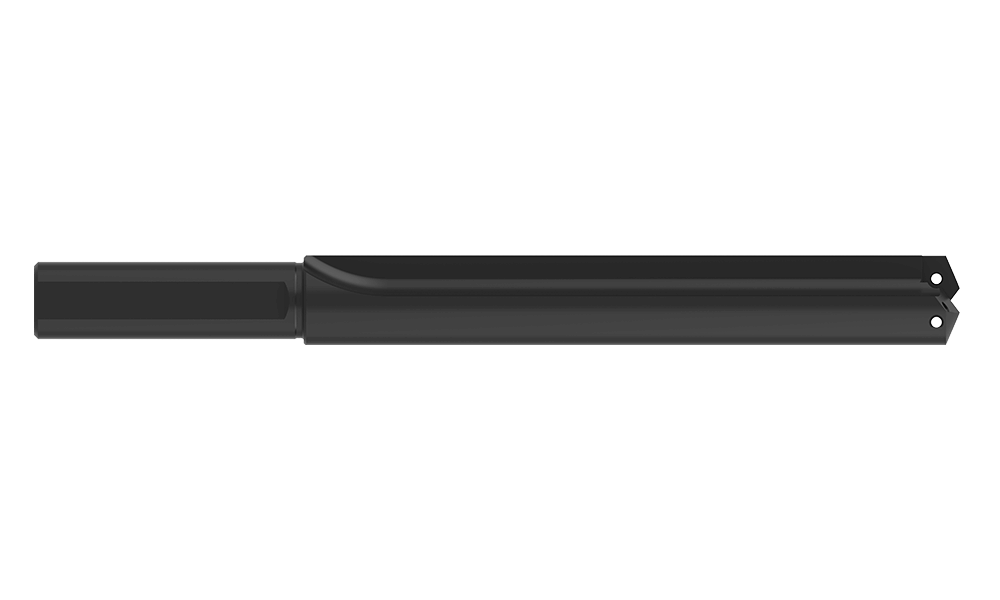

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
