| Series | Y |
| Minimum diameter inch | 0.3740 |
| Maximum diameter inch | 0.4369 |
| Length Type | Standard |
| Flute Type | Straight |
| Overall length inch | 5.561 |
| Tool Reference Length inch | 3.621 |
| Body length inch | 3.531 |
| Drill depth inch | 2.266 |
| Shank type | Flanged |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.030 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | No |

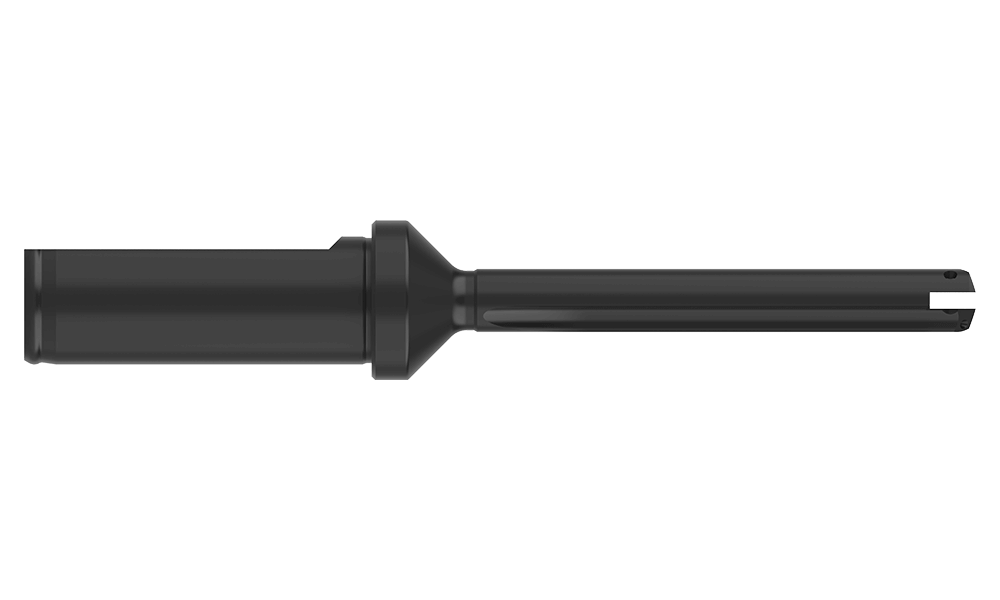

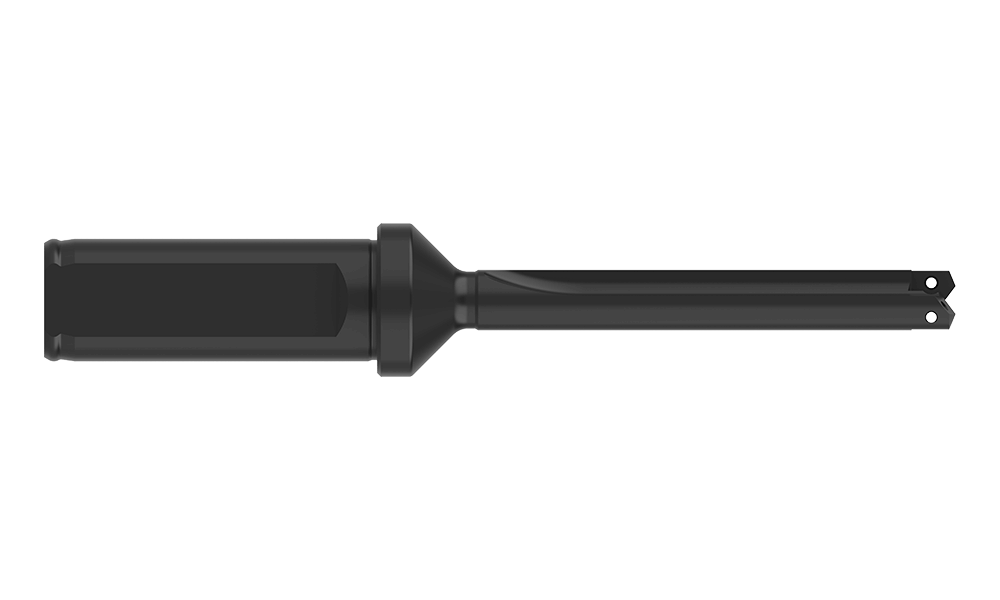

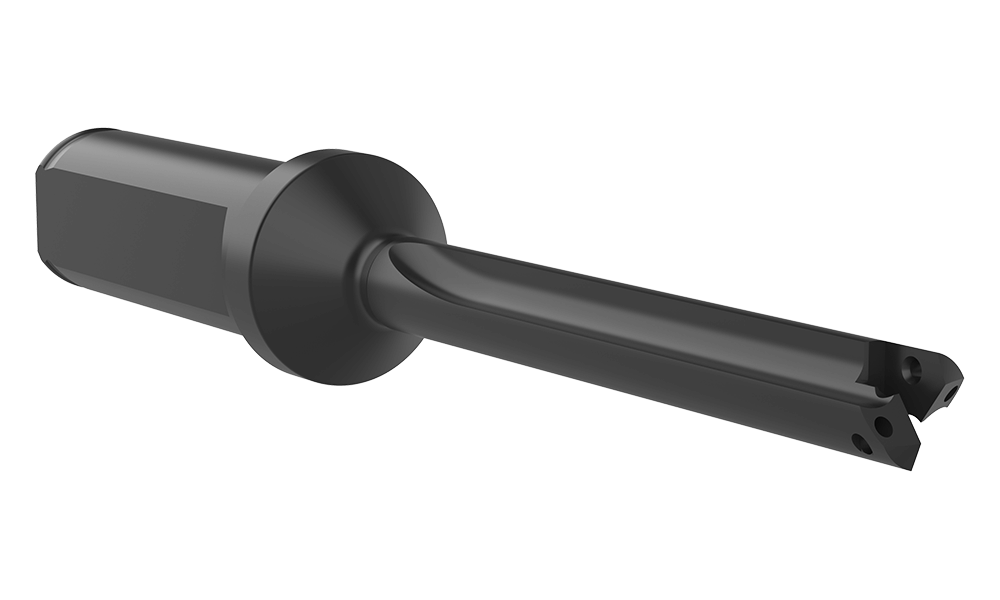

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
