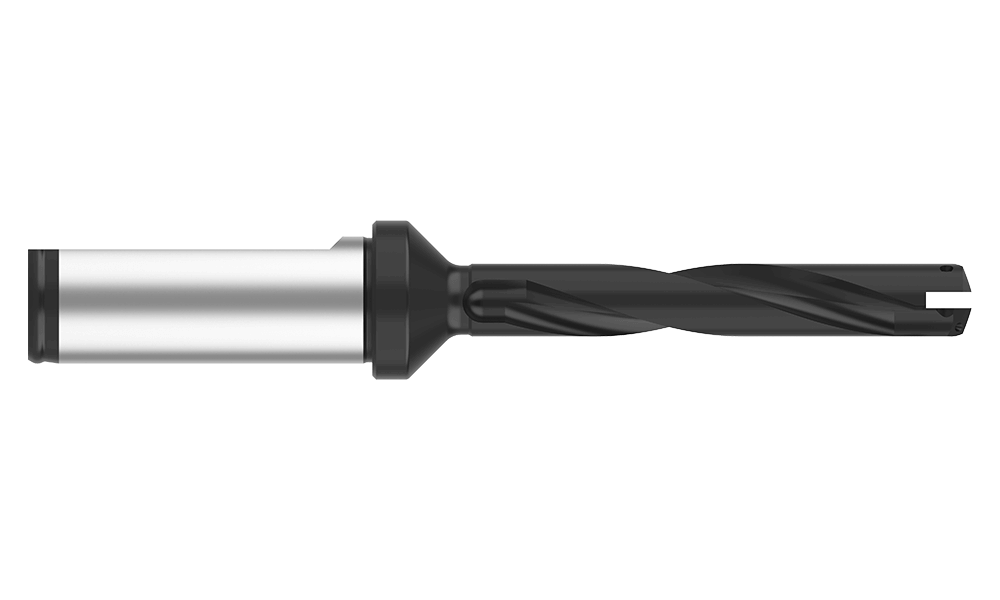

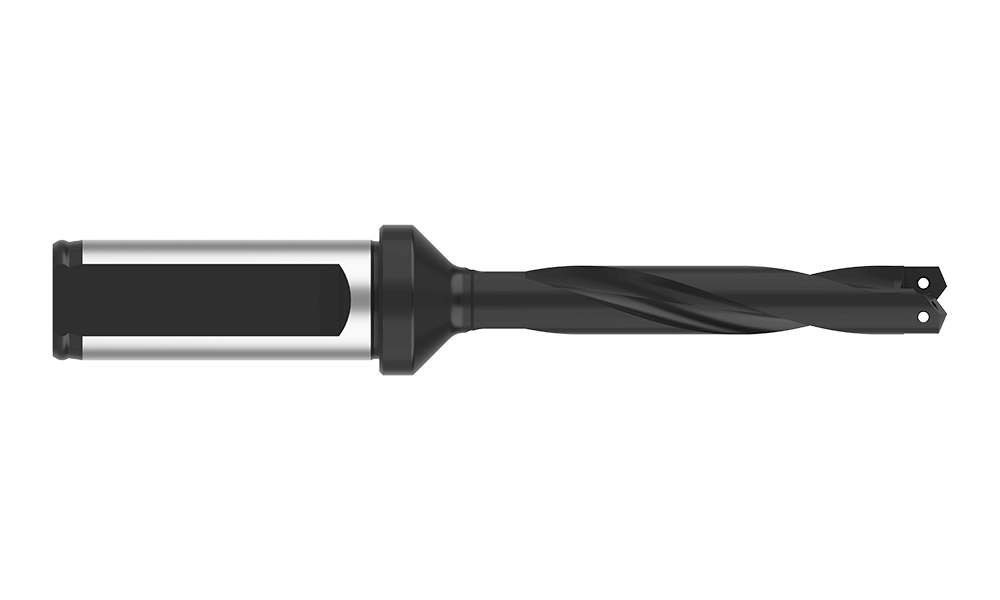

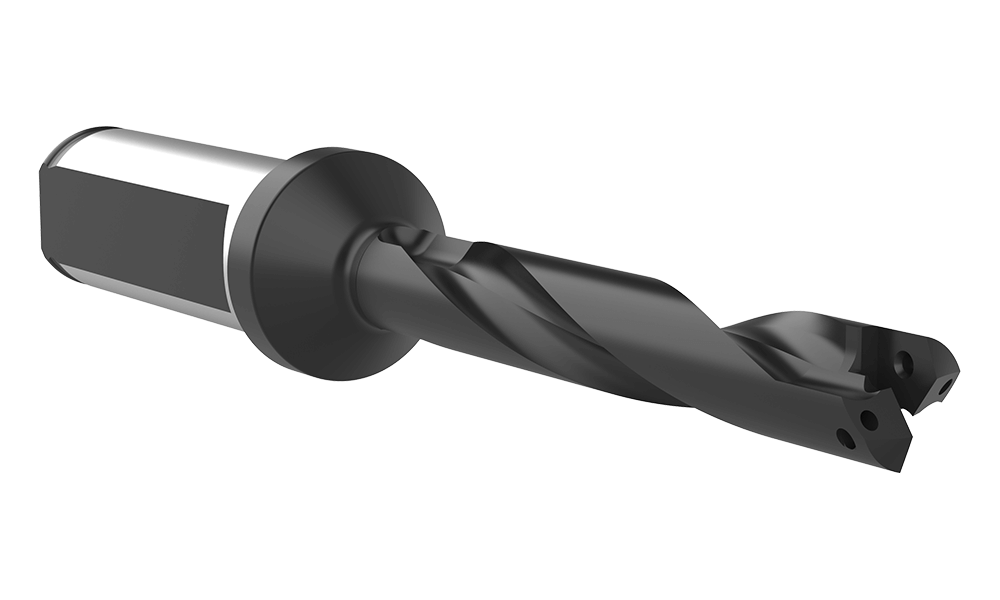

240Z0H-20FM
#Z TA STD HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeStandard
Flute TypeHelical
Overall length mm139.7
Tool Reference Length mm92.0
Body length mm89.7
Drill depth mm73.0
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7247-IP7-1     (Qty: 0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
8IP-7     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.41
CategoryStocked
