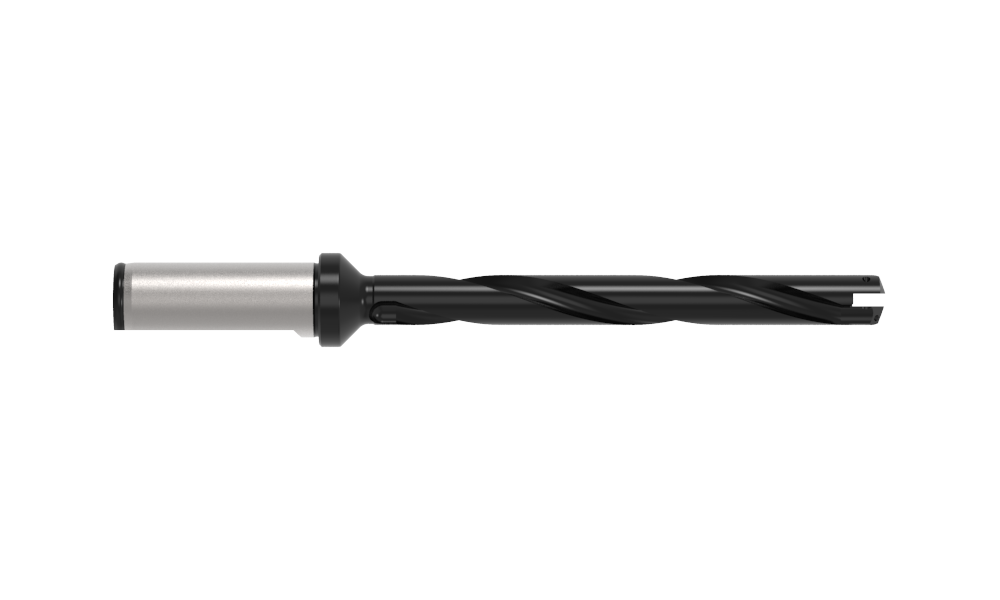

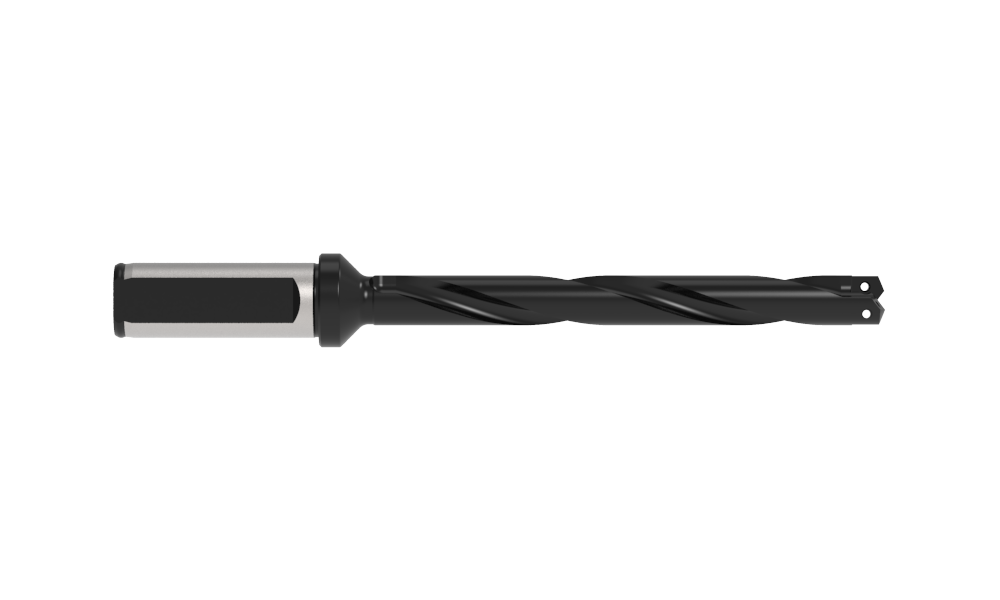

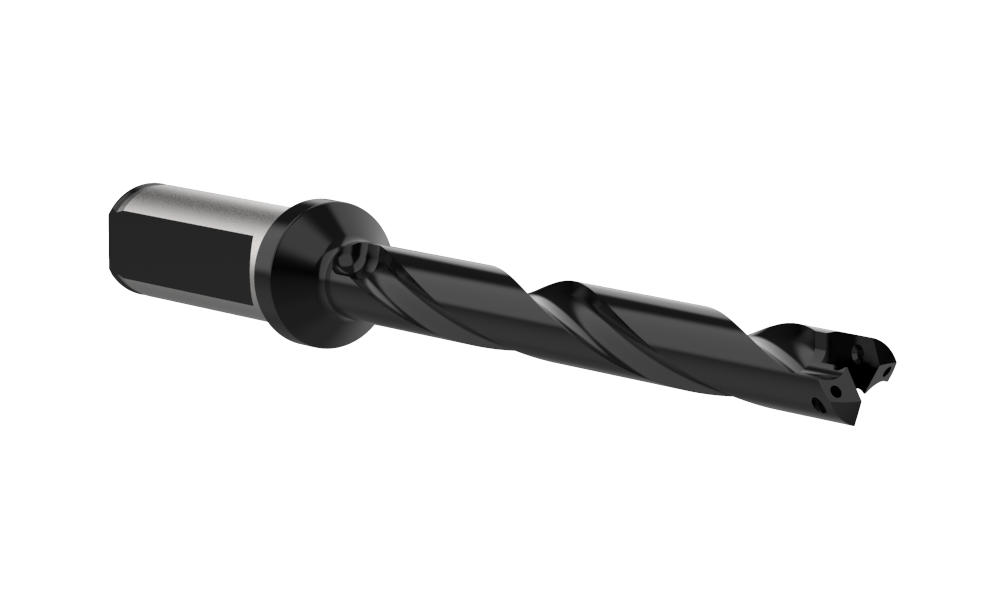

25000H-20FM
#0 TA EXT HLDR METR ST SHK
T-A® Holder






Product Specifications
Series0
Minimum diameter mm12.98
Maximum diameter mm17.67
Length TypeExtended
Flute TypeHelical
Overall length mm192.9
Tool Reference Length mm145.6
Body length mm142.9
Drill depth mm126.7
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72556-IP8-1     (Qty: 0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.52
CategoryStocked
