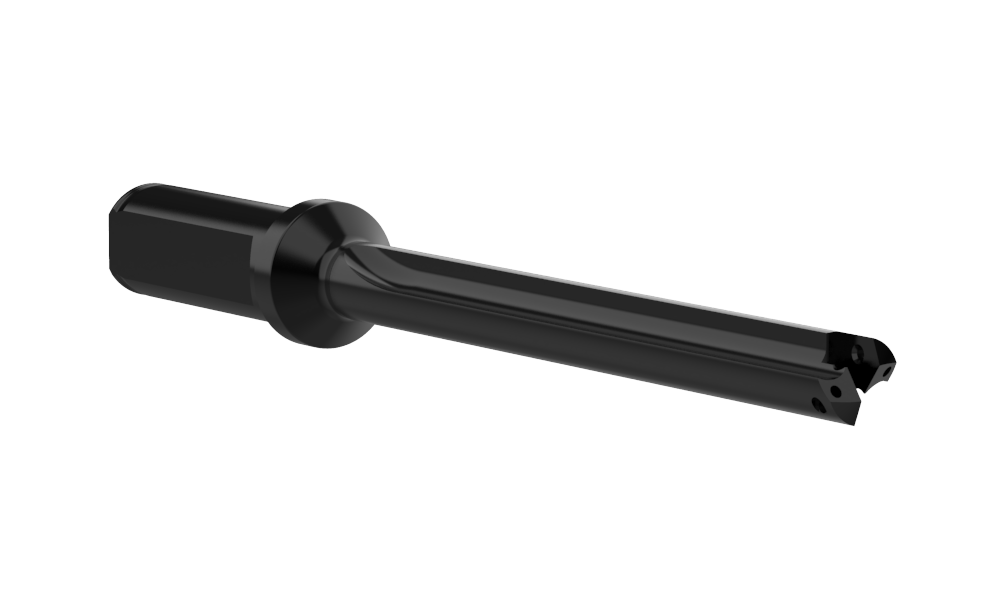

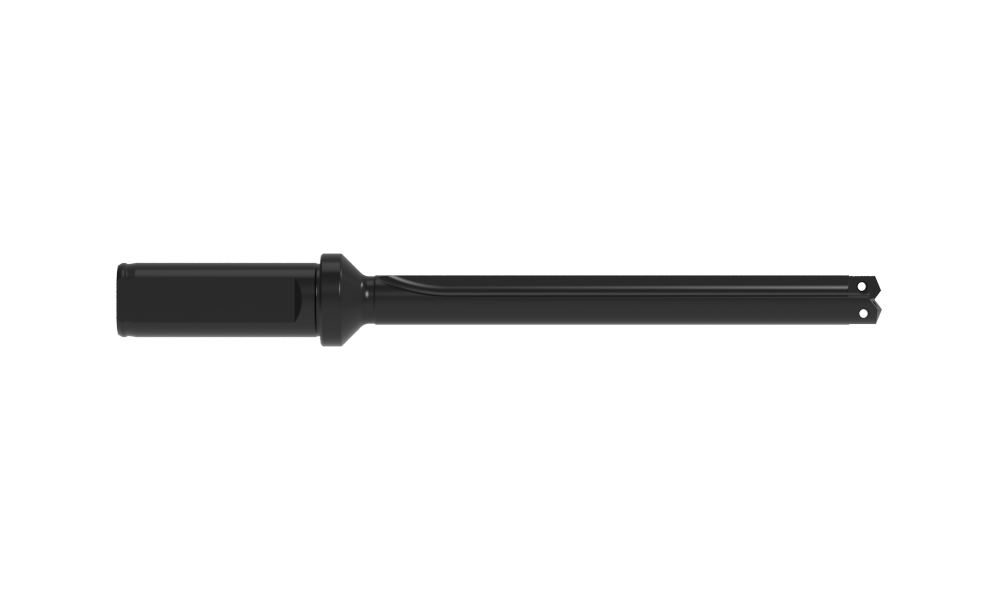

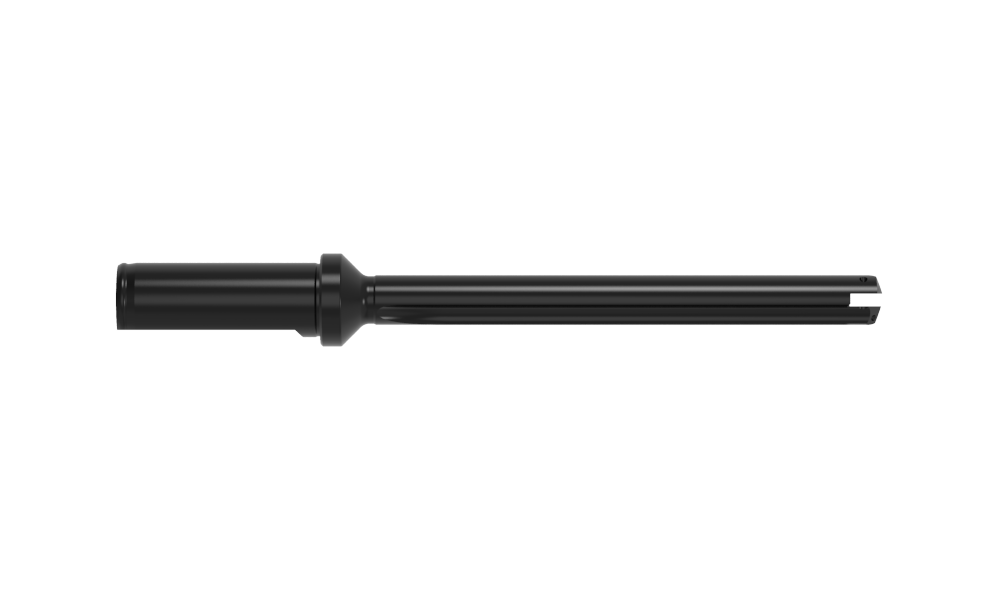

25000S-075F
#0 TA EXT HLDR FLANGED SHK
T-A® Holder






Product Specifications
Series0
Minimum diameter inch0.5110
Maximum diameter inch0.6959
Length TypeExtended
Flute TypeStraight
Overall length inch7.655
Tool Reference Length inch5.732
Body length inch5.625
Drill depth inch4.345
Shank typeFlanged
Shank diameter inch3/4
Shank length inch2.030
Pipe tap rear inch1/8 NPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72556-IP8-1     (Qty: 0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.51
CategoryStocked
