| Series | 2 |
| Minimum diameter inch | 0.9610 |
| Maximum diameter inch | 1.3809 |
| Length Type | Extended |
| Flute Type | Helical |
| Overall length inch | 18.781 |
| Tool Reference Length inch | 14.296 |
| Body length inch | 12.500 |
| Drill depth inch | 11.850 |
| Shank type | Morse Taper |
| Shank diameter inch | #4 MT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | Yes |

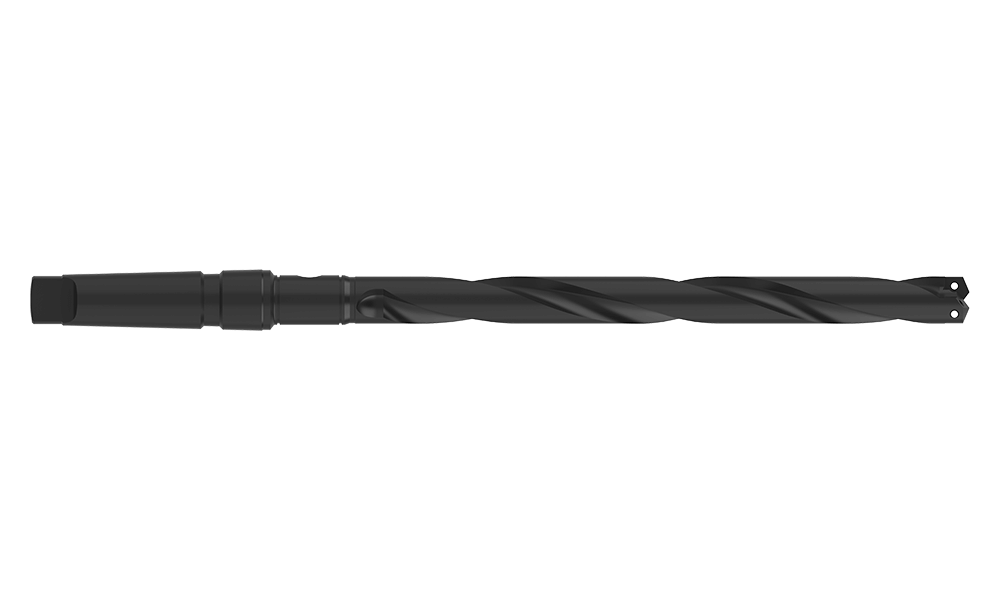

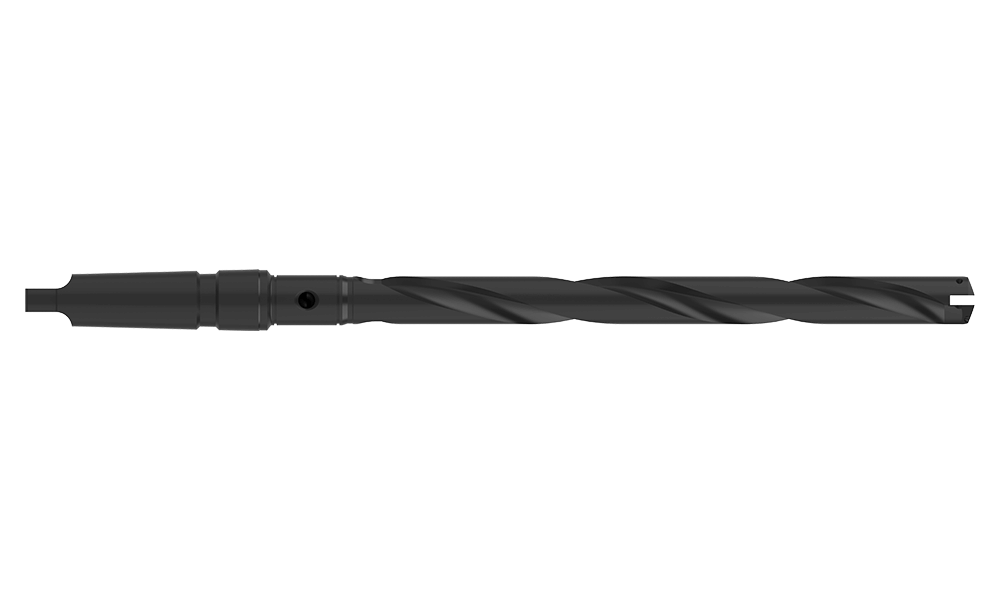

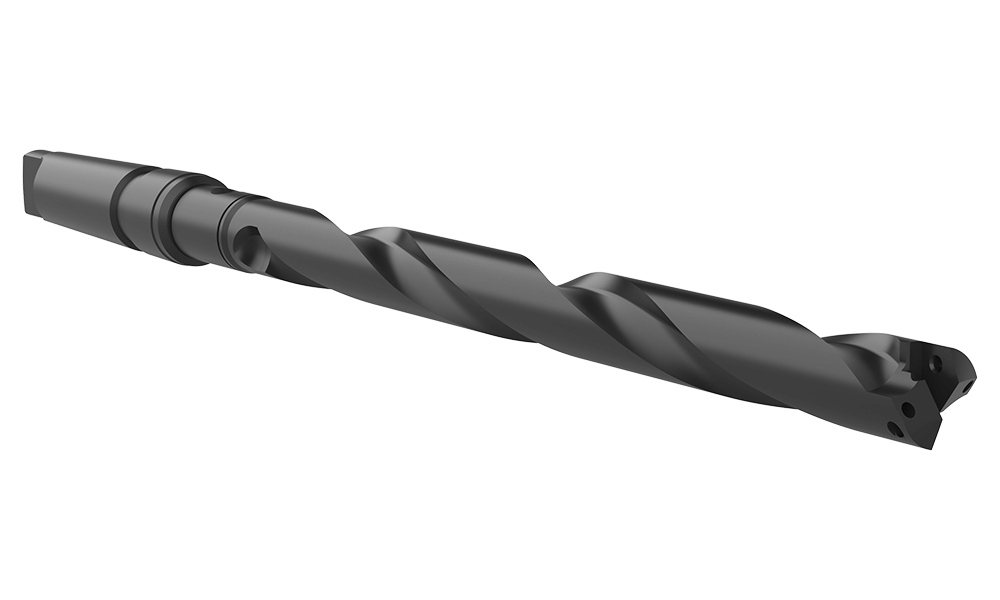

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
