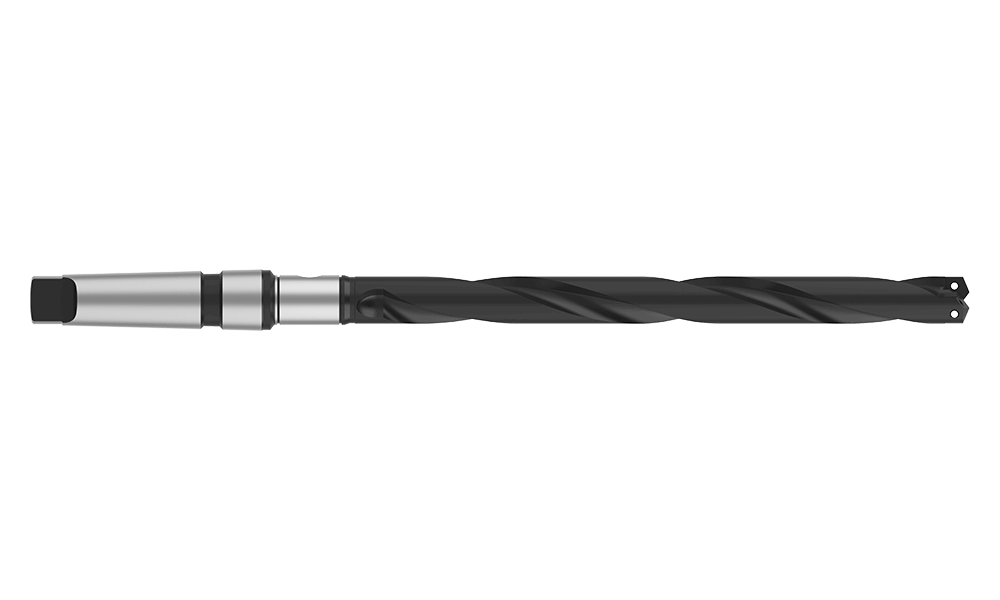

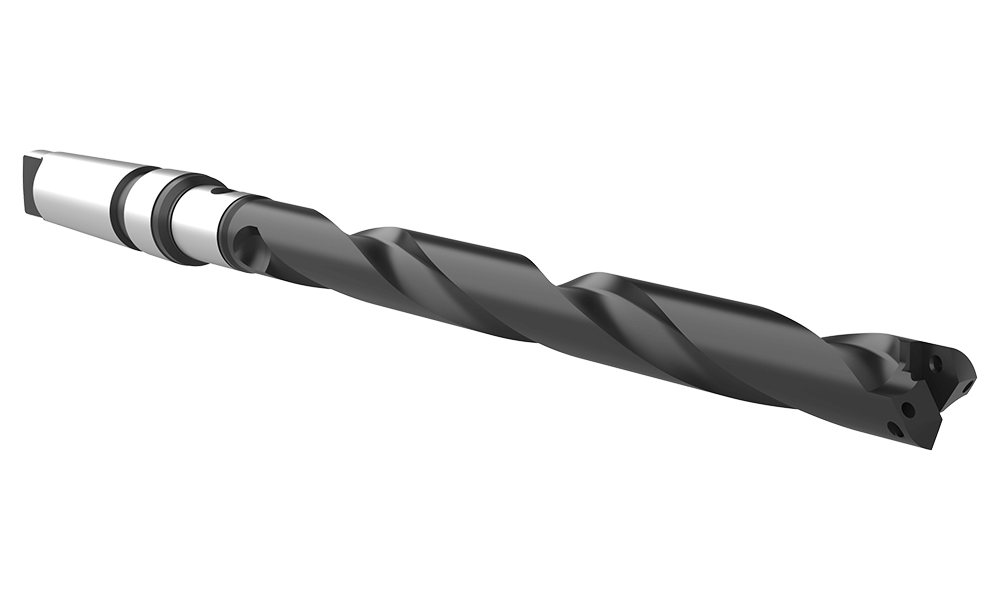

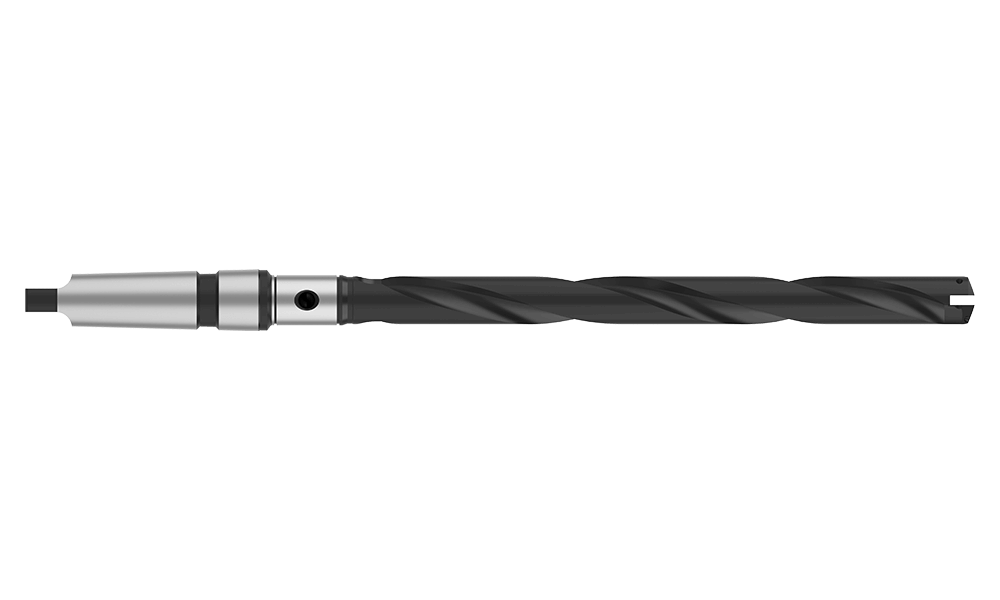

25020H-004M
#2 TA EXT HLDR METR TAPR SHK
T-A® Holder






Product Specifications
Series2
Minimum diameter mm24.41
Maximum diameter mm35.06
Length TypeExtended
Flute TypeHelical
Overall length mm477.0
Tool Reference Length mm363.1
Body length mm317.5
Drill depth mm301.0
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)3.27
CategoryStocked
