25025H-004I

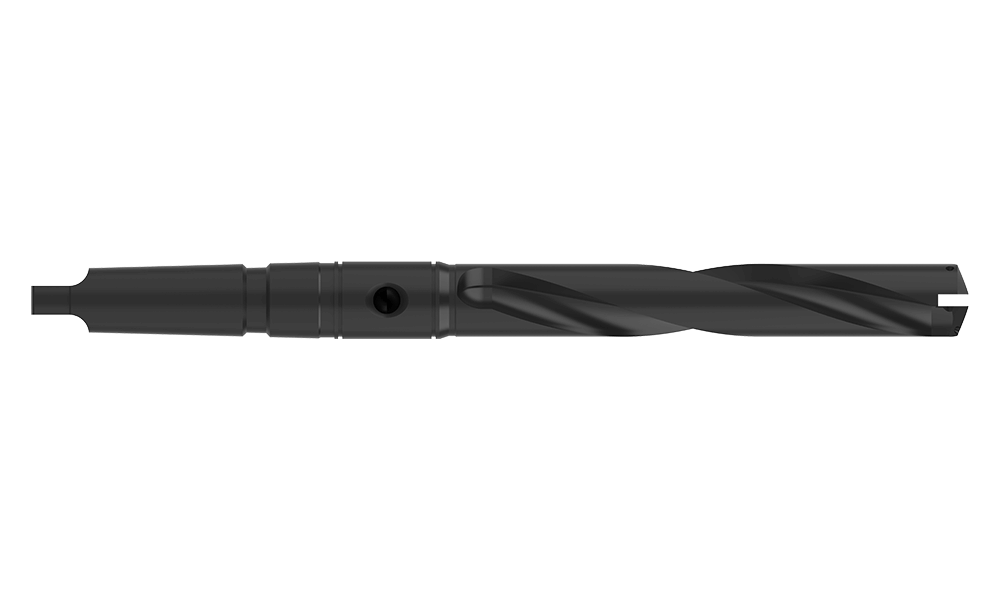

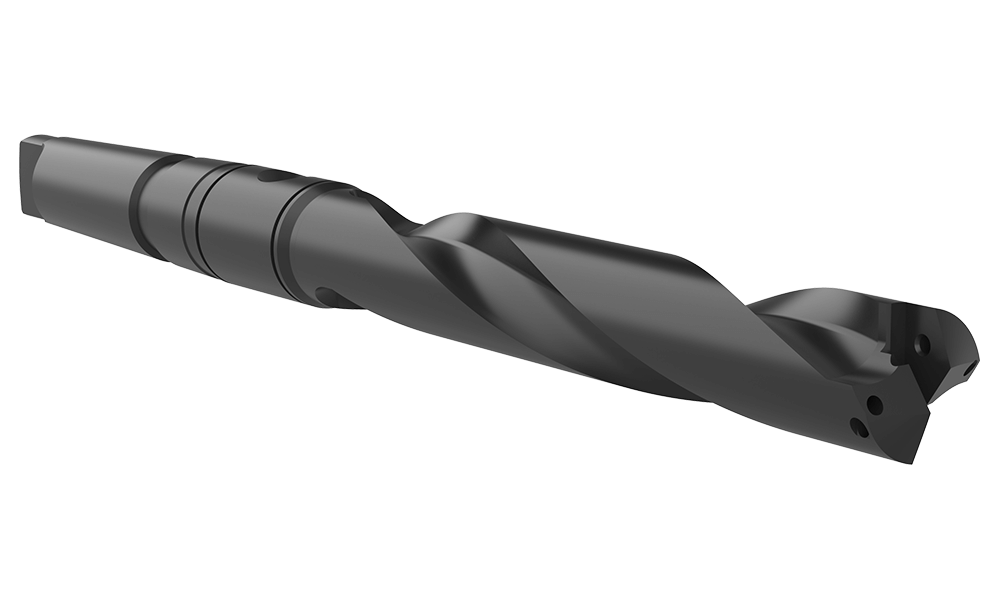

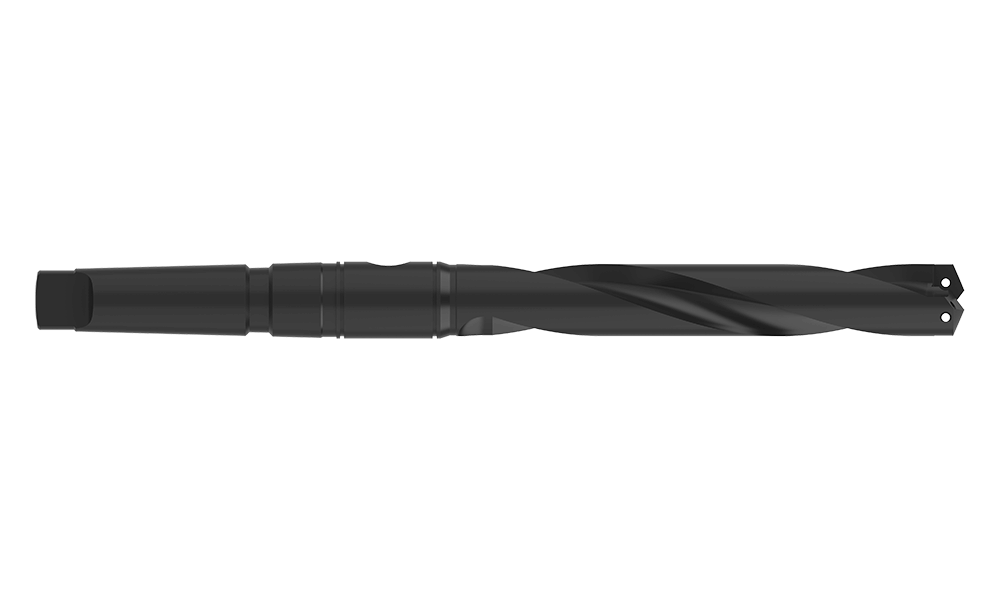

T-A® Replaceable Drill Body: 1.1875" - 1.3809", Extended, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 2
Sub-Series .5
Minimum diameter inch 1.1875
Maximum diameter inch 1.3809
Length Type Extended
Flute Type Helical
Overall length inch 19.062
Tool Reference Length inch 14.577
Body length inch 12.500
Drill depth inch 11.781
Shank type Morse Taper
Shank diameter inch #4 MT
Pipe tap side inch 1/4 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.38
Weight in kg (each) 1.99
Category Stocked
