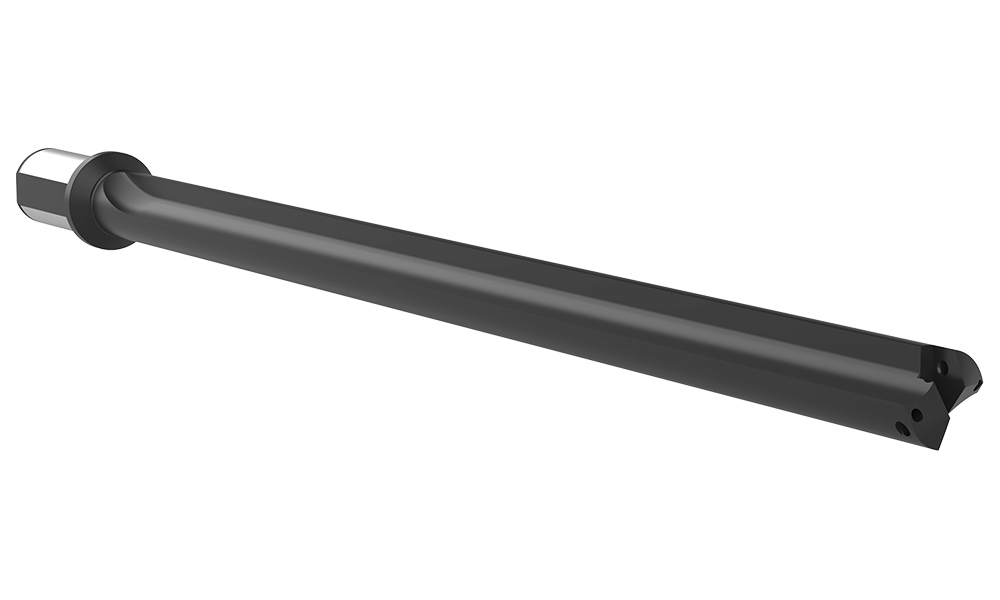

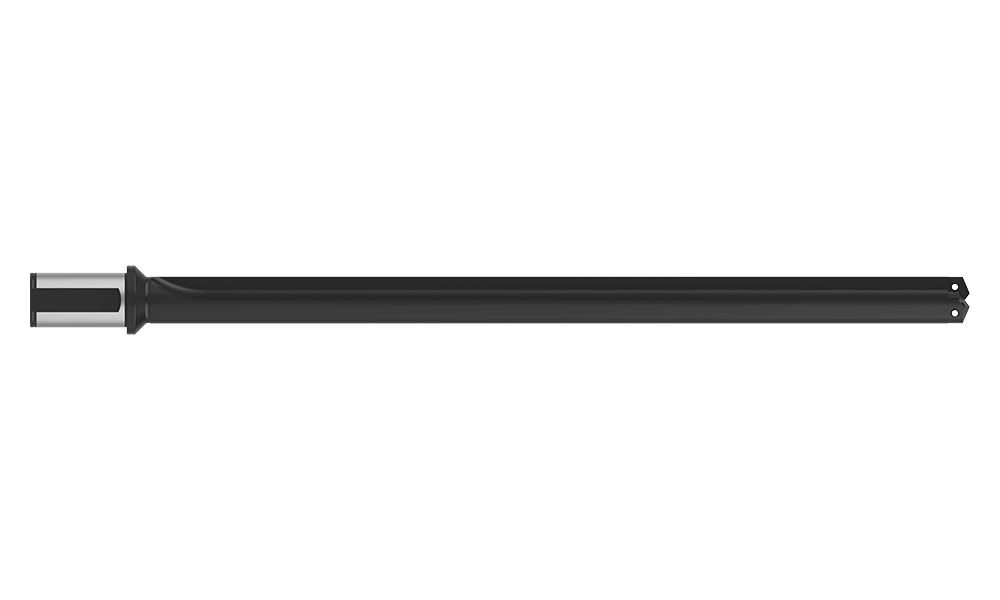

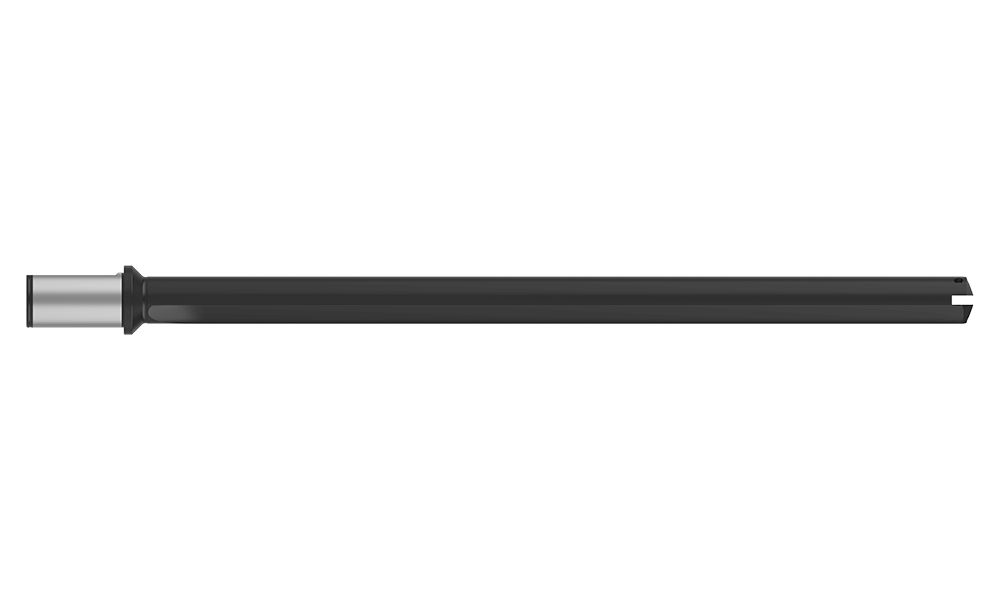

27030S-40FM
#3 TA EXT XL HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeXL
Flute TypeStraight
Overall length mm681.2
Tool Reference Length mm616.0
Body length mm611.2
Drill depth mm552.8
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Pipe tap side inch1/4
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7514-IP20-1     (Qty: 0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
8IP-20     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)8.42
CategoryStocked
