464003
BAL 3E 29-38MM MVS25-14

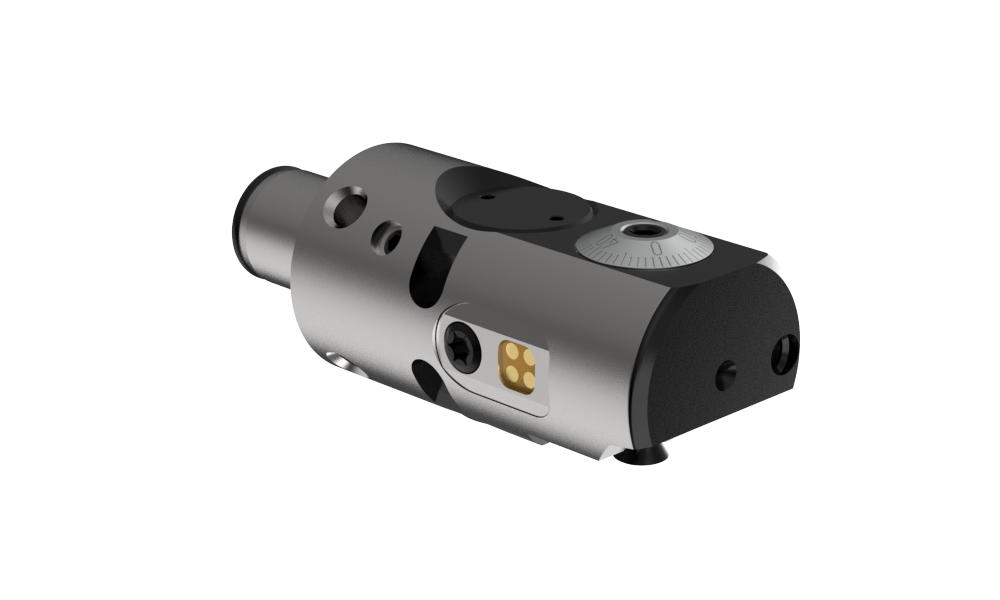

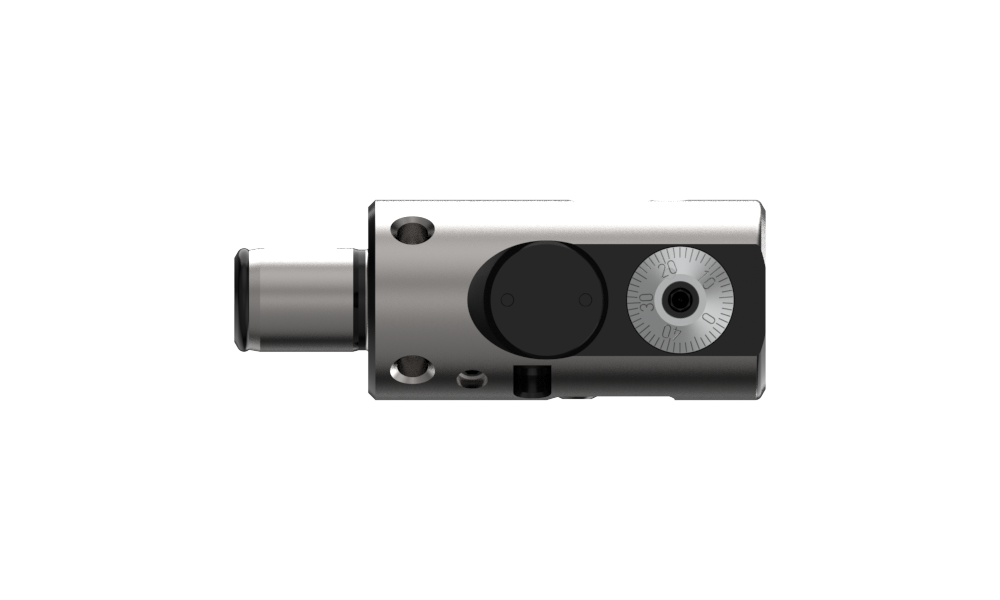

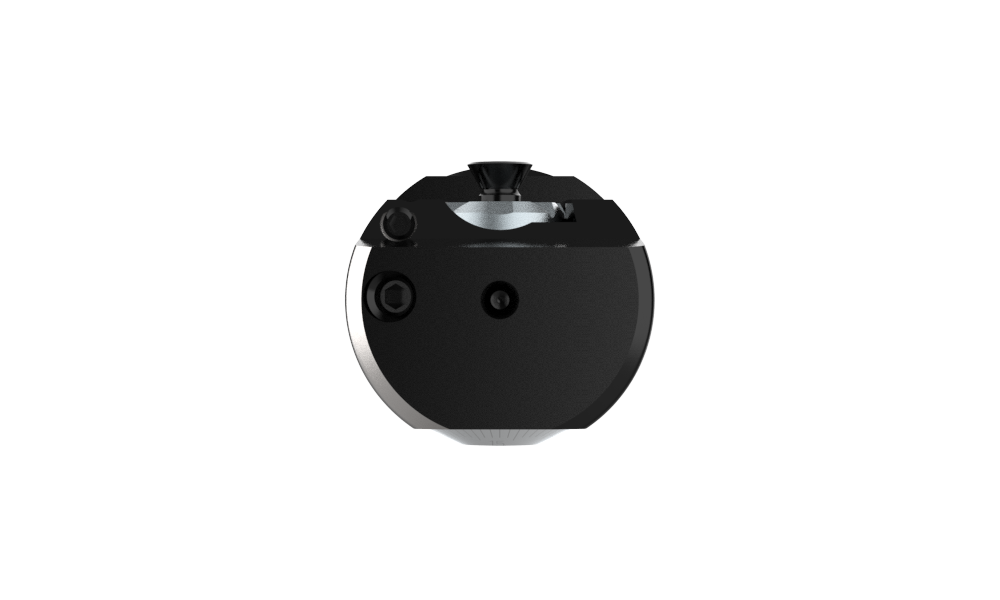

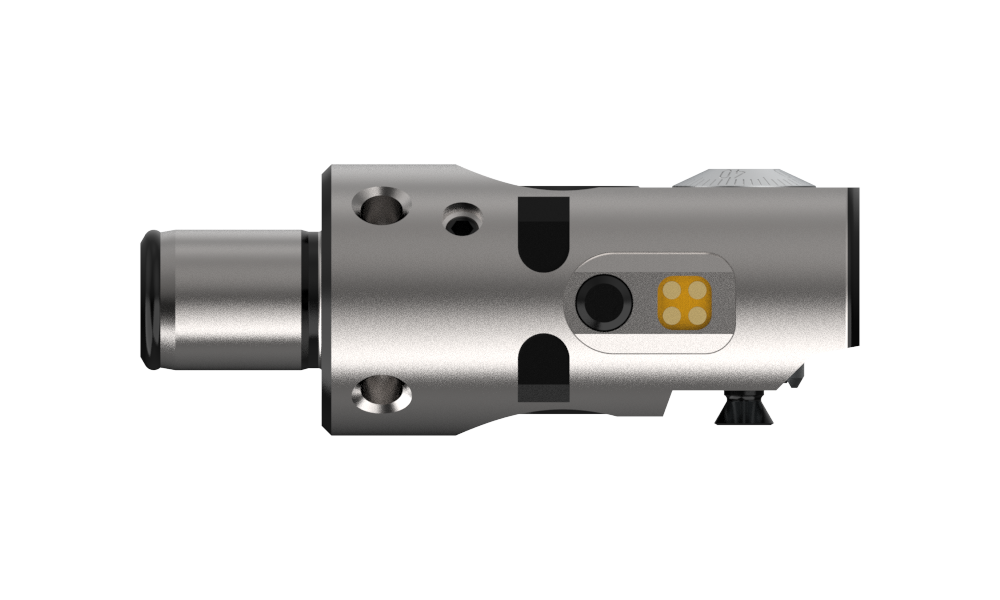

Wohlhaupter® Boring Head






Product Specifications
Type of ProductBoring Head
Minimum diameter mm29
Minimum diameter inch1.142
Maximum diameter mm38
Maximum diameter inch1.496
Working length mm56.00
Working length inch2.205
Body length mm53
Body length inch2.106
Body Diameter mm27
Body Diameter inch1.063
Male minor14
Male major25
Adjustment dial mm0.002
Adjustment TypeDigital
Digital Component3ETech (external)
Adjustment UnitMetric
Offset mm9
Offset inch0.354
MaterialSteel
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.441
CategoryStocked
