4C22H-25
GEN2 T-A® Replaceable Drill Insert: 0.9843" (25.00 mm), Standard Geometry, AM200®
Gen2 T-A® Insert

Add to cart image Add to list image







See Additional Technical Information
Default Image

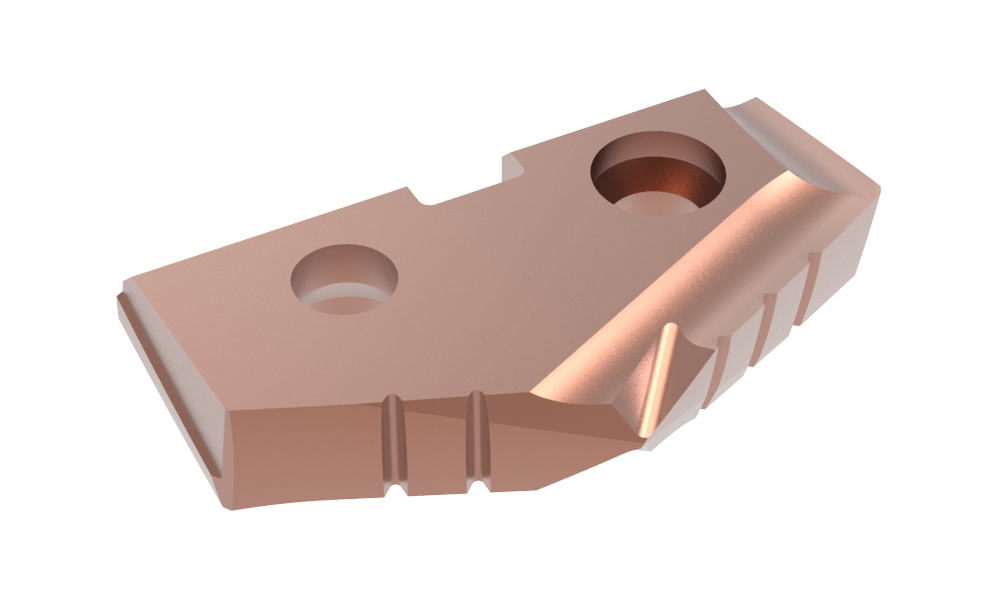

Angle

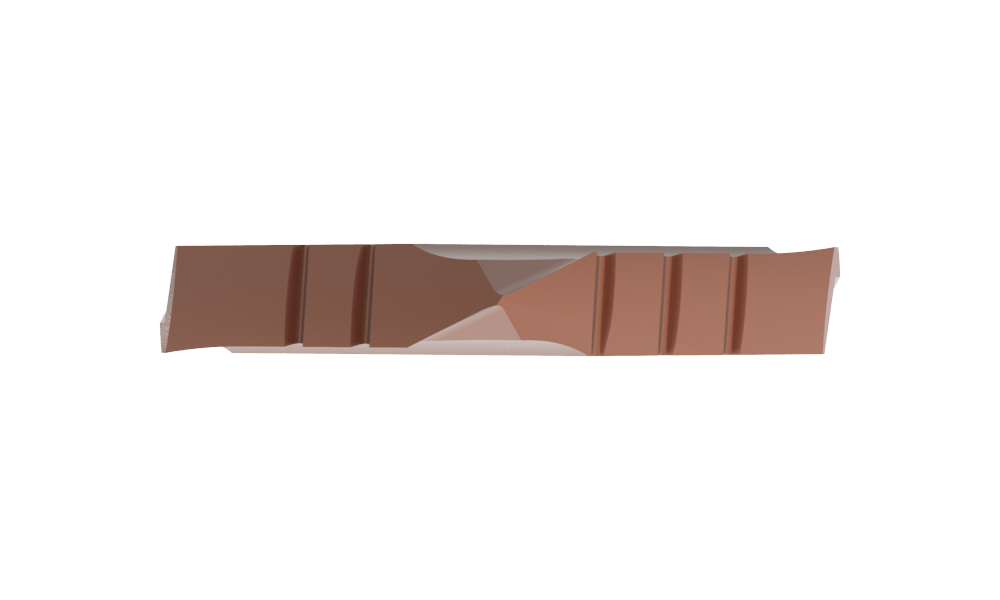

Front

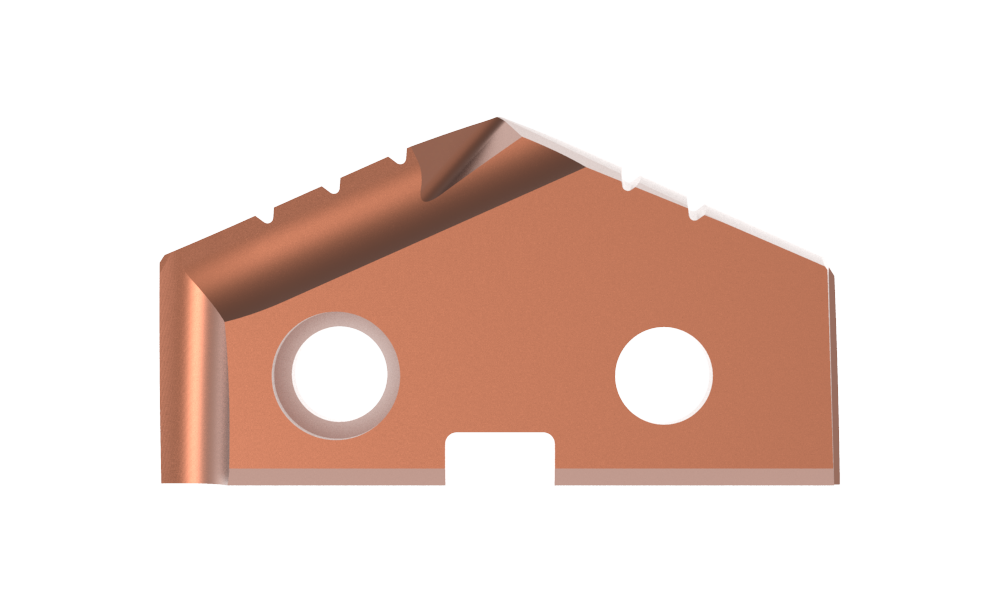

Top
Product Specifications
Series 2
Diameter Fractional Equivalent 63/64"
Diameter inch 0.9843
Diameter mm 25.00
Geometry Standard
Material Carbide
Grade C2 (K20)
Coating AM200®
Included Angle 132°
Thickness inch 3/16"
Type of Product Replaceable Drill Insert
Product Application General Purpose
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.024
Weight in kg (each) 0.01
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
