501055
Wohlhaupter® Serrated Body: 3.78" - 4.882" (96 mm -124 mm)
Wohlhaupter® Serrated Body

Add to cart image Add to list image







Default Image

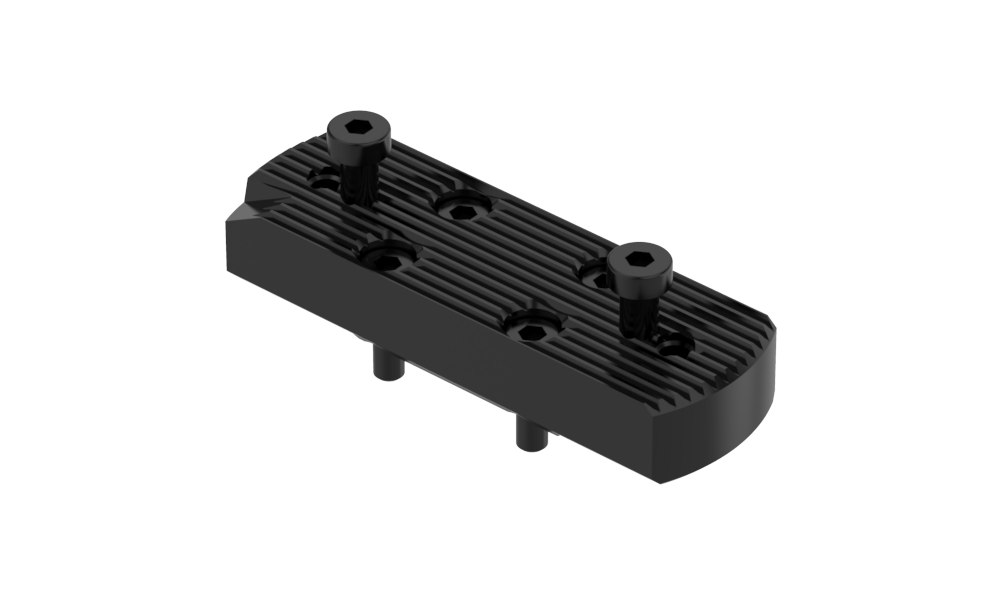

Angle

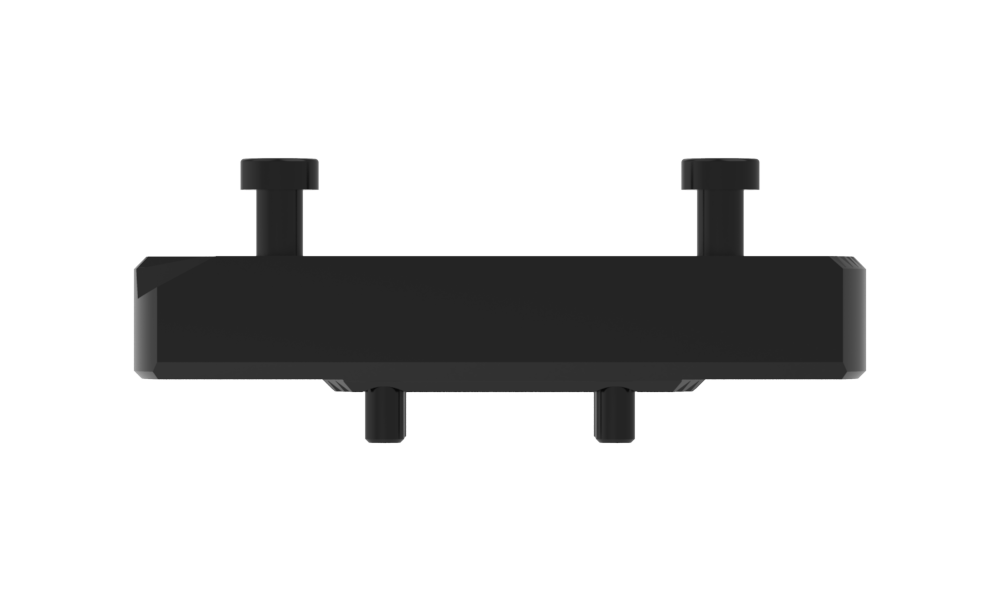

Side
Product Specifications
Type of Product Serrated Slide
Minimum diameter mm 96
Minimum diameter inch 3.78
Maximum diameter mm 124
Maximum diameter inch 4.882
Working length mm 32.5
Working length inch 1.28
Body length mm 16
Body length inch 0.63
Body Diameter mm 93
Body Diameter inch 3.661
Material Aluminum
Connection Style MVS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.32
Weight in kg (each) 0.15
Category Stocked
