G1731-060-20FM
#0 -06 JDS METRIC ACCUPORT

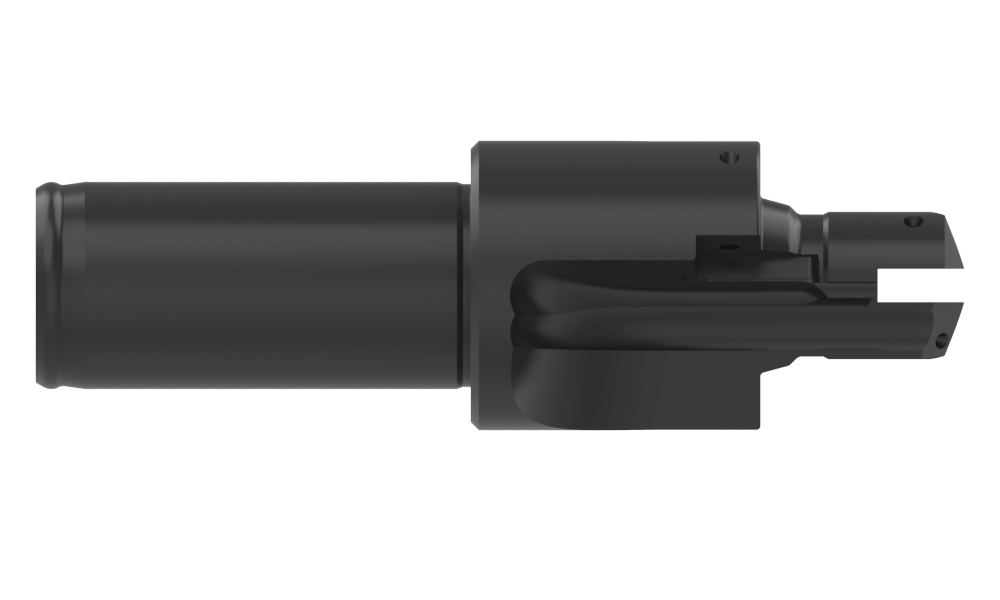

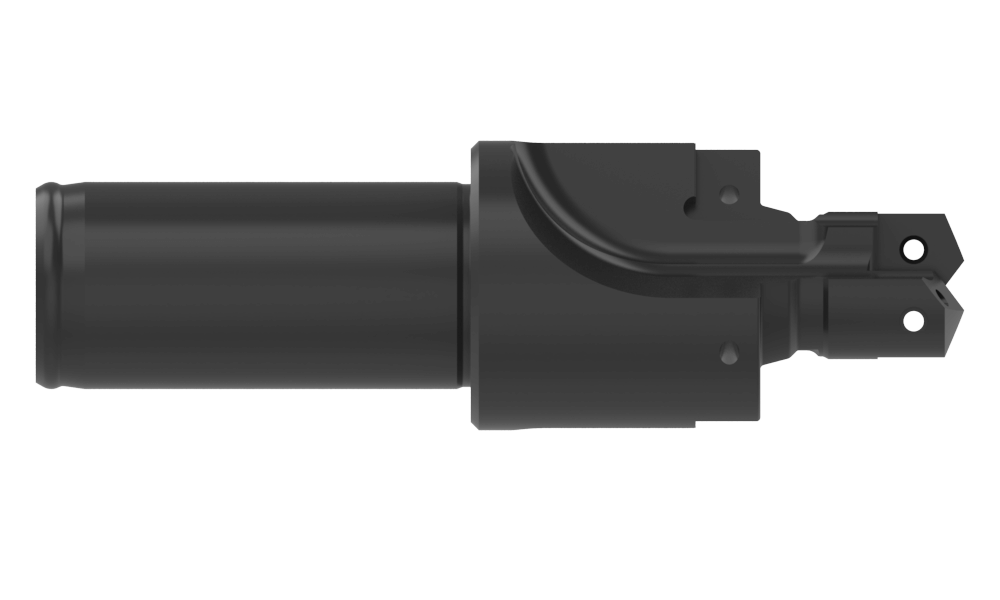

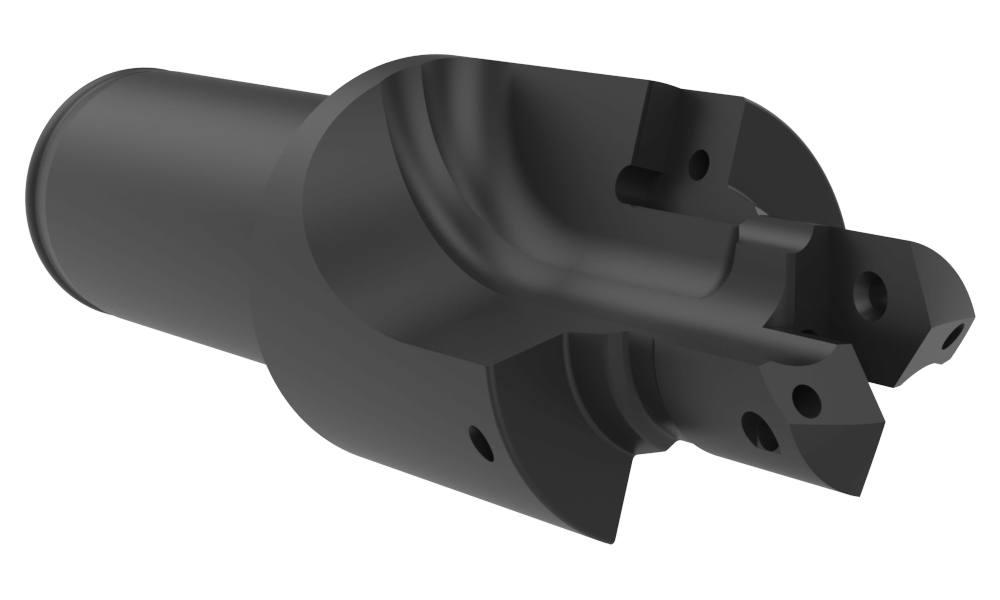

AccuPort 432® Holder






Product Specifications
Type of ProductReplaceable Port Form Body
Series0
Overall length inch3.63
Overall length mm92.2
Pipe tap rear mm1/8
Shank diameter mm20
Shank diameter inch0.787
Shank length mm41.9
Shank length inch1.65
Shank typeCylindrical
Pilot Diameter mm14.5
Pilot Diameter inch0.571
Pilot length mm19
Pilot length inch0.748
Tool Reference Length mm47.6
Tool Reference Length inch1.87
Port StandardJDS-G173.1
Tube Size-6
Port thread sizeM16 X 1.5
Spotface diameter mm29
Spotface diameter inch1.142
Seal angle15°
Seal angle diameter mm17.9
Seal angle diameter inch0.705
Seal angle length mm2.65
Seal angle length inch0.104
Spotface to shoulder length inch1.117
Spotface to shoulder length mm28.4
Minor Diameter Insert Carbide4C20H-14.5
Minor Diameter Insert Super Cobalt450H-14.5


Related Items
72556-IP8-1     (Qty: 0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
72567-IP8-1     (Qty: 0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.43
CategoryStocked
