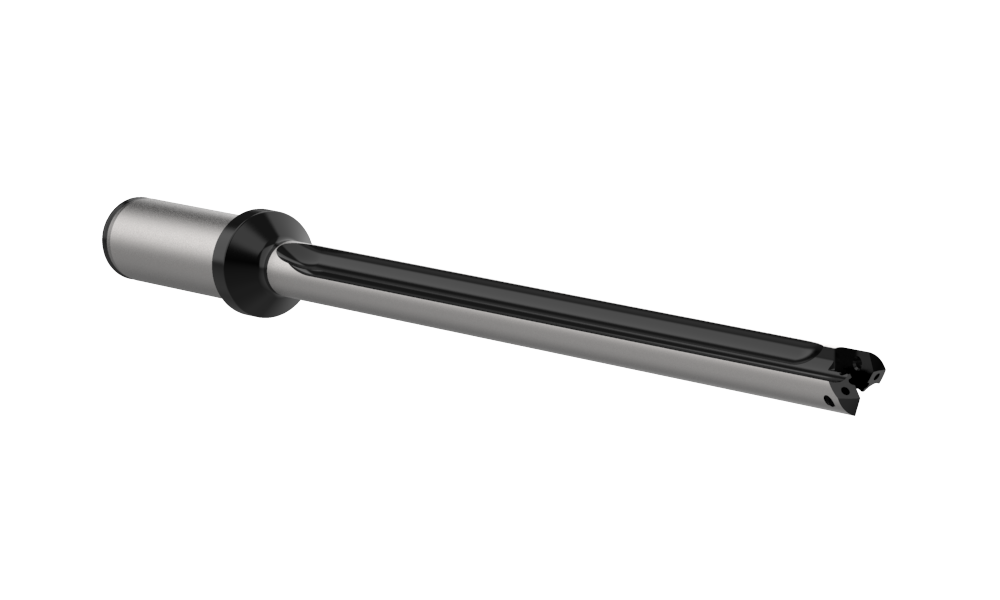

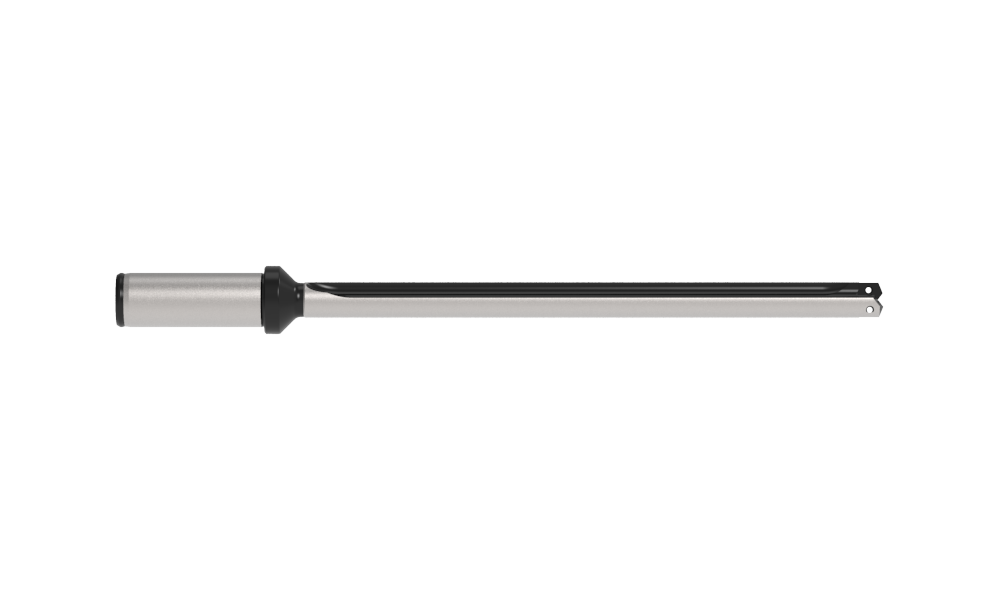

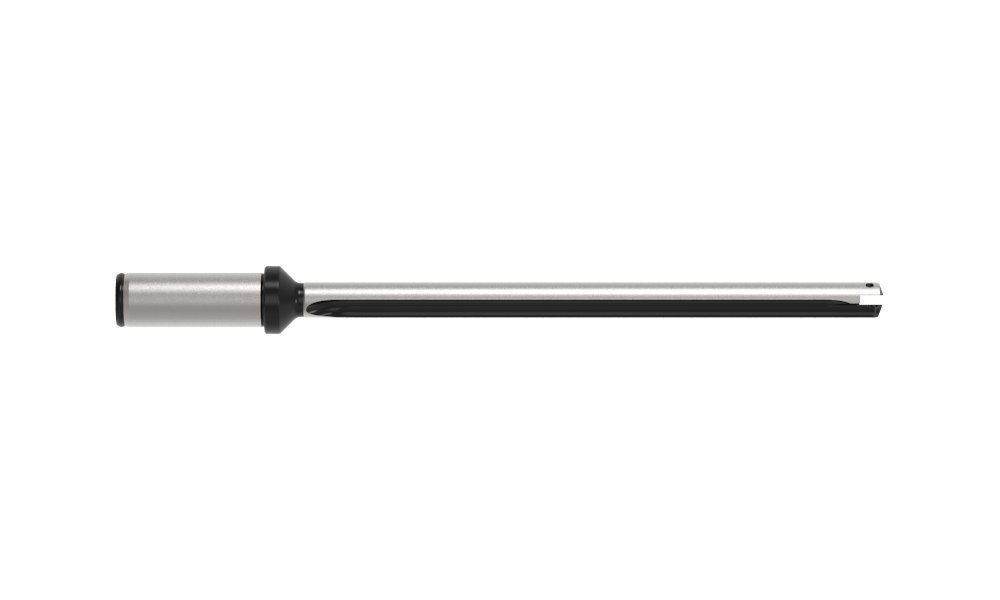

HTA0A12-20CM
0-A TA PRO HLD 12XD 20MM CYL
T-A Pro® Holder





See Additional Technical Information

Product Specifications
Series0
Sub-SeriesA
Minimum diameter mm12.70
Maximum diameter mm17.64
Length Type12xD
Flute TypeStraight
Overall length mm265.7
Tool Reference Length mm218.4
Body length mm215.7
Drill depth mm183.8
Shank typeCylindrical
Shank diameter mm20
Shank length mm50.0
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance


Related Items
72556-IP8-1     (Qty: 0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.62
CategoryStocked
