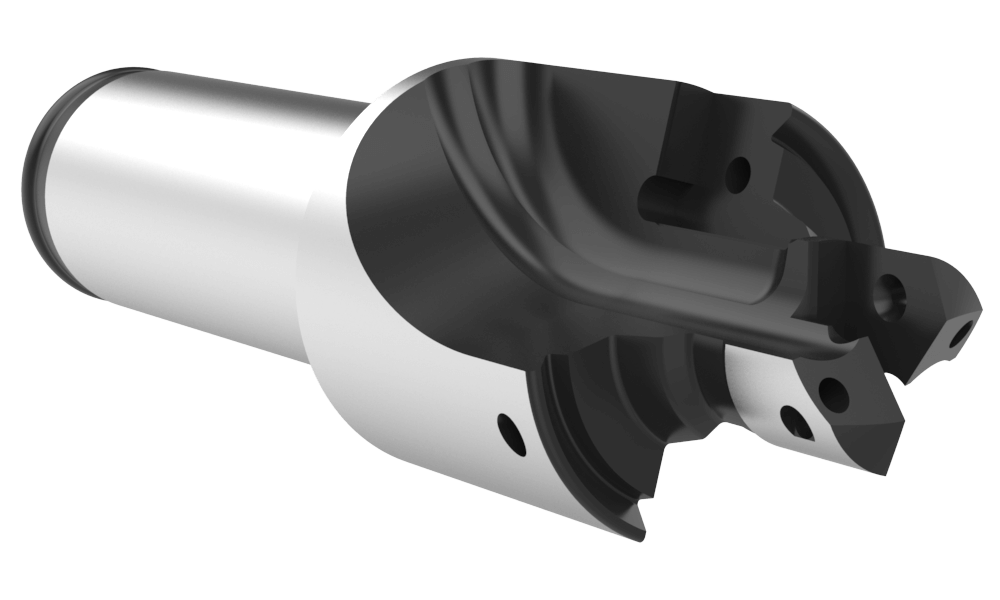

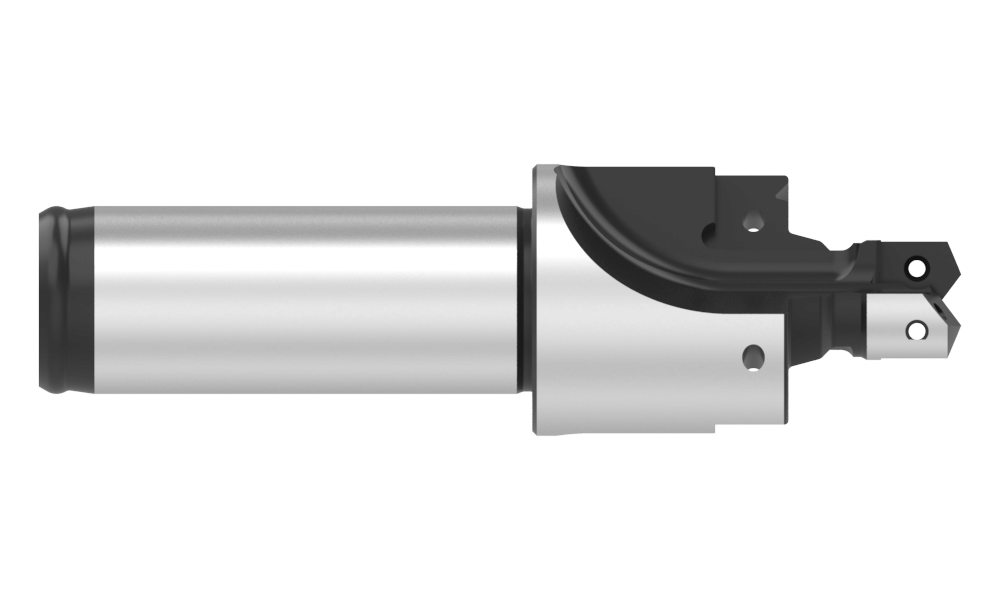

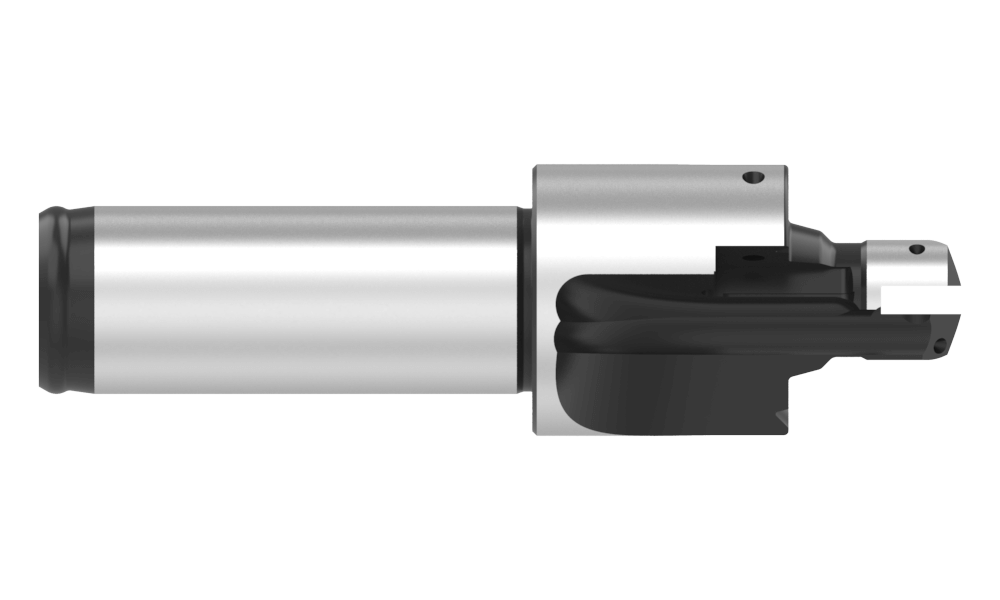

Type of Product | Replaceable Port Form Body |
Series | Y |
Overall length inch | 3.18 |
Overall length mm | 80.7 |
Pipe tap rear mm | 1/16 |
Shank diameter mm | 16 |
Shank diameter inch | 0.63 |
Shank length mm | 41.9 |
Shank length inch | 1.65 |
Shank type | Cylindrical |
Pilot Diameter mm | 10.5 |
Pilot Diameter inch | 0.413 |
Pilot length mm | 14.1 |
Pilot length inch | 0.556 |
Tool Reference Length mm | 38.8 |
Tool Reference Length inch | 1.527 |
Port Standard | ISO 6149 |
Tube Size | -4 |
Port thread size | M12 X 1.5 |
Spotface diameter mm | 24 |
Spotface diameter inch | 0.945 |
Seal angle | 15° |
Seal angle diameter mm | 13.81 |
Seal angle diameter inch | 0.544 |
Seal angle length mm | 2.6 |
Seal angle length inch | 0.102 |
Spotface to shoulder length inch | 0.876 |
Spotface to shoulder length mm | 22.2 |
Minor Diameter Insert Carbide | 4C1YH-10.5 |
Minor Diameter Insert Super Cobalt | 45YH-10.5 |
