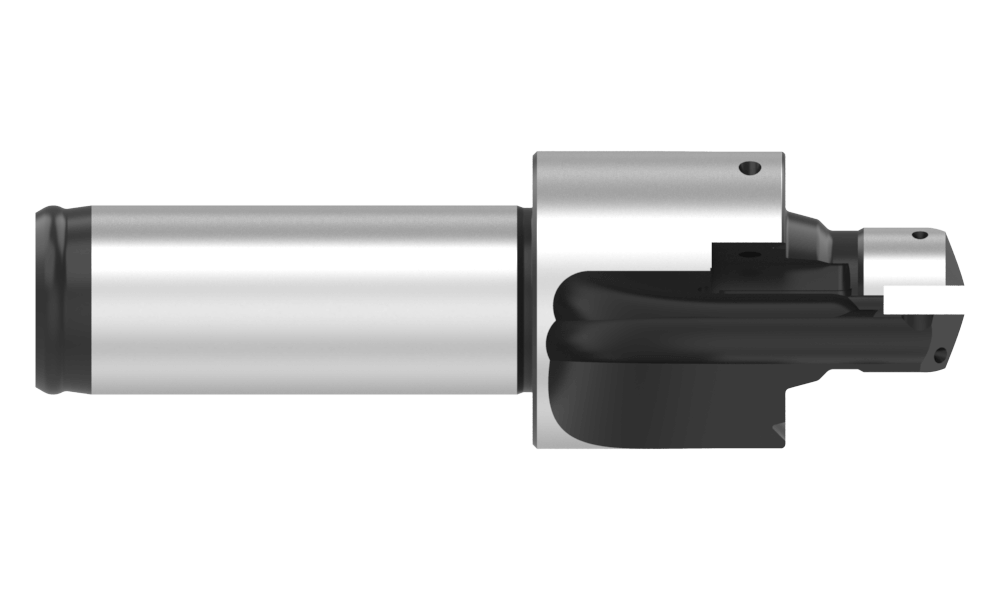

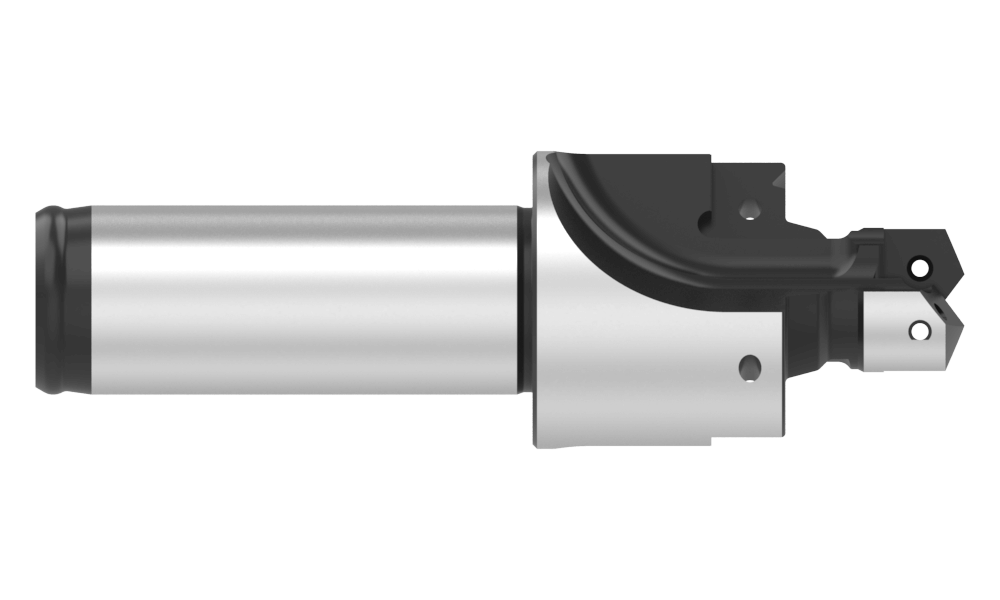

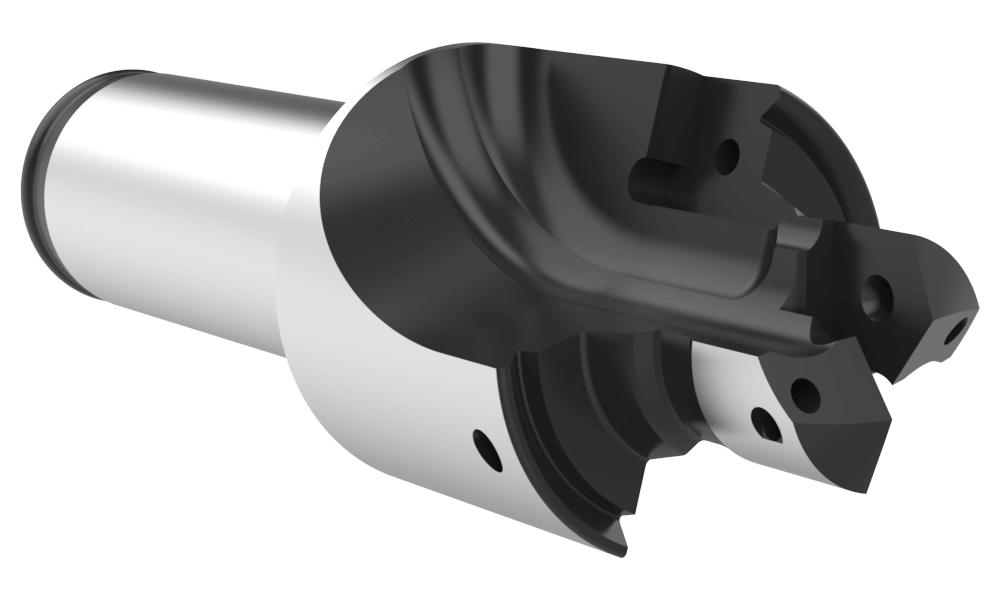

| Type of Product | Replaceable Port Form Body |
| Series | Z |
| Overall length inch | 3.18 |
| Overall length mm | 80.7 |
| Pipe tap rear mm | 1/16 |
| Shank diameter mm | 16 |
| Shank diameter inch | 0.63 |
| Shank length mm | 41.9 |
| Shank length inch | 1.65 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 12.5 |
| Pilot Diameter inch | 0.492 |
| Pilot length mm | 14.1 |
| Pilot length inch | 0.556 |
| Tool Reference Length mm | 38.8 |
| Tool Reference Length inch | 1.527 |
| Port Standard | ISO 6149 |
| Tube Size | -5 |
| Port thread size | M14 X 1.5 |
| Spotface diameter mm | 26 |
| Spotface diameter inch | 1.024 |
| Seal angle | 15° |
| Seal angle diameter mm | 15.8 |
| Seal angle diameter inch | 0.623 |
| Seal angle length mm | 2.6 |
| Seal angle length inch | 0.102 |
| Spotface to shoulder length inch | 0.858 |
| Spotface to shoulder length mm | 21.8 |
| Minor Diameter Insert Carbide | 4C1ZH-12.5 |
| Minor Diameter Insert Super Cobalt | 45ZH-12.5 |
