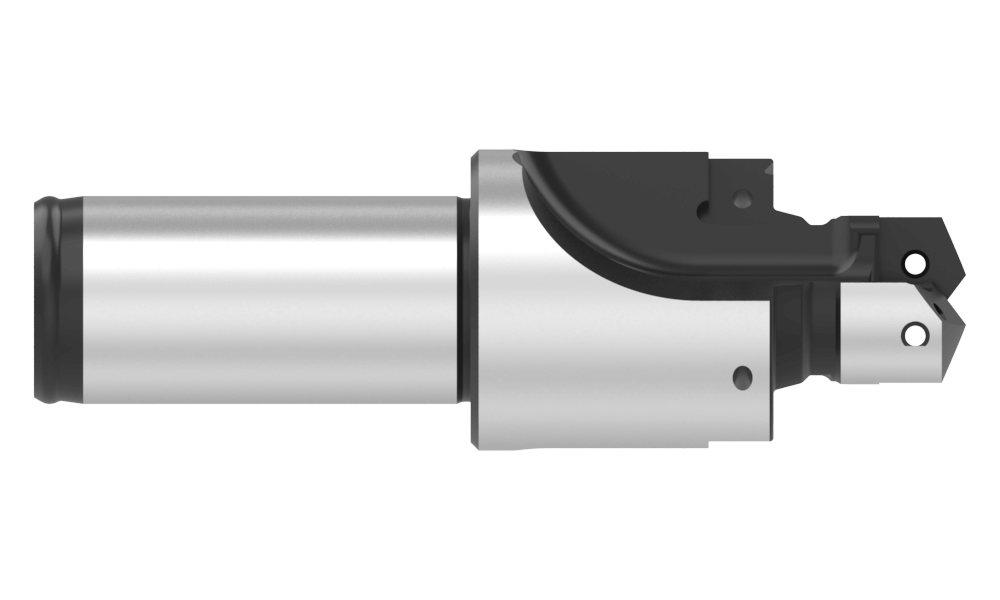

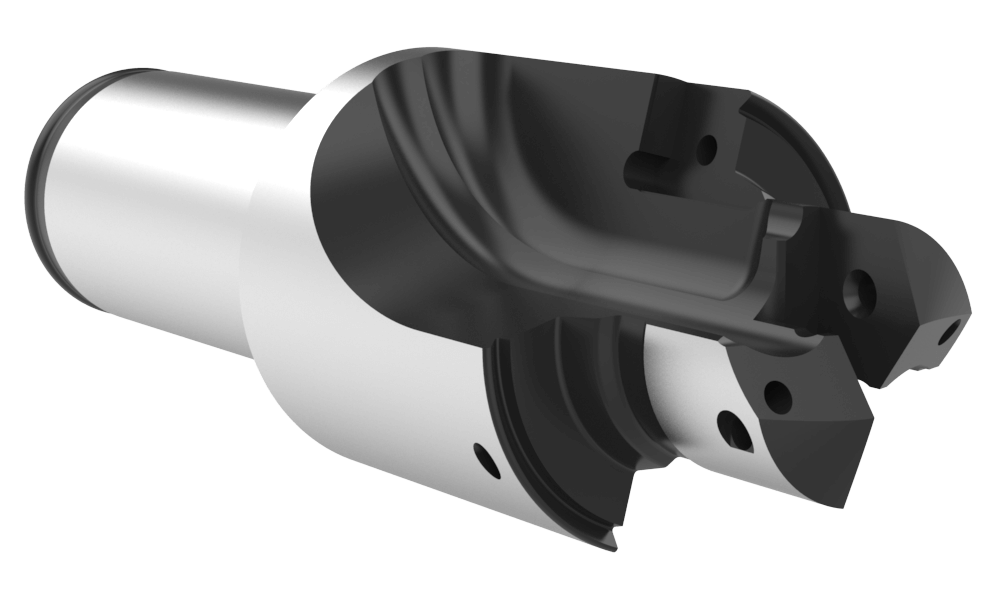

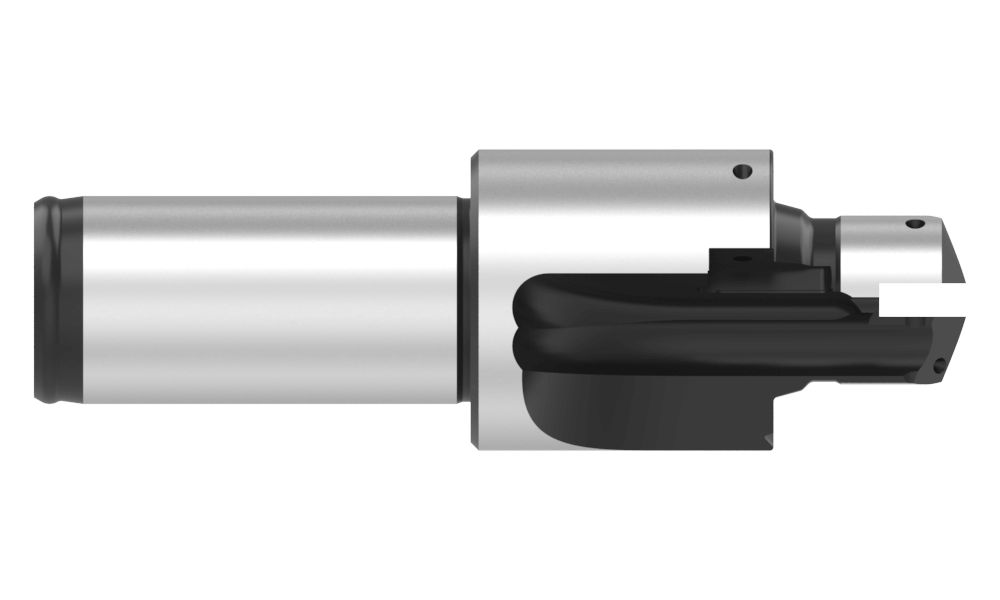

| Type of Product | Replaceable Port Form Body |
| Series | 0.5 |
| Overall length inch | 3.63 |
| Overall length mm | 92.2 |
| Pipe tap rear mm | 1/8 |
| Shank diameter mm | 20 |
| Shank diameter inch | 0.787 |
| Shank length mm | 41.9 |
| Shank length inch | 1.65 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 16.5 |
| Pilot Diameter inch | 0.65 |
| Pilot length mm | 17.1 |
| Pilot length inch | 0.674 |
| Tool Reference Length mm | 50.3 |
| Tool Reference Length inch | 1.982 |
| Port Standard | ISO 6149 |
| Tube Size | -8 |
| Port thread size | M18 X 1.5 |
| Spotface diameter mm | 30 |
| Spotface diameter inch | 1.181 |
| Seal angle | 15° |
| Seal angle diameter mm | 19.8 |
| Seal angle diameter inch | 0.781 |
| Seal angle length mm | 2.6 |
| Seal angle length inch | 0.102 |
| Spotface to shoulder length inch | 1.164 |
| Spotface to shoulder length mm | 29.6 |
| Minor Diameter Insert Carbide | 4C10H-16.5 |
| Minor Diameter Insert Super Cobalt | 450H-16.5 |
