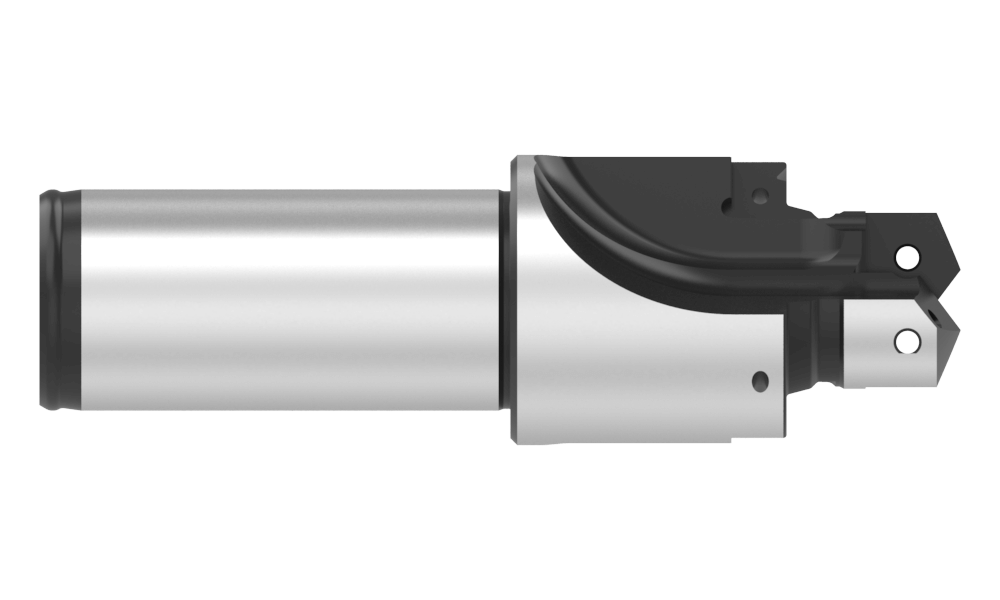

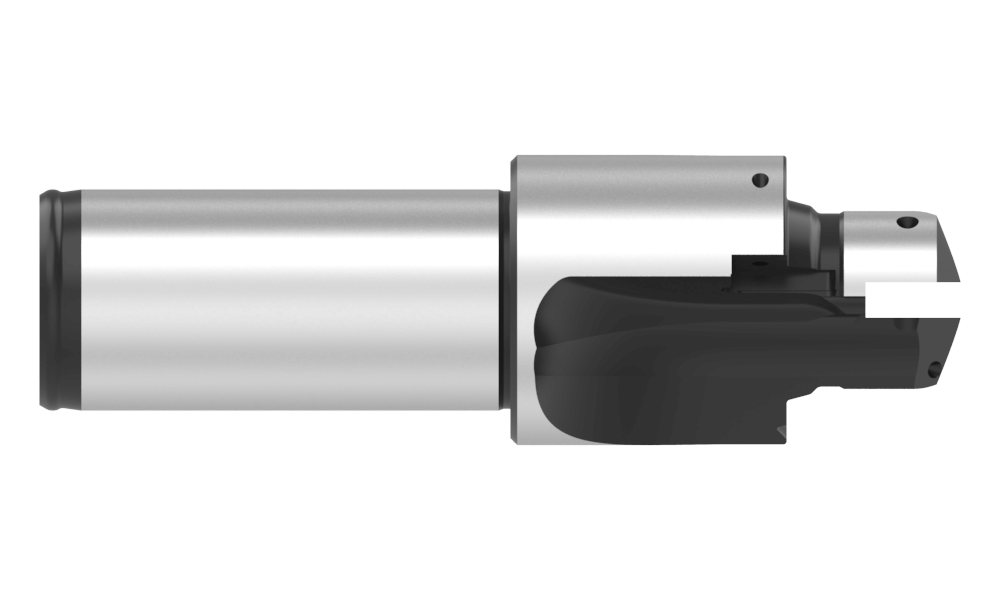

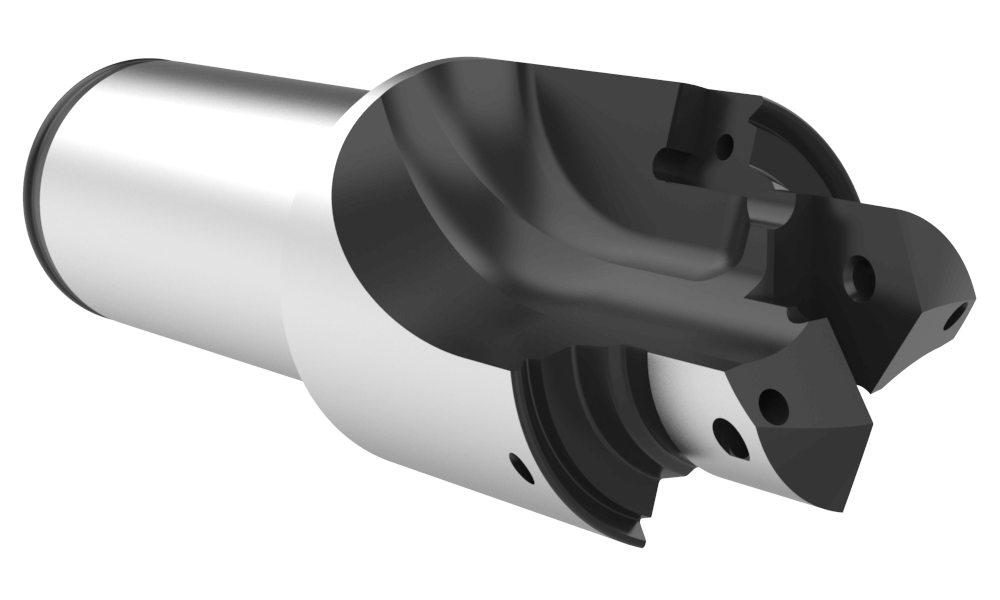

| Type of Product | Replaceable Port Form Body |
| Series | 1 |
| Overall length inch | 4.23 |
| Overall length mm | 107.5 |
| Pipe tap rear mm | 1/8 |
| Shank diameter mm | 25 |
| Shank diameter inch | 0.984 |
| Shank length mm | 53.1 |
| Shank length inch | 2.091 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 20.5 |
| Pilot Diameter inch | 0.807 |
| Pilot length mm | 18.2 |
| Pilot length inch | 0.717 |
| Tool Reference Length mm | 54.4 |
| Tool Reference Length inch | 2.14 |
| Port Standard | ISO 6149 |
| Tube Size | -10 |
| Port thread size | M22 X 1.5 |
| Spotface diameter mm | 34 |
| Spotface diameter inch | 1.339 |
| Seal angle | 15° |
| Seal angle diameter mm | 23.8 |
| Seal angle diameter inch | 0.938 |
| Seal angle length mm | 2.6 |
| Seal angle length inch | 0.102 |
| Spotface to shoulder length inch | 1.246 |
| Spotface to shoulder length mm | 31.6 |
| Minor Diameter Insert Carbide | 4C11H-20.5 |
| Minor Diameter Insert Super Cobalt | 451H-20.5 |
