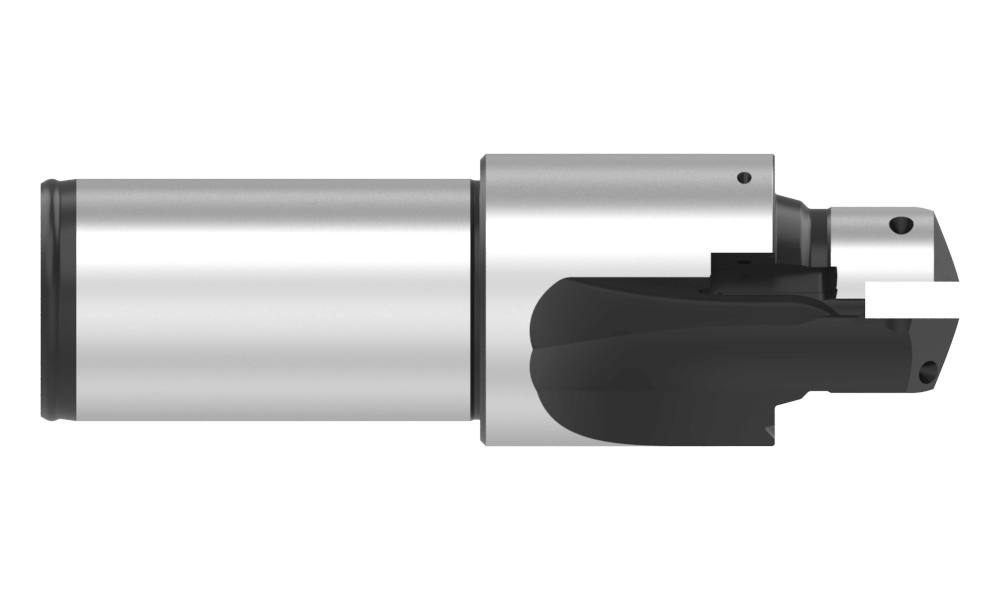

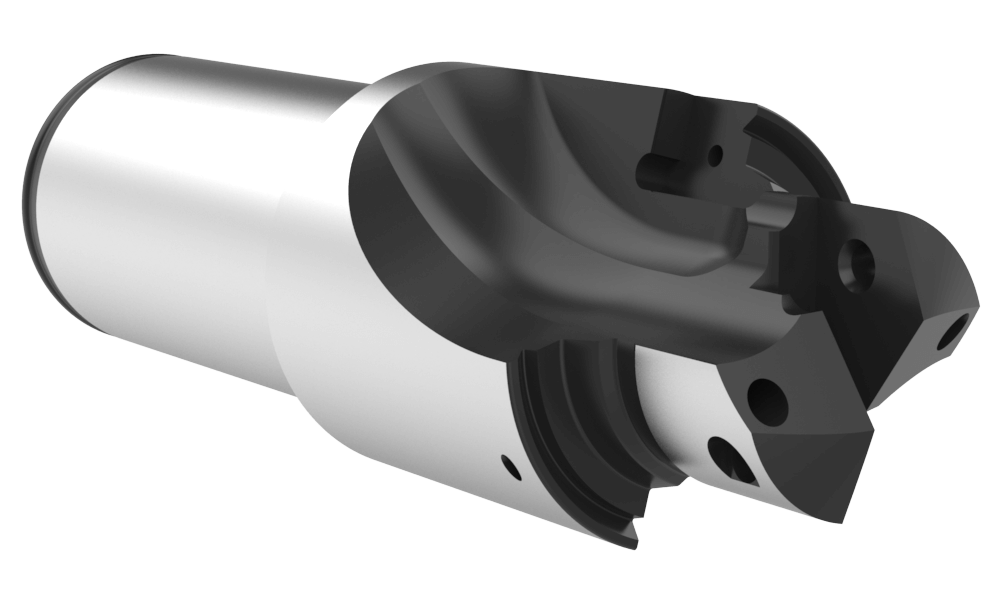

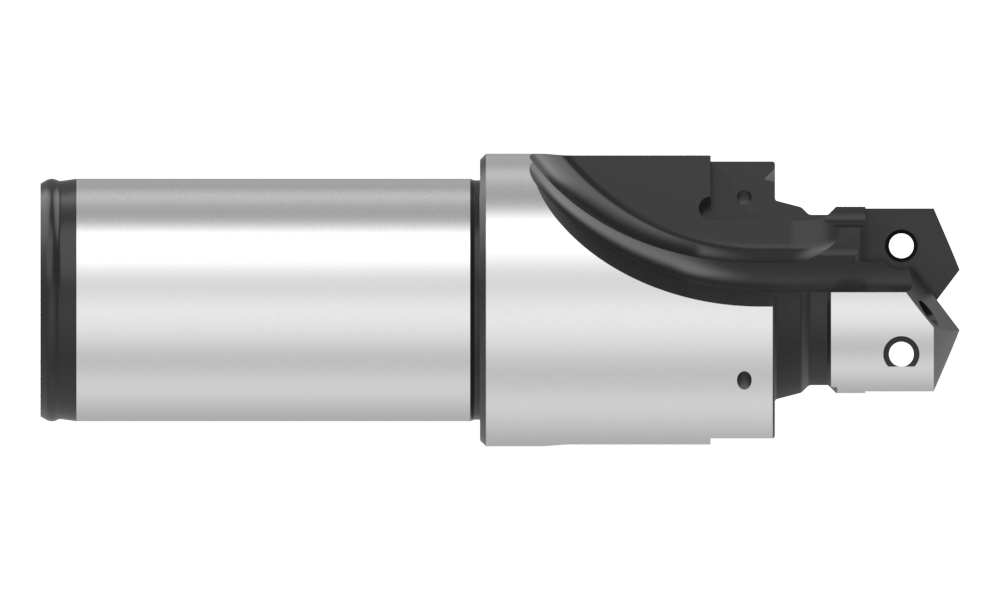

| Type of Product | Replaceable Port Form Body |
| Series | 2 |
| Overall length inch | 4.92 |
| Overall length mm | 125 |
| Pipe tap rear mm | 1/4 |
| Shank diameter mm | 32 |
| Shank diameter inch | 1.26 |
| Shank length mm | 57.9 |
| Shank length inch | 2.28 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 25 |
| Pilot Diameter inch | 0.984 |
| Pilot length mm | 22.2 |
| Pilot length inch | 0.874 |
| Tool Reference Length mm | 67.1 |
| Tool Reference Length inch | 2.64 |
| Port Standard | ISO 6149 |
| Tube Size | -12 |
| Port thread size | M27 X 2 |
| Spotface diameter mm | 40 |
| Spotface diameter inch | 1.575 |
| Seal angle | 15° |
| Seal angle diameter mm | 29.4 |
| Seal angle diameter inch | 1.159 |
| Seal angle length mm | 3.3 |
| Seal angle length inch | 0.13 |
| Spotface to shoulder length inch | 1.552 |
| Spotface to shoulder length mm | 39.4 |
| Minor Diameter Insert Carbide | 4C12H-25 |
| Minor Diameter Insert Super Cobalt | 452H-25 |
