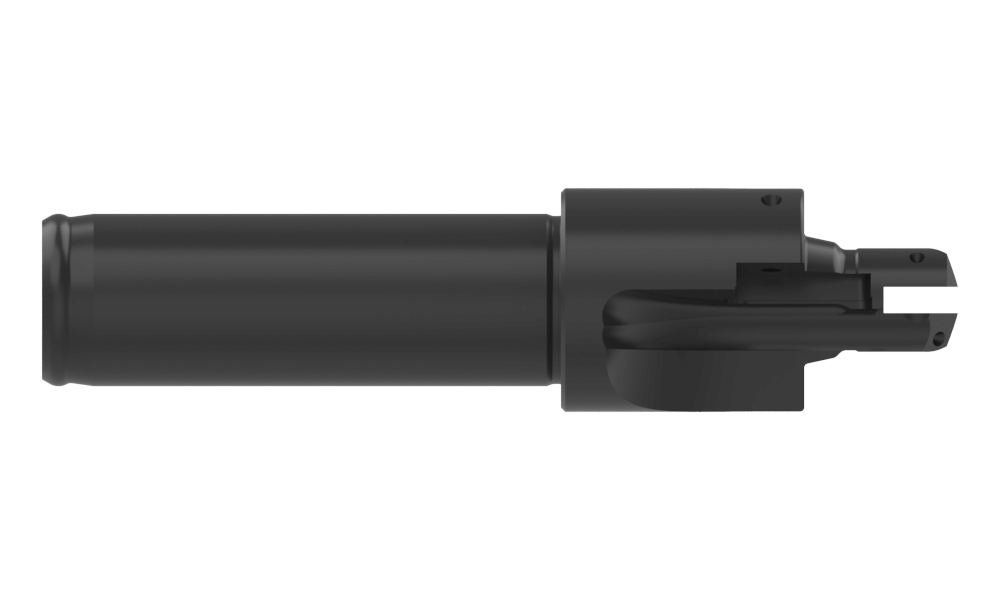

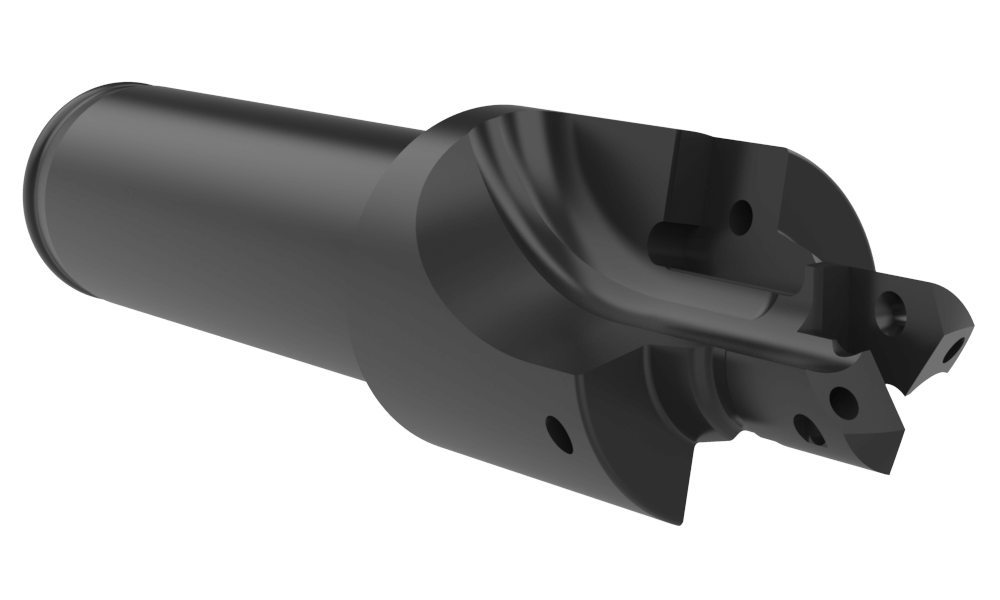

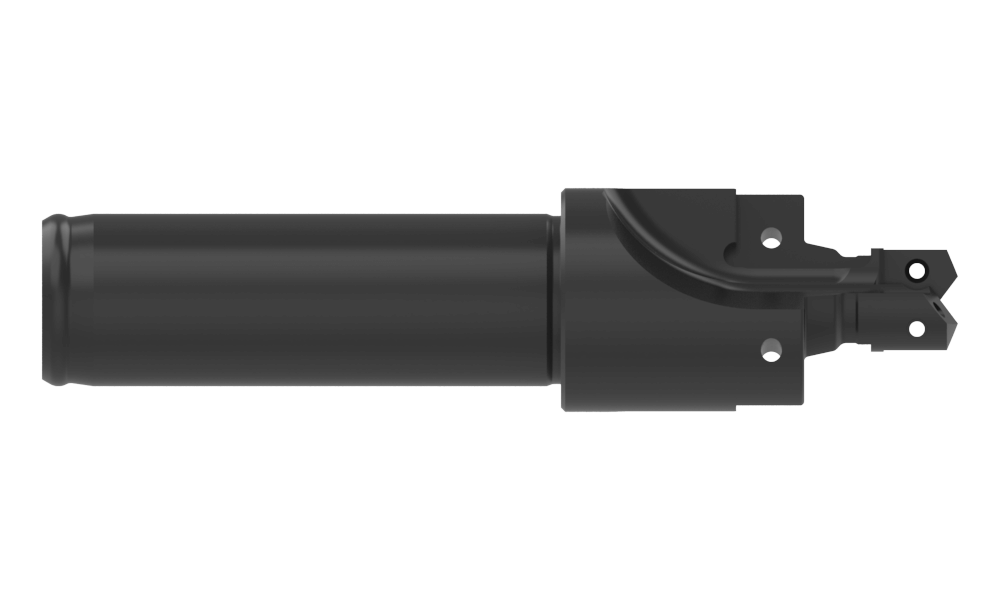

| Type of Product | Replaceable Port Form Body |
| Series | Y |
| Overall length inch | 3.18 |
| Overall length mm | 80.7 |
| Pipe tap rear mm | 1/16 |
| Shank diameter mm | 16 |
| Shank diameter inch | 0.63 |
| Shank length mm | 41.9 |
| Shank length inch | 1.65 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 9.8 |
| Pilot Diameter inch | 0.386 |
| Pilot length mm | 14 |
| Pilot length inch | 0.551 |
| Tool Reference Length mm | 45.1 |
| Tool Reference Length inch | 1.777 |
| Port Standard | SAE J-1926 |
| Tube Size | -4 |
| Port thread size | 7/16-20 UNF-2B |
| Spotface diameter mm | 21.3 |
| Spotface diameter inch | 0.84 |
| Seal angle | 12° |
| Seal angle diameter mm | 12.5 |
| Seal angle diameter inch | 0.49 |
| Seal angle length mm | 2.7 |
| Seal angle length inch | 0.106 |
| Spotface to shoulder length inch | 0.896 |
| Spotface to shoulder length mm | 22.8 |
| Minor Diameter Insert Carbide | 4C1YH-.386 |
| Minor Diameter Insert Super Cobalt | 45YH-.386 |
